PULSE Multi-analyzer System Type 3560-B/C/D/E – Installation and IDAe Hardware28

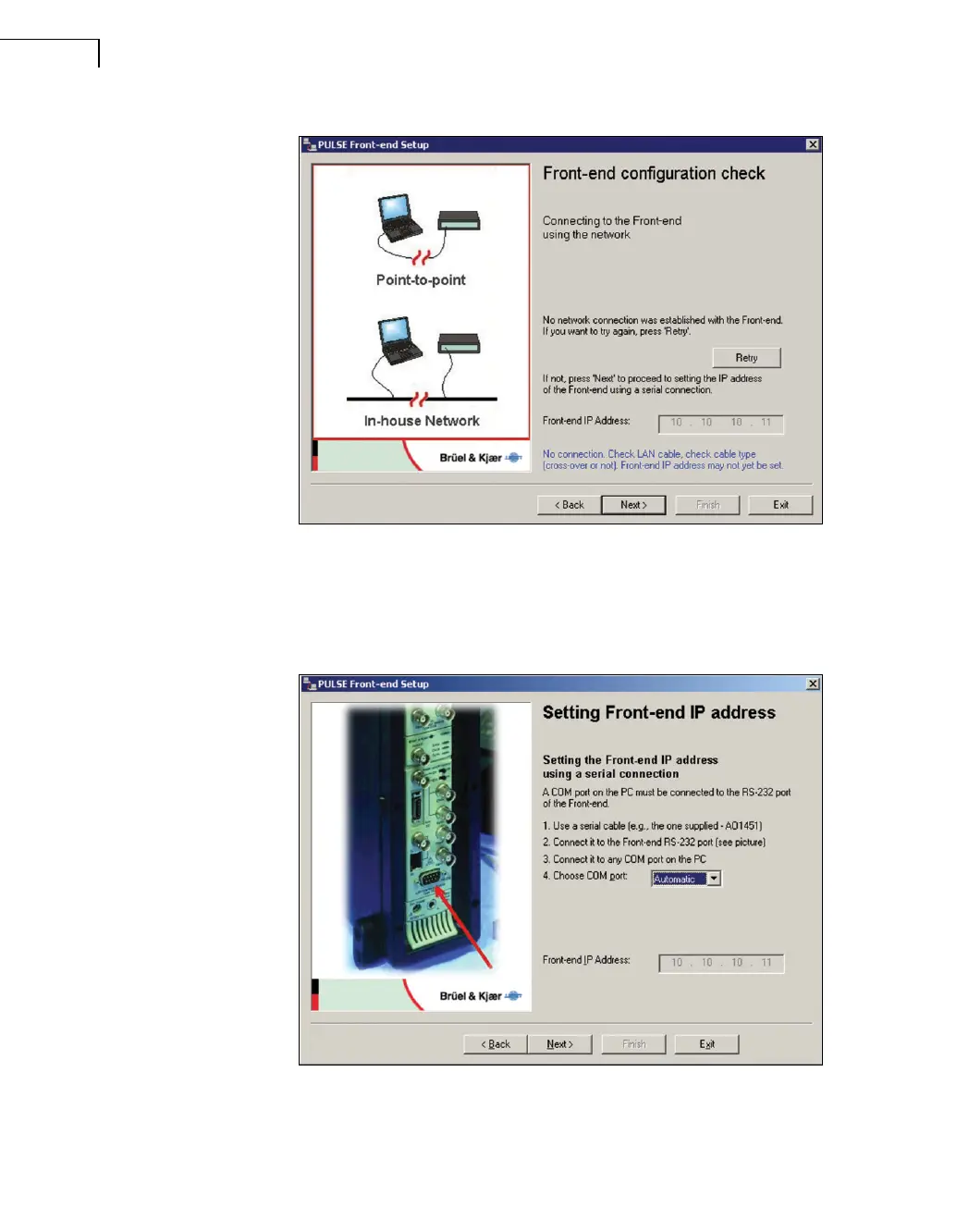

Fig.2.20
Connection attempt failed
If this is a new configuration or reconfiguration and you are in the process of changing the
front-end IP address, click Next. If you are connecting to an established configuration but
the connection has failed, check your cable connections and click Retry.
Clicking Next displays the Setting Front-end IP address page (Fig.2.21).
Fig.2.21
Setting up frame IP with
the RS−232 port and a
PC COM port
In order to physically update the IP address of the Type 3560-B/C/D/E frame, you must
connect the supplied cable AO-1451 between the RS−232 port on the frame’s LAN Inter-
face Module (the controller module) and a COM port on your PC. Fig.2.21 shows the
