7.4.5 Adjust the Belt Tension at the TB
Normally the belt is already tensioned. Check if the belt is loose. Turn
on the belt drive if the belt is running in the middle for at least 1min.

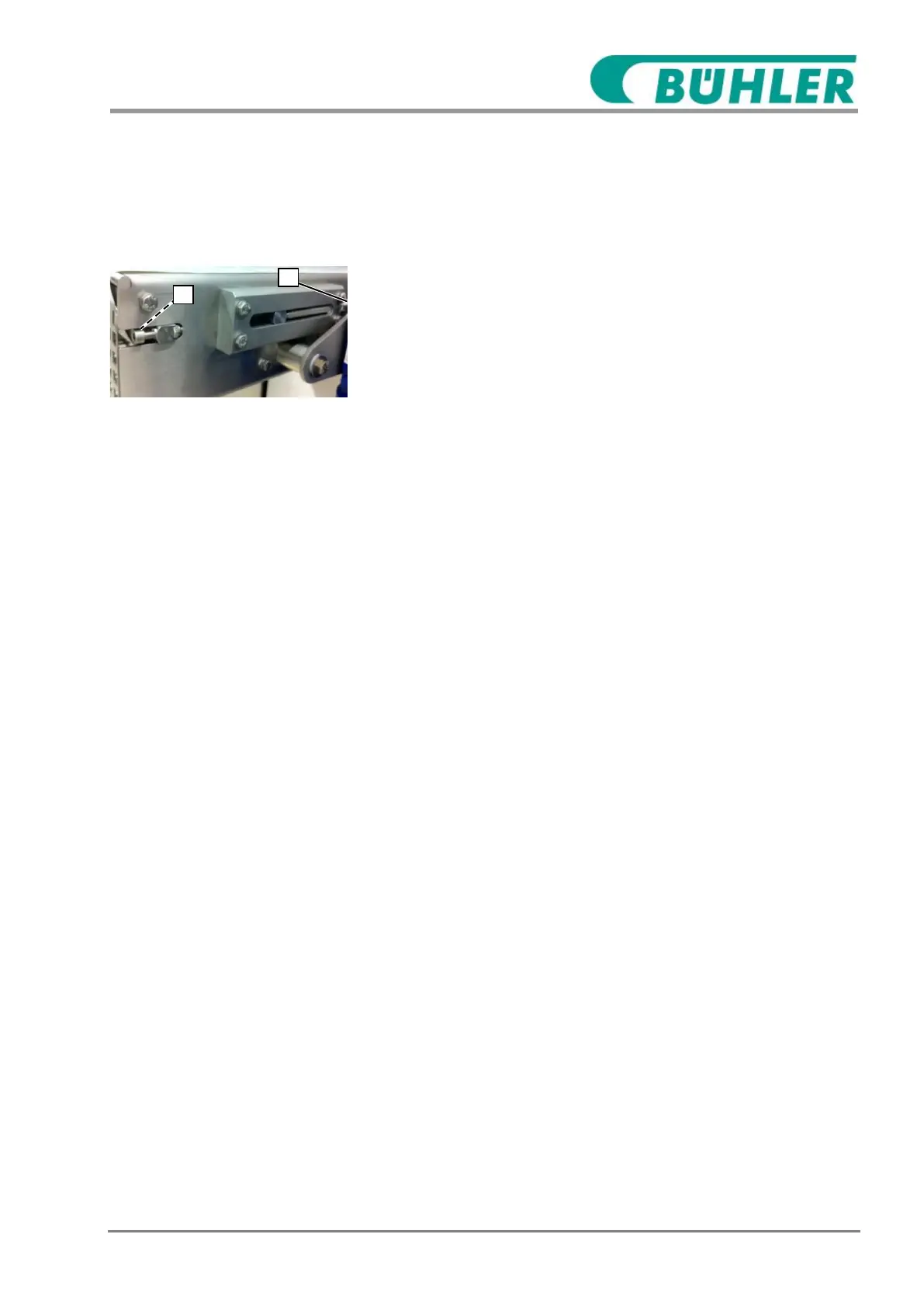

Fig.: Belt adjusting and belt tensioning
Adjusting the working position
1. Turn the adusting screws (1) and monitor if the belt is moving in
the correct direction.
2. Turn the tensioning screws (2) to tension the belt. Be sure that
both sides are parallel.
1
2
