7.5 Adjusting the Knife Follow Movement with
Eccentric Control
The length and belt speed is a recommendation and
depends on product specifications. If the the cut is not
perfect, try different bolt postions!
Change the plugging position of the bolts
1.
Switch the machine off and secure against restarting.

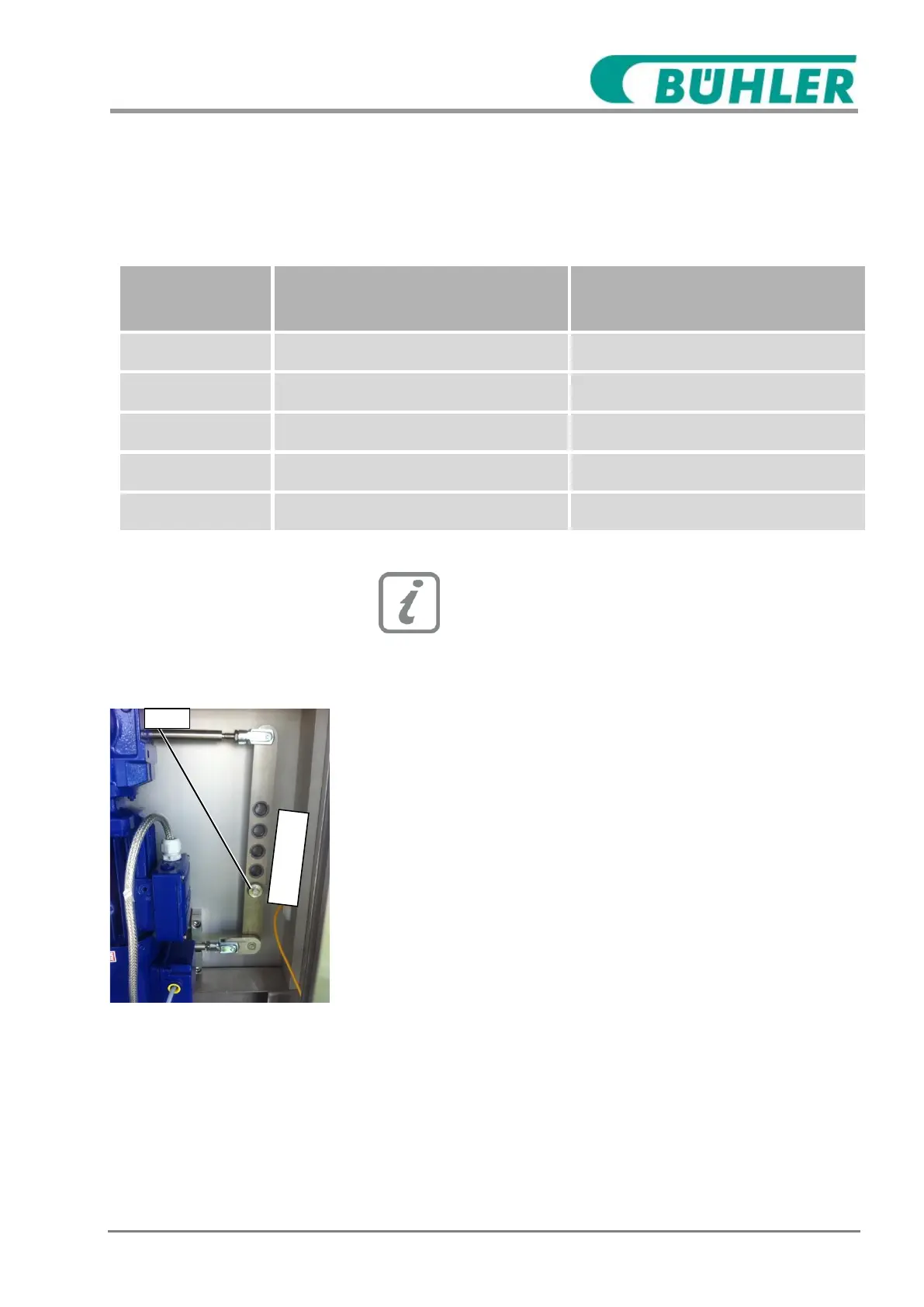

Fig. 27: Plug-in position bolts
2. Demount encasement at the drive side.
3. Loosen screw (S) and pull out bolt (B).
4. Plug bolts (B) into suitable position as shown in the chart above.
5. Tighten screws (S).
6. Mount encasement.
.
Bolt position
"B"
Belt speed in operating mode
„clocked (start / stop)“
Cutting length in operating
„continuous“
1
0,8 - 1 m/min
40 - … mm
2
1 - 1,2 m/min
29 - 40 mm
3
1,2 - 1,5 m/min
18 – 29 mm
4
1,5 - 1,7 m/min
12 – 18 mm
5
1,7 – 2,4 m/min
5 – 12 mm
S/B
1
2
3
4
5
