Buhler SnackFix - Cutting Machine SZ 100 M;TB

Design and Function
Component Description
SnackFix 2016-08 45
4.2.5 Cutting machine SZ 100 M/TB

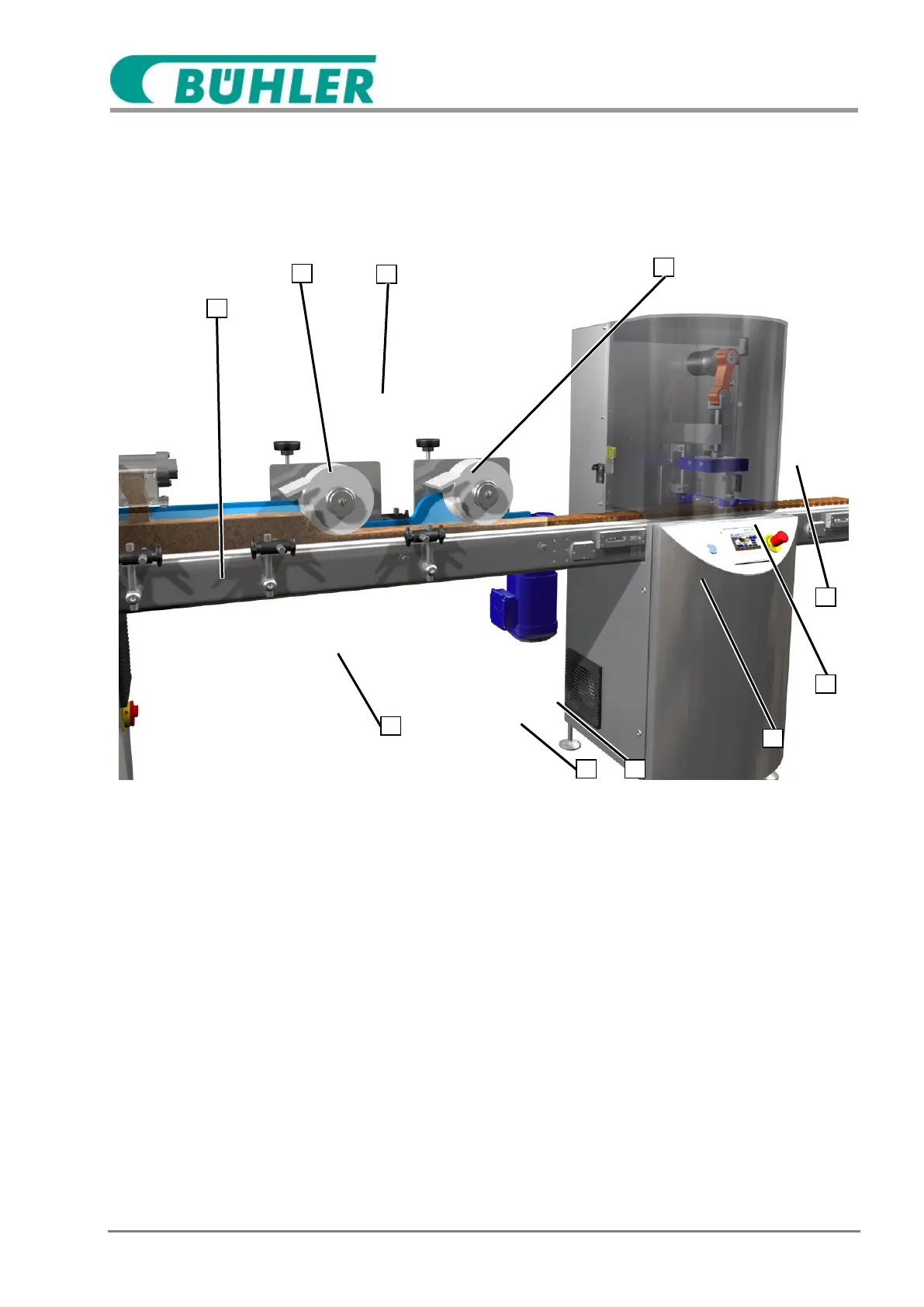

Fig. 12: Cutting unit
1
Conveyor belt I
2
Equalizing Unit I
3
Equalizing Unit II
4
Cutting device
5
Hinged belt edge
6
Drawer
7
Drive motor for transport belt
8
Machine foot
9
Rolls
10
Belt clamping device
Different parameters such as the belt speed can be adjusted at the
control panel which is installed at the machine.
The strands that are to be cut are conveyed to the transport belt. The
transport belt takes over the strands and conveys them to the cutting
Short description
8
1
2
3
5
9
4
6
10
7
