Belt scrapers are installed at the bottom side of the transport belt for
keeping the belt clean. The scrapers must always be adjusted in that
way that they impose a slight pressure on the belt surface. Displays
and Controls
4.2.6 Control Panels
The following machines are equipped with control panels:
 Mass preparation unit
 Cutting unit

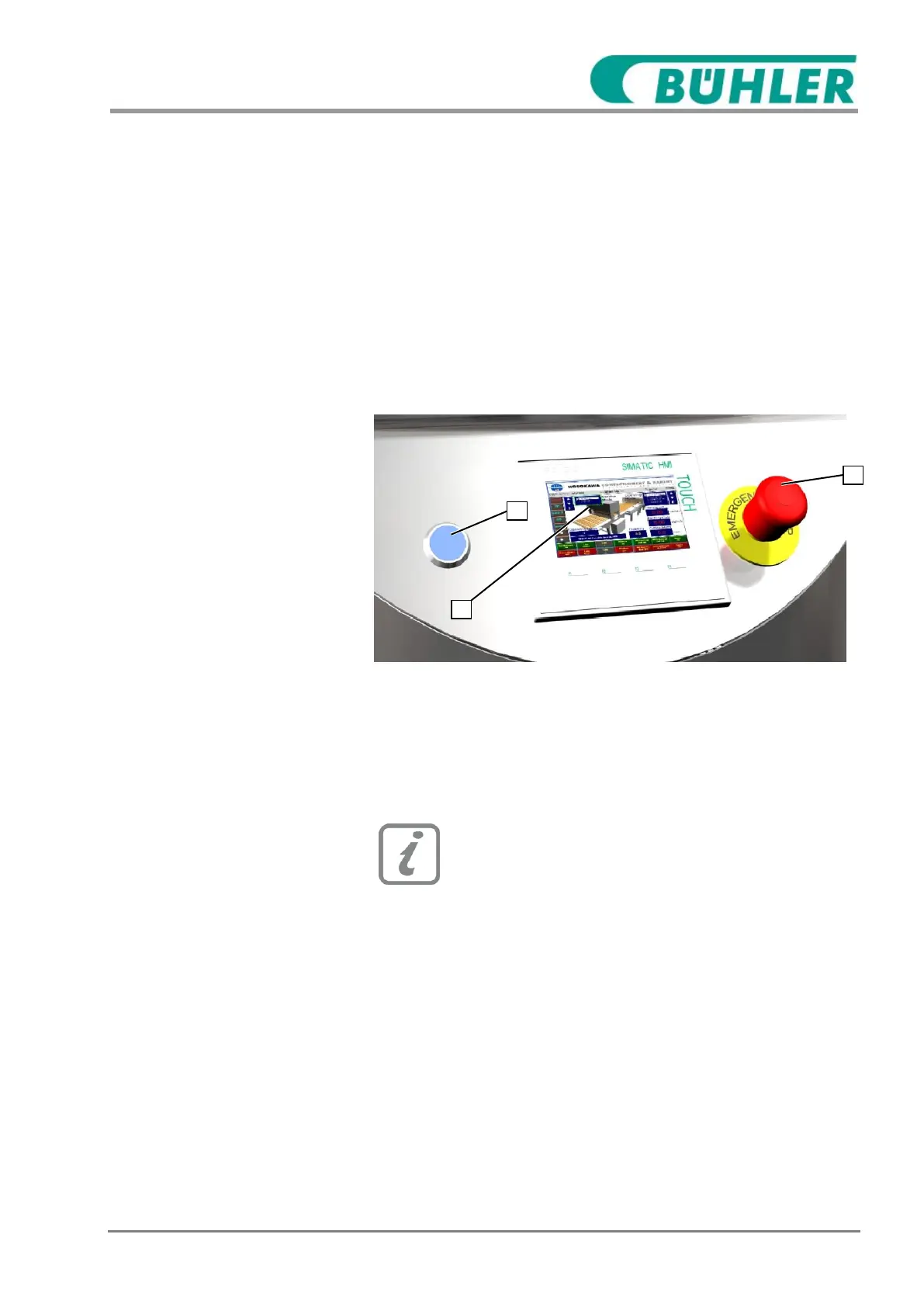

Fig. 16: Control panel
1
Display
2
Emergency stop button
3
Illuminated push button [RESET] for acknowledging errors
For detailed information regarding operation, please see
the separate operating instructions of the control panel
(  Chapter „Operator manual“ in the documentation
file).
Belt scraper
1
3
2
