Lubricate the machine
Maintenance Plan
SnackFix 2016-08 89

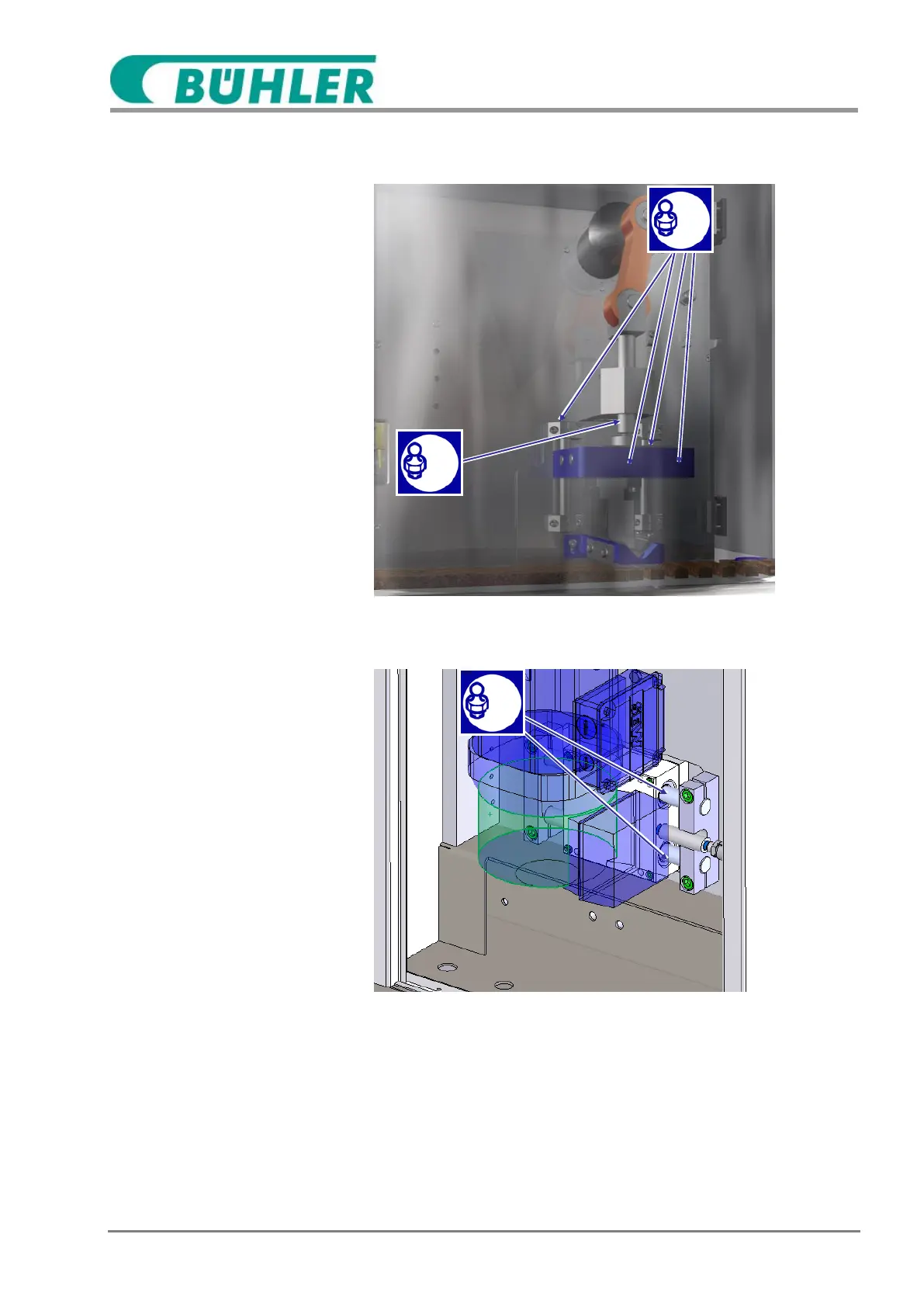

Fig. 33: SZ 100 M/TB – guiding of plunger / of knife carriage
Fig. 34: SZ 100 M/TB – guiding of follow carriage
2
15
1x
16
4x
17
2x
