Burkert 8626 - Assembly, Installation and Commissioning; Dimensional Drawings

24 - MFC/MFM
english

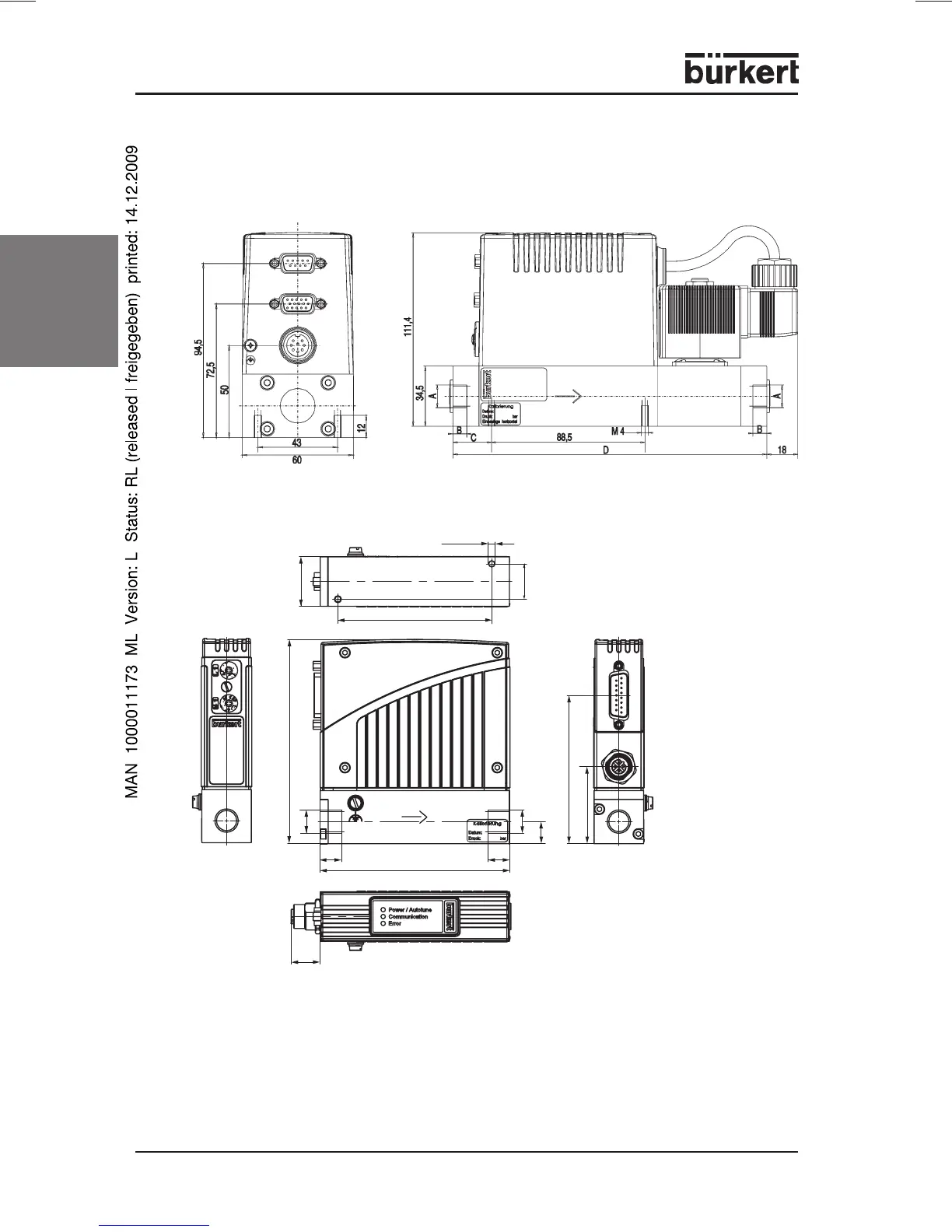

Dimensional drawings
Fig.: Type 8626 / 8006 MASS FLOW INLINE (version with proportional valve 6022 and standard sensor body)
ASSEMBLY, INSTALLATION AND COMMISSIONING
Fig.: Type 8710 / 8700 MASS FLOW CAPILLARY / Type 8711/8701 MASS FLOW CMOSens
®
A
12
107
A
12
12,5
115,5
20
2 x M
4
- 6 deep
87
28
84
43,5
Bus version
Bus version
16,5
Bus version
