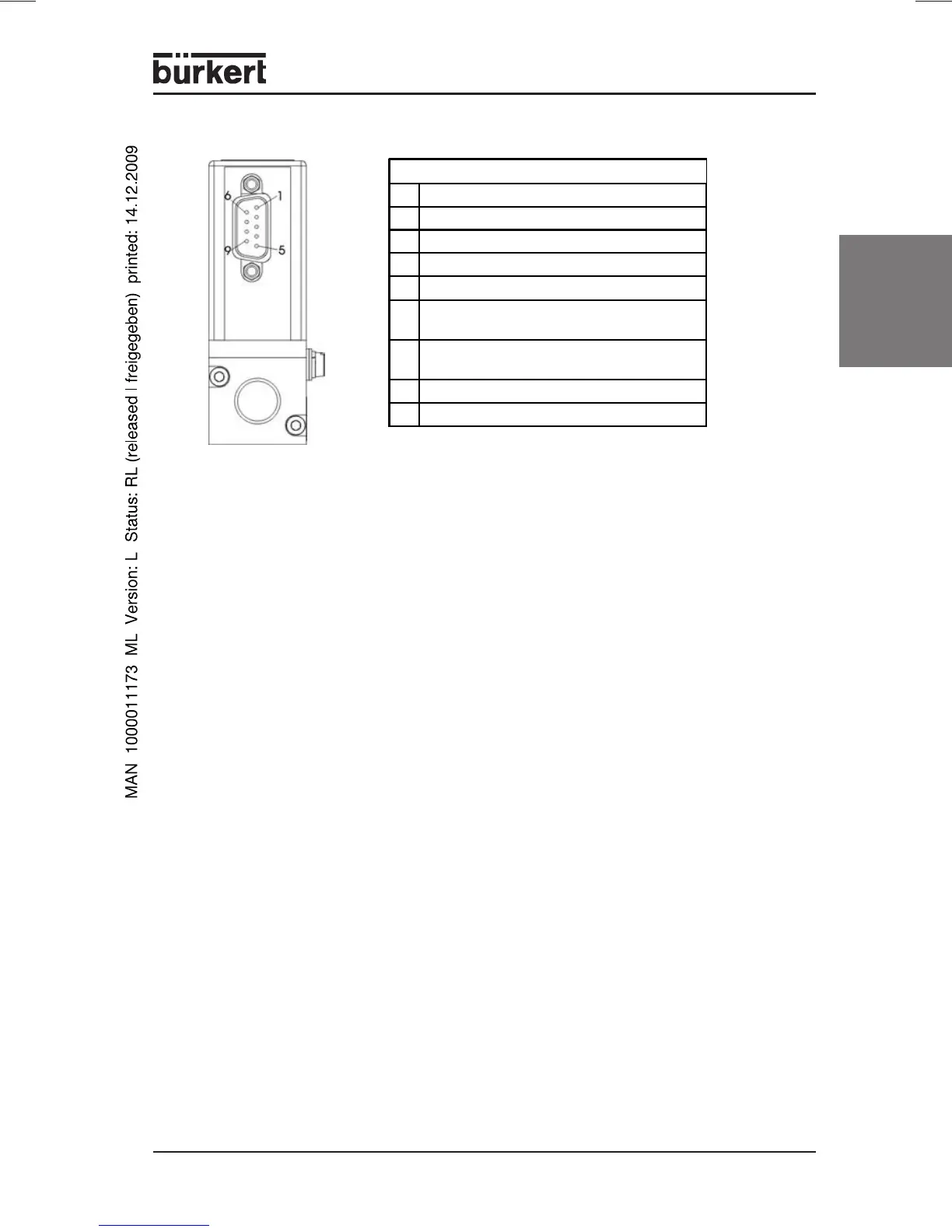

Connection configuration Type 8713 / 8703
9-pin sub-D plug
1
Binary input (related to GND PIN 2)
2
GND
3
Power supply +24 V DC
4
Relay, C contact
5
Relay, NC contact
6
TX+ (RS485-Y)
bridge with pin 9 at Half-Dublex
7
TX- (RS485-Z)
bridge with pin 8 at Half-Dublex
8
RX- (RS485-B)
9
RX+ (RS485-A)
