Burkert 8626 - Connection Configuration Type 8710; 8700

32 - MFC/MFM
english

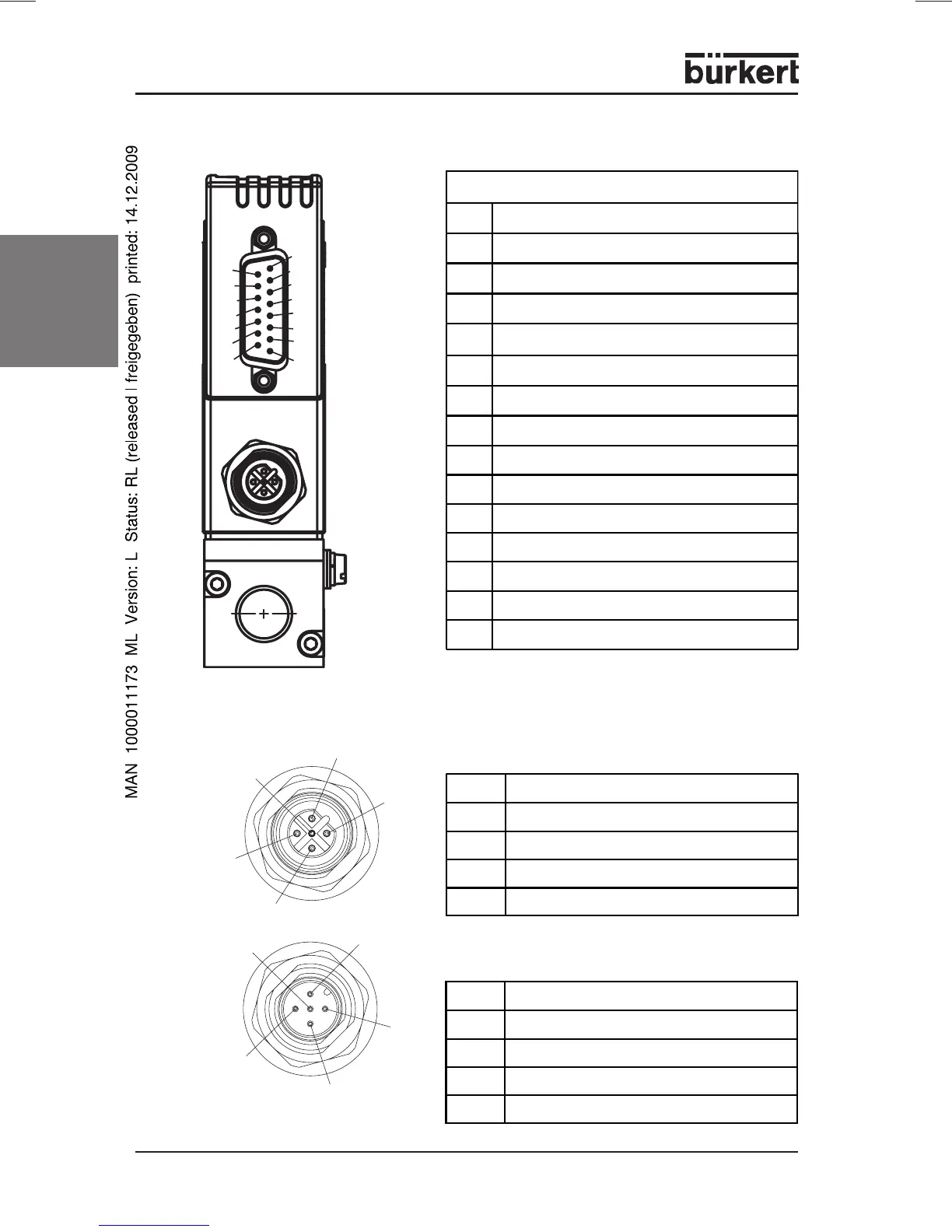

Connection configuration Type 8710 / 8700
15-pole Sub-D plug
1
Relay output - NC contact
2
Relay output - NO contact
3
Relay output - C contact
4
GND 24 -V-supply and binary inputs
5
24 V supply +
6
8 V output (For factory use only!)
7
Setpoint input GND
8
Setpoint input +
9
Process value output GND
10
Process value output +
11
DGND (for RS232)
12
Binary input 1
13
Binary input 2
14
RS232 RxD (without driver)
15
RS232 TxD (without driver)
DeviceNet - plug M12
1 Shield
2VDD
3DGND
4CAN_H
5CAN_L
1VDD
2 RxD / TxD - N (A-line)
3DGND
4 RxD / TxD - P (B-line)
5 Shield
Profibus DP-socket B-encoded M12
(DPV1 max. 12 Mbaud)
Only with fieldbus
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
2
3
4
1
5
5
2
1
4
3
