Burkert 8692 - Connection Diagram Type 8693; Operating Voltage (Round Plug M12, 4-Pole); Bus Connection (Round Socket;Plug M12, 5-Pole)

129
Type 8692, 8693
english
PROFIBUS-DP

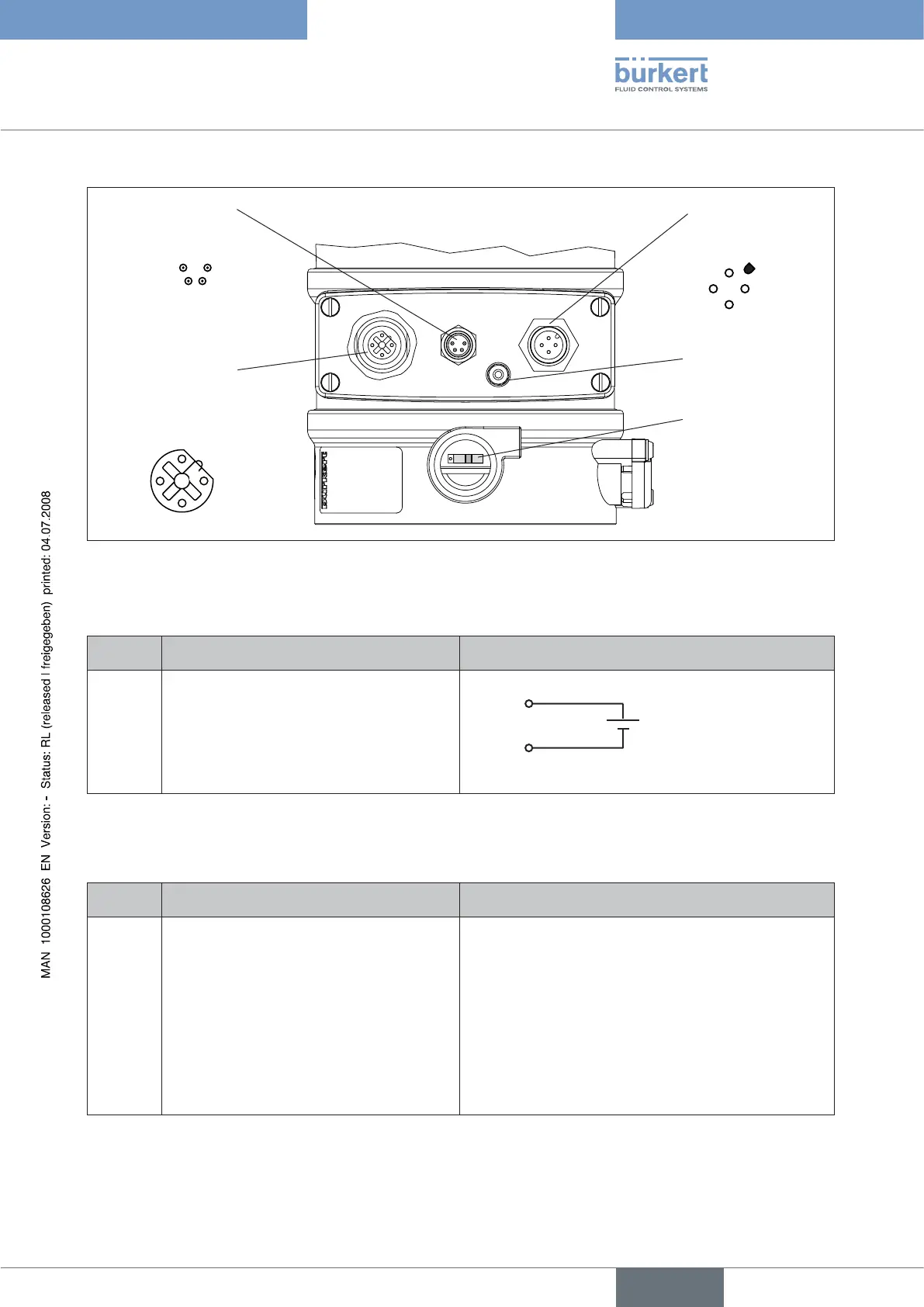

5.2 Connection Diagram Type 8693
Plug M8
4-pole
(process actual value)
Plug M12
4-pole
(operating voltage)
Socket M12
5-pole
(inversly-coded)
(PROFIBUS-DP)
1
2
3
4
1
2
3
4
1
2
3
4
5
Technical Earth
(TE)
Switch
(behind the screw)
Fig. 3: Connection Profibus 8693
5.3 Operating Voltage (Round Plug M12, 4-pole)
PIN Configuration External circuit
1 + 24 V
1
3
24 V DC ± 10 %
max. residual ripple 10 %
2 not used
3 GND
4 not used
5.4 Bus Connection (Round Socket/Plug M12, 5-pole)
PIN Signal External circuit
1 VP+5 Supply the terminating resistors
2 RxD/TxD-N
Received/transmitted data -N, A-line
3 DGND Data transmission potential (earth to 5 V)
4 RxD/TxD-P Received/transmitted data -P, B-line
5 Shielding Shielding / protective earth
