12.1 Setting up the Process Image (Mapping)
The AUTOMAP function is used to assign the input data of the devices specified in the scan list to the process image of the
DeviceNet master/scanner.
Our example of the assignment is indicated in Fig. 11.
For example the input process values of the positioner with address 3 are assigned to the internal addresses of the scanner as
follows:
Actual position I:1.1
Nominal position I:1.2
Error I:1.3
Therefore, if the actual position of the positioner with address 3 is to be read from a control program, this is done by
accessing I:1.1.

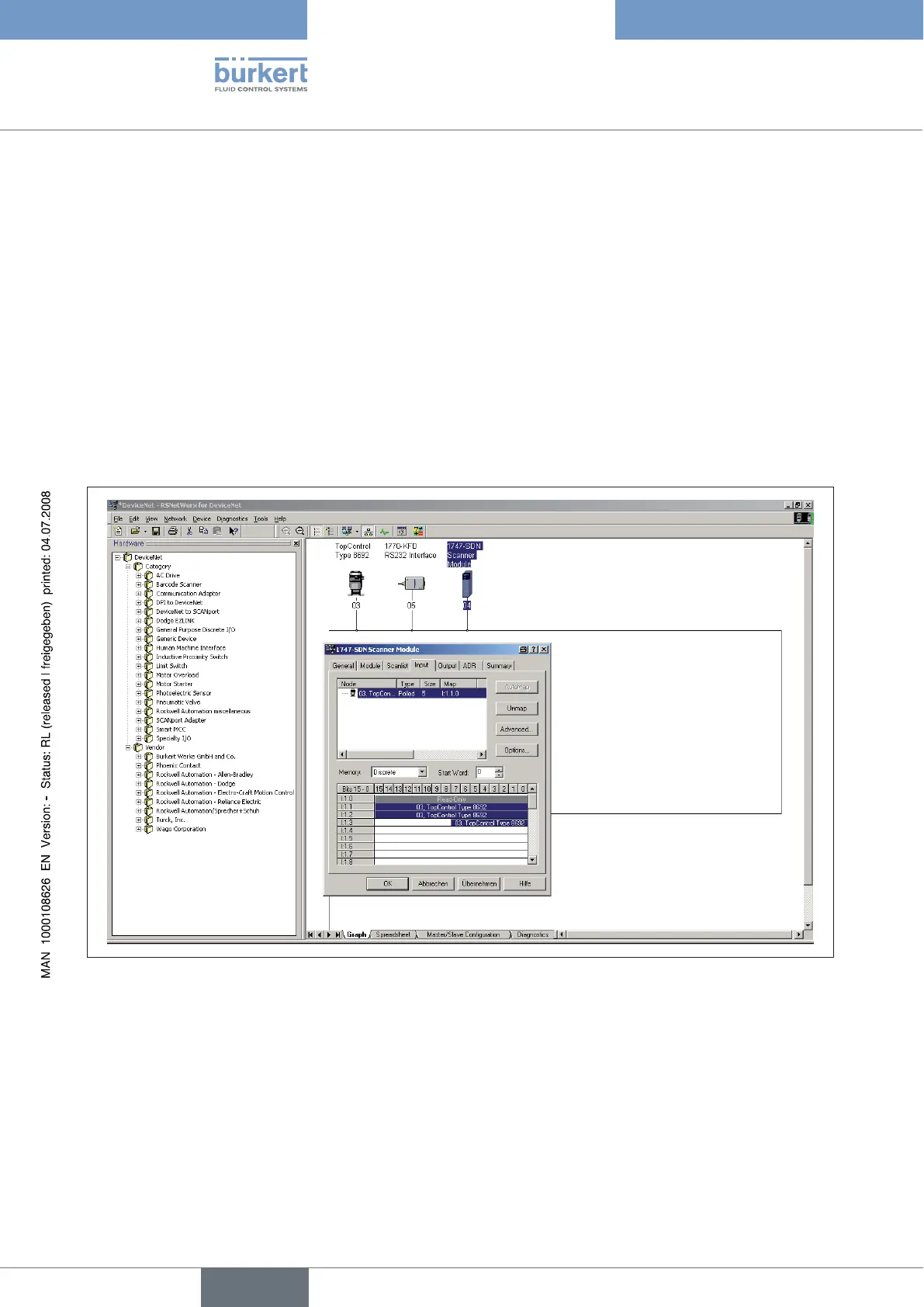

Fig. 11: Screenshot - DeviceNet - Fig. 5
