154
Type 8692, 8693
english
DeviceNet
10.4 Offline Parameterisation of the Device
Devices can also be parameterised online. In doing so, you can also select whether only individual parameters (single) or all
parameters (all) of a group are read from the device (upload) or are loaded into the device (download).
It is also possible to transfer individual parameters or all parameters of a group cyclically in monitor mode. This may be helpful
particularly for start-up purposes.
Fig. 9 indicates the group of the process values or diagnosis information. If Monitor is actuated, these values are updated cycli-
cally. However, Explicit Messages are used for this cyclical access (no I/O connections).

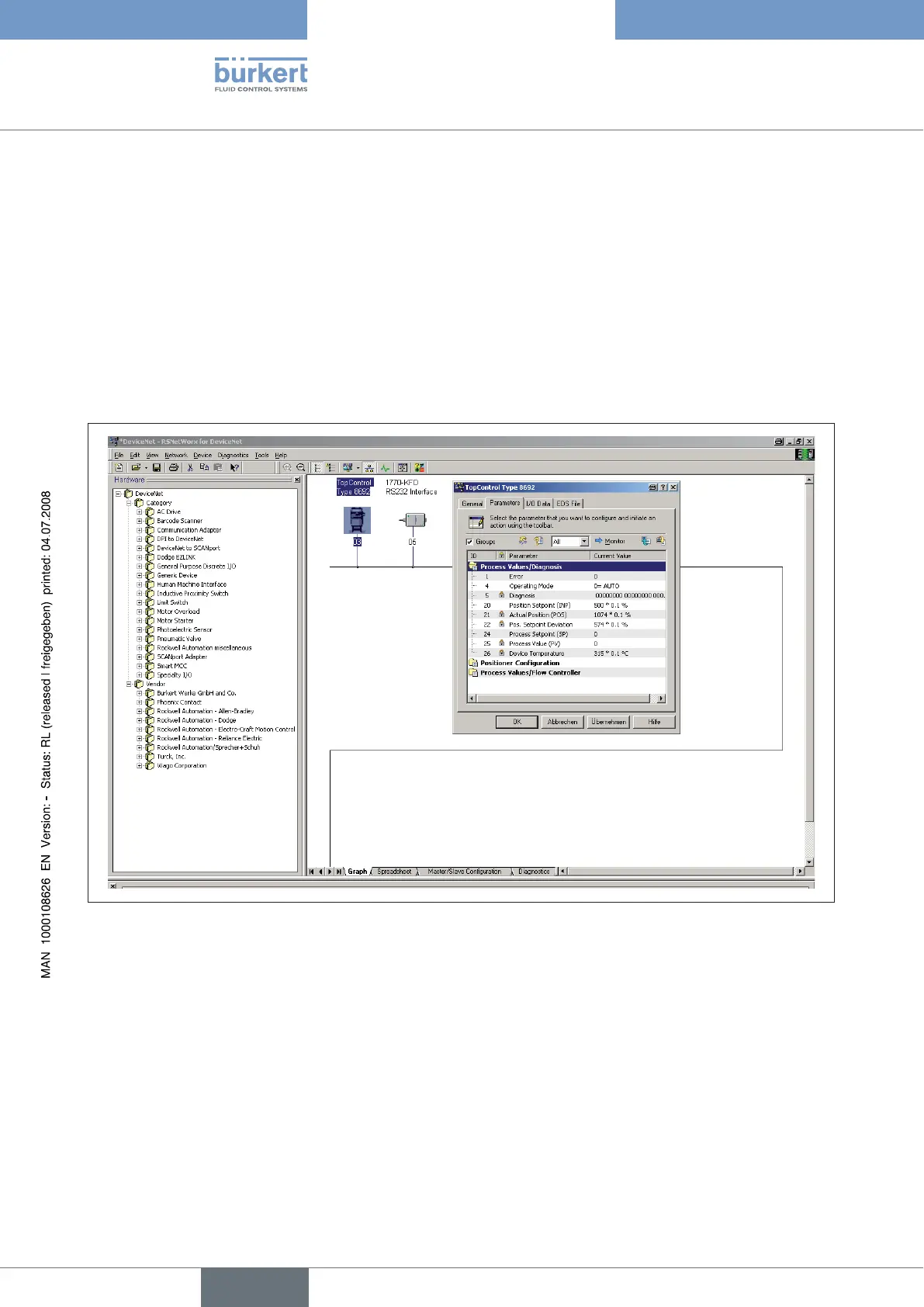

Fig. 9: Screenshot - DeviceNet - Fig. 3
