Burkert 8692 - Example 2 for a Position Controller (Type 8693): Transfer of Several Process Values

138
Type 8692, 8693
english
PROFIBUS-DP
10.2 Example 2 for a Position controller (Type 8693):
Transfer of several process values.
Procedure as in example 1.
pull the slave Type 8692 / 8693 by Drag & Drop to the bus line.
→

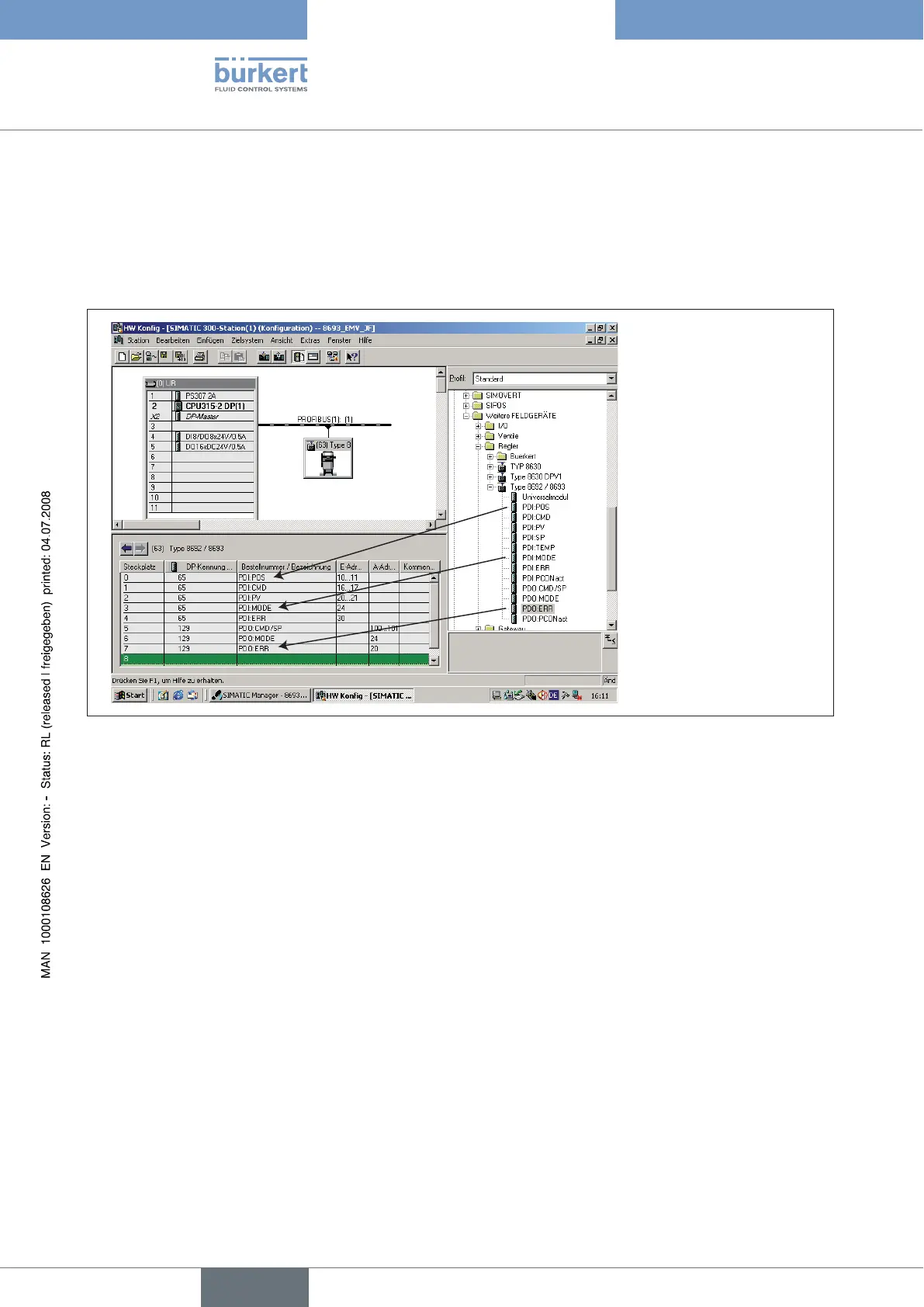

Fig. 9: Screenshot of position controller Fig. 3
pull the modules into the slave Type 8692 / 8693 by Drag & Drop. →
