48
Type 8692, 8693
english
Installation
6 INITIAL START-UP
This section enables you to start up the positioner quickly in order to perform a function check. Additional functions which
are not required are not dealt with in this context.
6.1 Safety Instructions
DANGER!
Danger – high pressure in the equipment!
There is a serious risk of injury when reaching into the equipment.
Before loosening the lines and valves, turn off the pressure and vent the lines.•
WARNING!
Danger - improper installation!
Improper installation may result in injuries as well as damage to the device and the area around it.
Fluid and electrical installations may be carried out by authorized technicians only and with the appropriate tools!•
Danger due to unintentional activation of the equipment!
Unintentional activation of the equipment during installation may result in injuries and damage.
Take appropriate measures to prevent the equipment from being unintentionally activated.•
6.2 Installation
Before start-up, carry out fluid and electrical installation of the positioner and valve. →
When the operating voltage is applied, the positioner is operating and is in the AUTOMATIC operating state.
6.3 Specifying the Basic Settings
The basic settings of the positioner are implemented at the factory.
Before the positioner can undergo a function check, the unit input signal (standard signal) must still be set following installation
of the device and the X.TUNE function run to adjust the device to local conditions.
To specify the basic settings, switch from the process operating level to the configuration level.
Hold down the left selection key (MENU) for approx. 3 seconds (countdown: two bars converge on the display). Then the
→
main menu (MAIN) is indicated on the display together with the menu options which can be individually marked via the ar-
row keys and then selected via the right selecion key (ENTER).
MENU INPUT CMD MANU
POS
%
XXX
Up arrow key
Description of
configuration of
the keys
Left selection
key
Right selection key
Display
Down arrow key

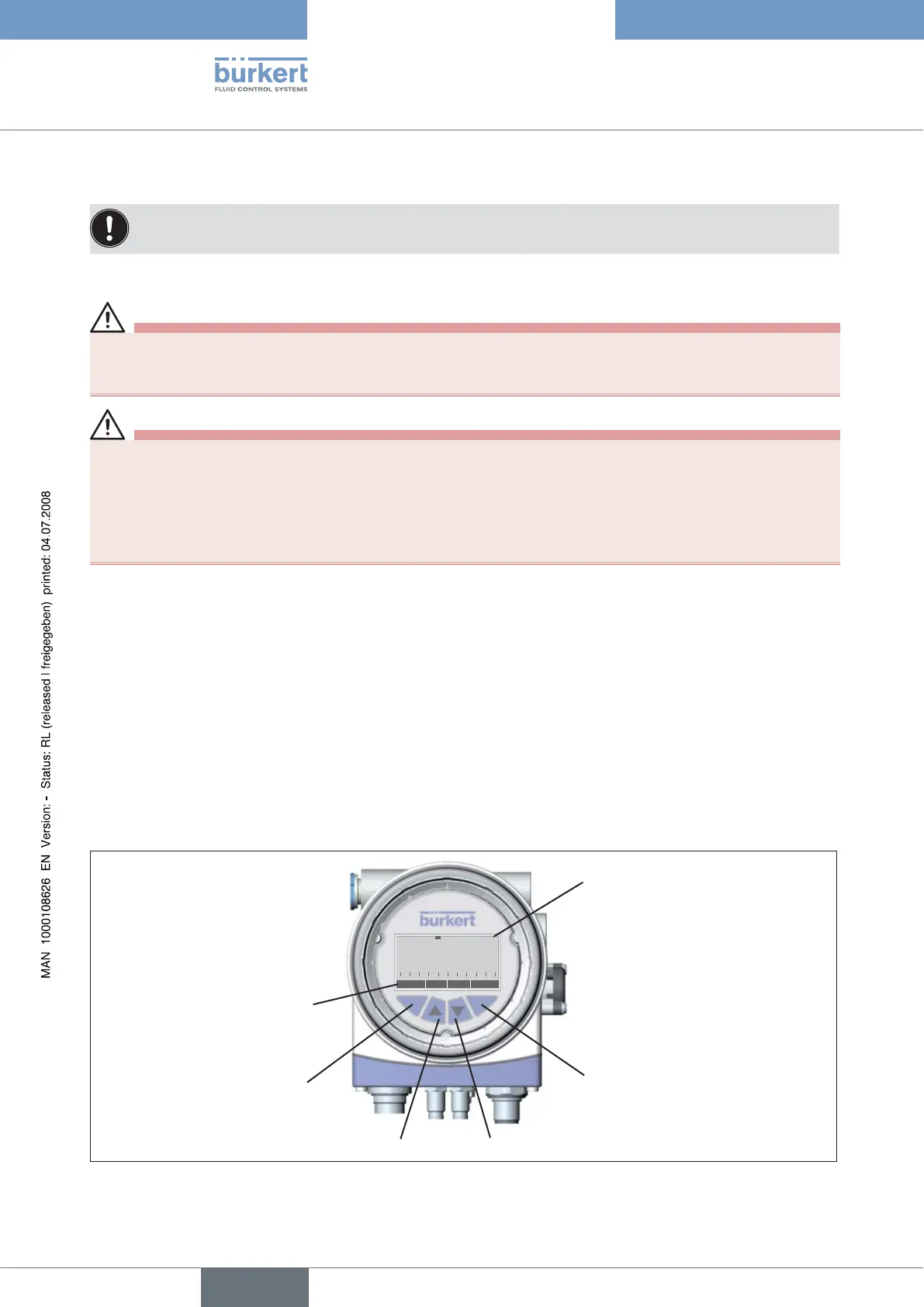

Fig. 5: Description of the control module
