Burkert 8692 - OUTPUT (Option) Configuring the Outputs

82
Type 8692, 8693
english
Start-up, operation
position controller Type 8692
4.3.13 OUTPUT (option)
Configuring the outputs
The OUTPUT menu option is only indicated in the selection menu of ADD.FUNCTION if the positioner has outputs
(option).
The outputs can be used for the following feedback signals:
Analogue output: Feedback signal of the current position (POS) or of the set-point value (CMD) to the control centre.
Binary outputs: Alarm output for excessively large control deviations of the position controller or
for the output of the current position with respect to a specified limit position (> or <) or
for the output: actuator in safety position or
for the output: sensor break or
for the output: operating state (AUTOMATIC / MANUAL).
The positioner which has the outputs option is available in the following versions:
one analogue output•
one analogue and two binary outputs•
two binary outputs•
According to the version of the positioner only the possible adjustable outputs (ANALOGUE, ANALOGUE + BIN 1 + BIN 2
or BIN 1 + BIN 2) are indicated in the OUTPUT menu option.

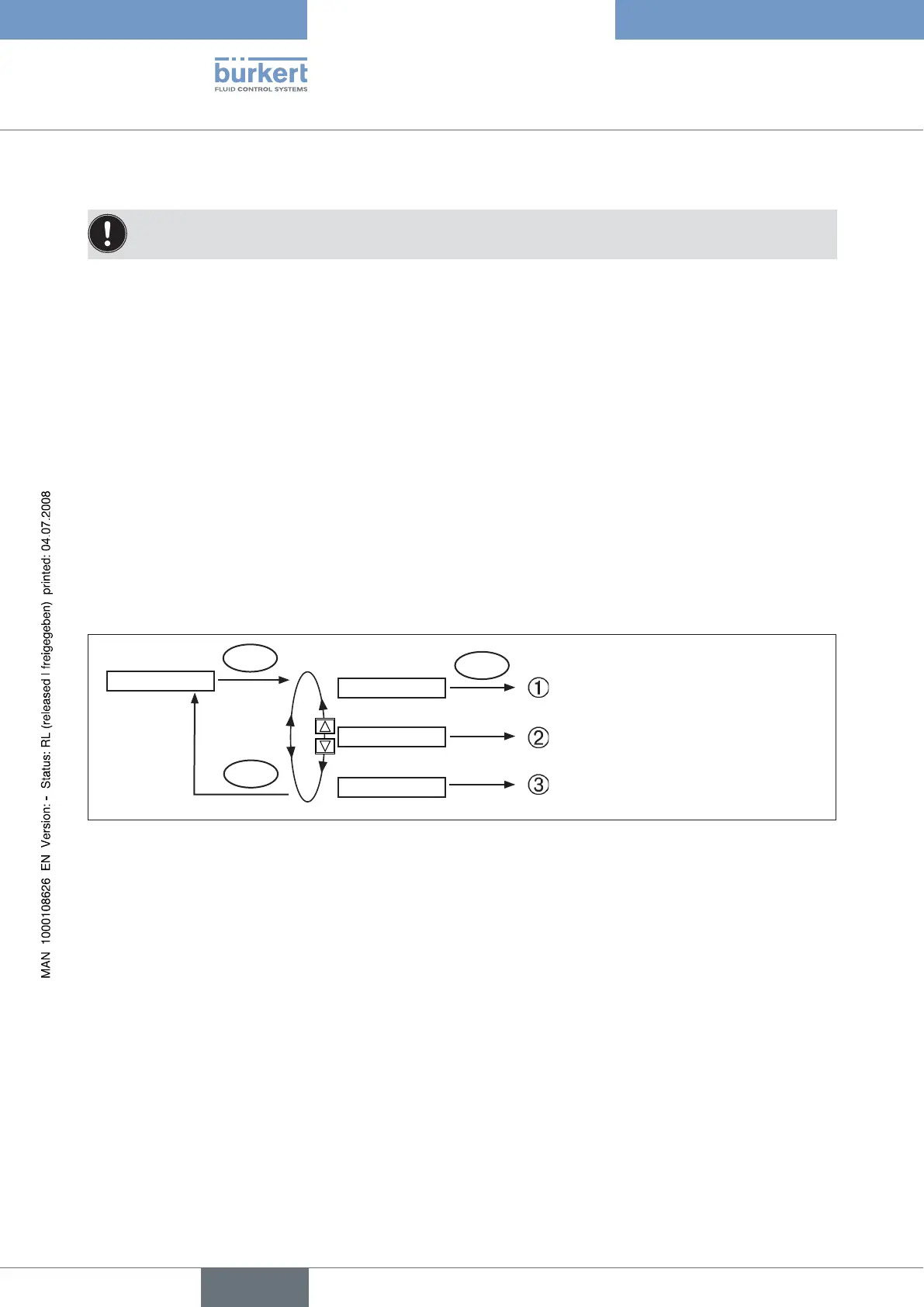

OUTPUT
OUT ANALOG
OUT BIN2
EXIT
ENTER
ENTER
Configuration of the analogue output
OUT BIN1
Configuration of the binary output 1
Configuration of the binary output 2
Fig. 33: Operating structure OUTPUT
