Burkert 8692 - KP - Amplification Factor of the Process Controller; TN - Reset Time of the Process Controller; TV - Hold-Back Time of the Process Controller

98
Type 8692, 8693
english
Start-up, operation
process controller Type 8693

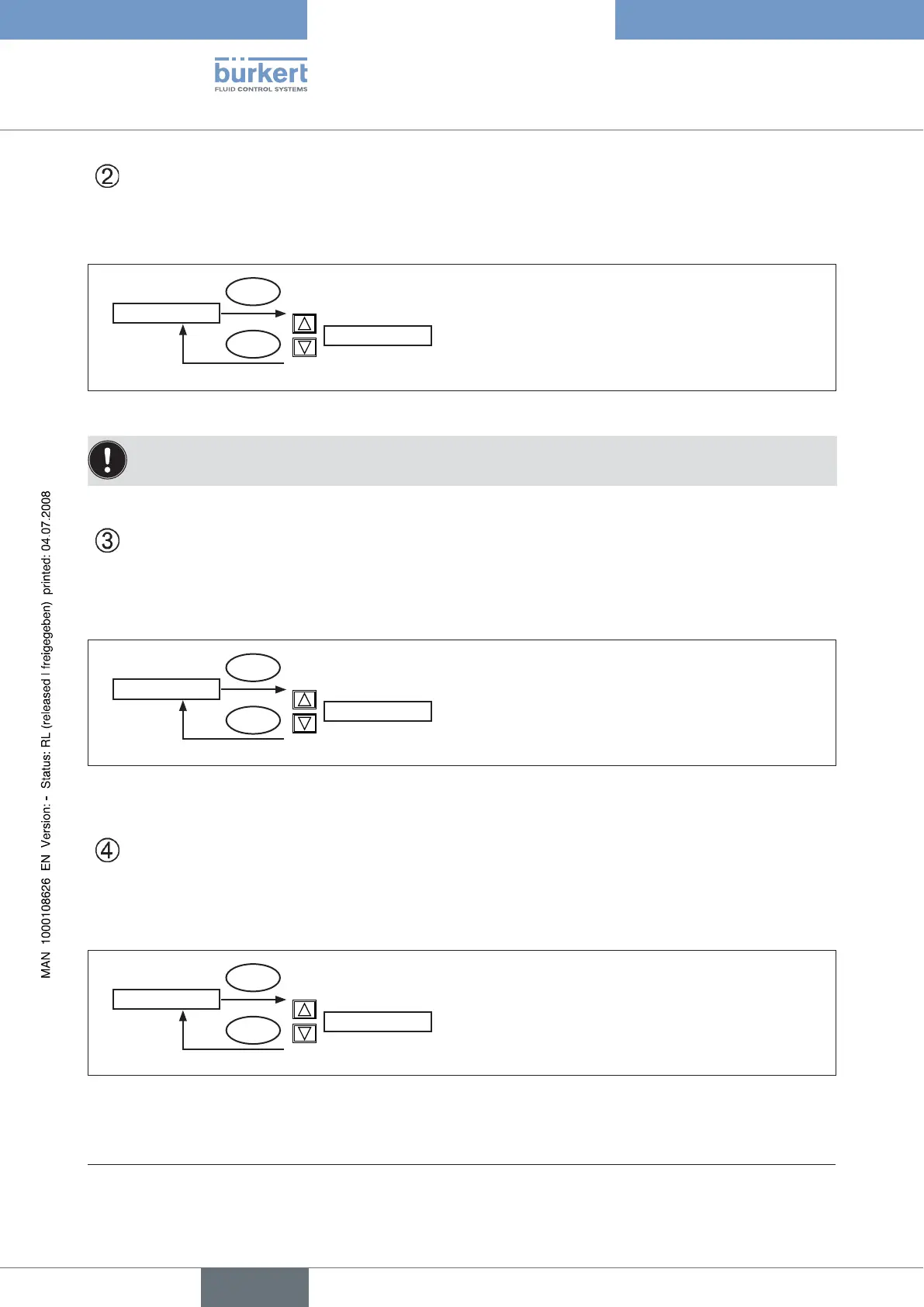

KP - Amplification factor of the process controller
The amplification factor specifies the P-contribution of the PID controller.
Factory setting: 1.00
+
←
KP 1.00
KP 1.00
INPUT
OK
*
Adjustment range:
0 – 99.99
(% / set unit)
Fig. 4: Operating structure P.CONTROL - KP
The KP amplification of the process controller refers to the scaled unit.
TN - Reset time of the process controller
Specifies the I-contribution of the PID controller.
Factory setting: 999.9 s
+
←
TN 999.9
TN 0.5
INPUT
OK
*
Adjustment range:
0.5 – 999.9 s
Fig. 5: Operating structure P.CONTROL - TN
TV - Hold-back time of the process controller
Specifies the D-contribution of the PID controller.
Factory setting: 0.0 s
+
←
TV 0.0
TV 0.0
INPUT
OK
*
Adjustment range:
0 – 999.9 s
Fig. 6: Operating structure P.CONTROL - TV
* If the sub-menu is left by pressing the selection key on the left (ESC), the value remains unchanged.
