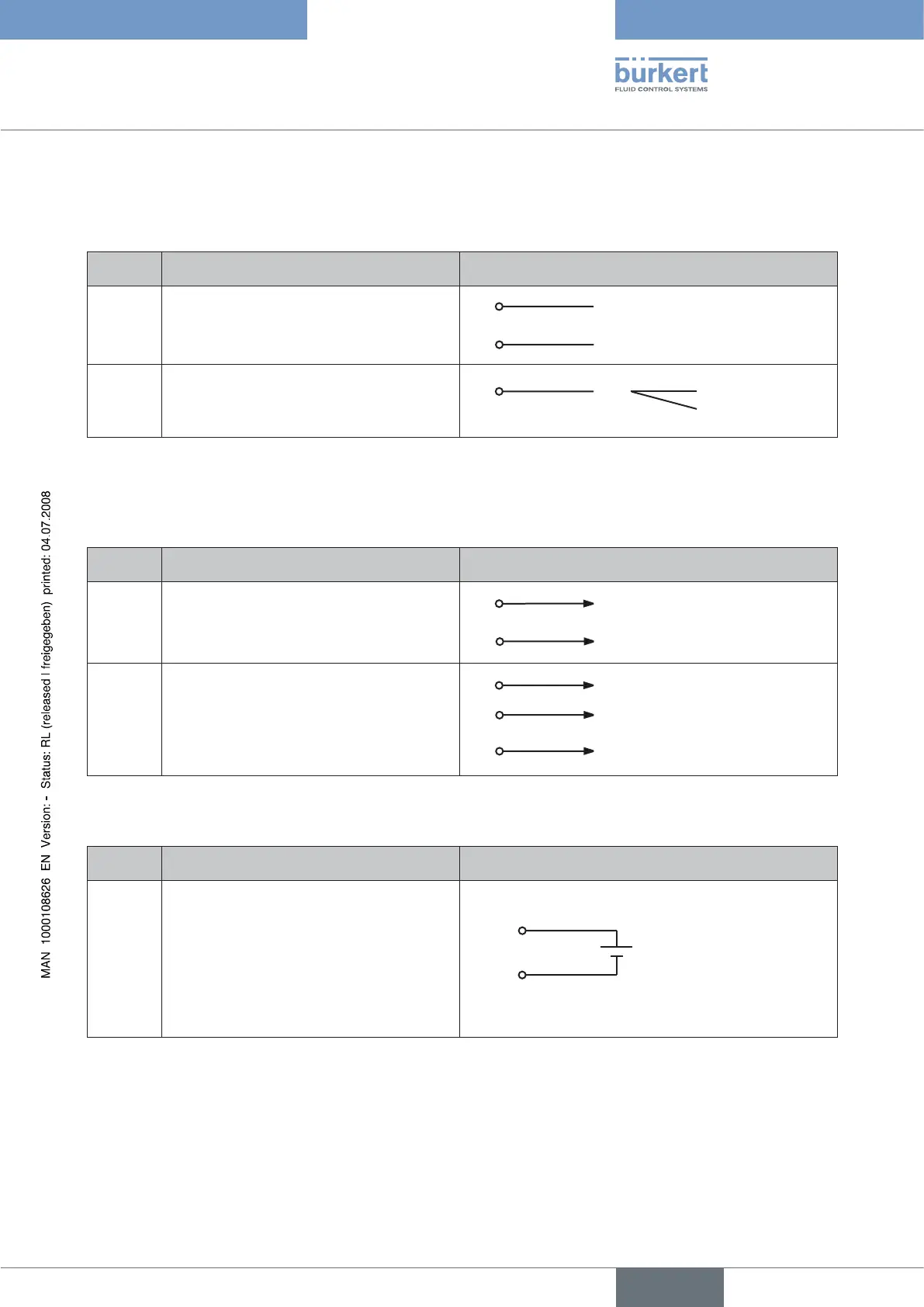

4.2 Connection of the Position Controller Type 8692
4.2.1 Input signals of the control centre (e.g. PLC) - circular plug M 12 - 8-pole
Pin Configuration external circuit / signal level
8
7
Set-point value + (0/4 – 20 mA or 0 – 5 / 10 V)
Set-point value GND
8
7 GND
+ (0/4 - 20 mA or 0 - 5 / 10 V)
completely galvanically isolated
1 Binary input + (only optional)
1 + 0 - 5 V (log. 0)
10 - 30 V (log. 1)
4.2.2 Output signals to the control centre (e.g. PLC) - circular plug M 12 - 8-pole
(required for Analogue output and/or Binary output option only)
Connect the pins according to the design (options) of the positioner. →
Pin Configuration external circuit / signal level
6
5
Analogue position feedback +
Analogue position feedback GND
6
5 GND
+ (0/4 - 20 mA or 0 - 5 / 10 V)
completely galvanically isolated
4
3
2
Binary output 1
Binary output 2
Binary outputs GND
4
3
GND
24 V / 0 V
2
24 V / 0 V
4.2.3 Operating voltage (circular plug M 12 - 4-pole)
Pin Configuration External circuit
1
2
3
4
+ 24 V
not assigned
GND
not assigned
1
3
24 V DC ± 10 %
max. residual ripple 10 %
When the power supply voltage is applied, the positioner is operating.
Now implement the required basic settings and activate automatic adjustment of the positioner as described in the chapter
→
entitled “Initial Start-up” or “Starting and Setting Up the Position Controller Type 8692”.
