Description of System
3.1 Schematic representation of the positioner Type 8692
4 ... 20 mA 0 ... 20 mA 0 ... 10 V 0 ... 5 V
DIR.CMD SPLTRNG CHARACT CUTOFF X.TIME
DIR.ACT X.LIMIT
X.CONTROL DBND
POS
CMD
INP
POS CMD TEMP INPUT

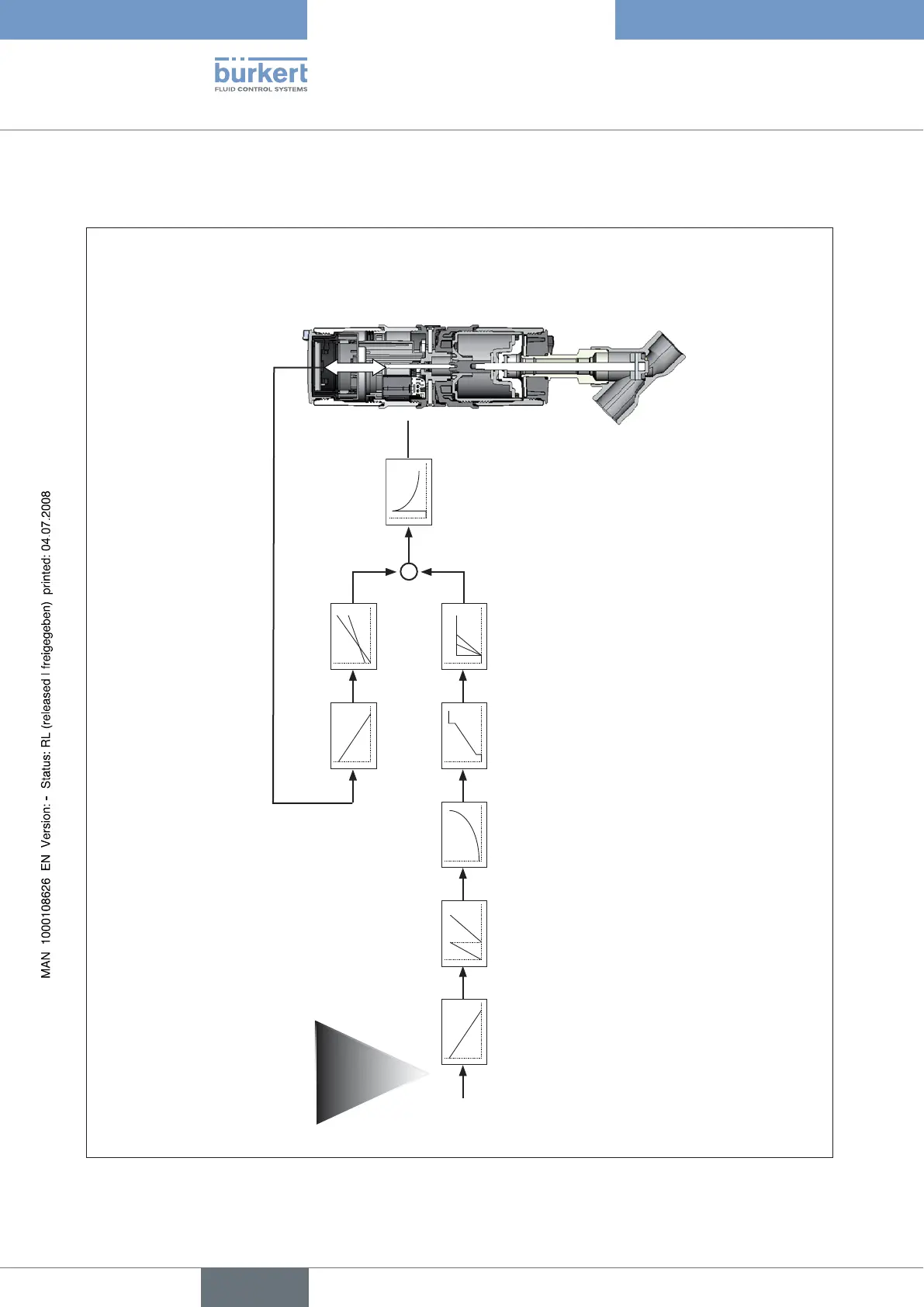

Fig. 5: Schematic representation of position control
