BYD PMW20 - 6.1 WORKING PRINCIPLE OF THE HYDRAULIC SYSTEM

PMW20
89

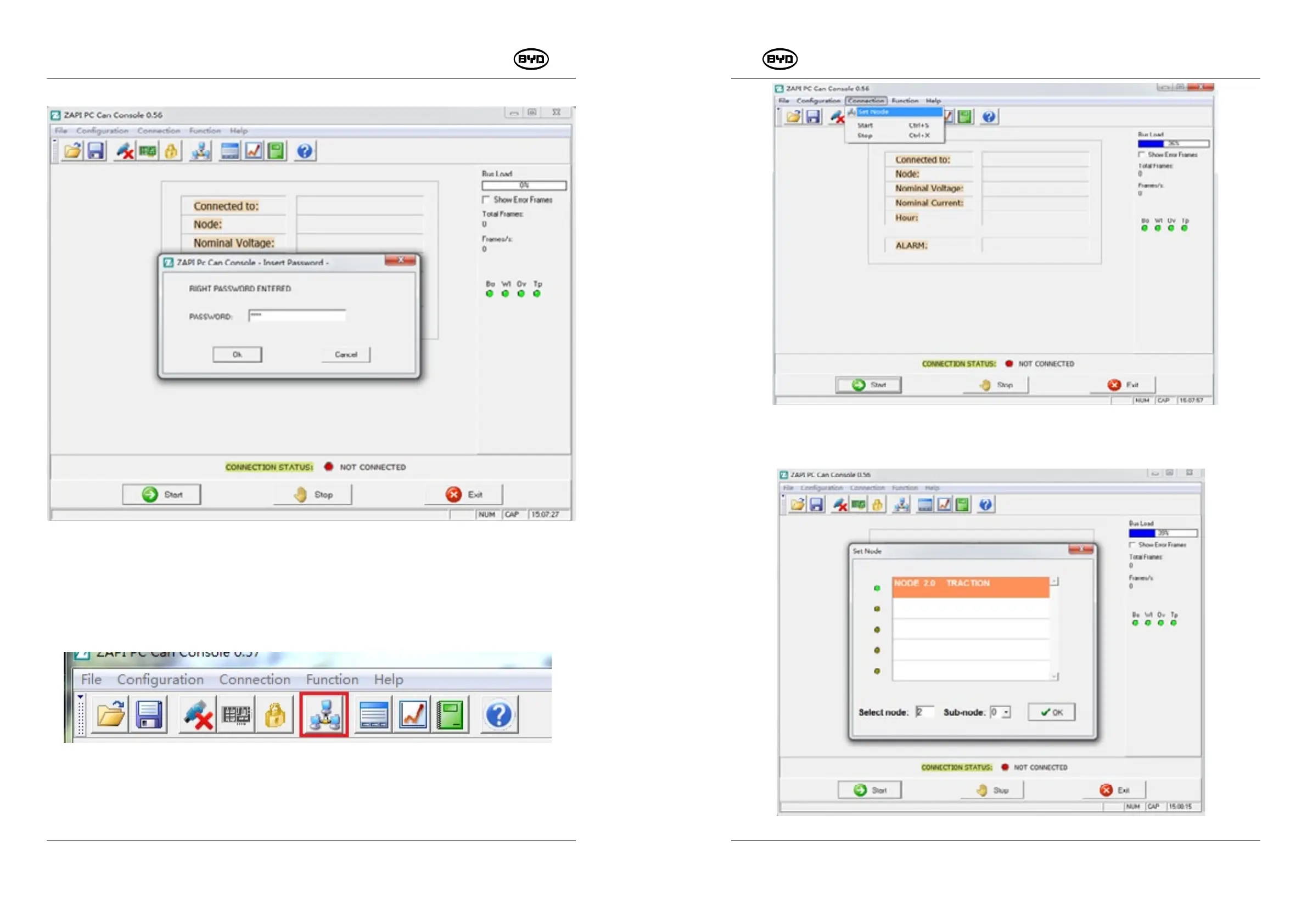

Select the corresponding site, as shown in Fig.1.2.14.
Fig.1.2.14
PMW20
88
Enter password of the upper computer: ZAPI, shown in Fig.1.2.11.
Fig.1.2.11
Select the site: enter by clicking the shortcut icon. Station 2 is the drive controller (main
controller), and station 6 is the steering controller, as shown in figure 1.2.12.
Fig.1.2.12
Or enter by clicking the main menu, as shown in Fig.1.2.13.
SM-PMW202020001-EN
SM-PMW202020001-EN
Fig.1.2.13
