PMW20
95
PMW20
94
Fig.1.3.5
SM-PMW202020001-EN
SM-PMW202020001-EN

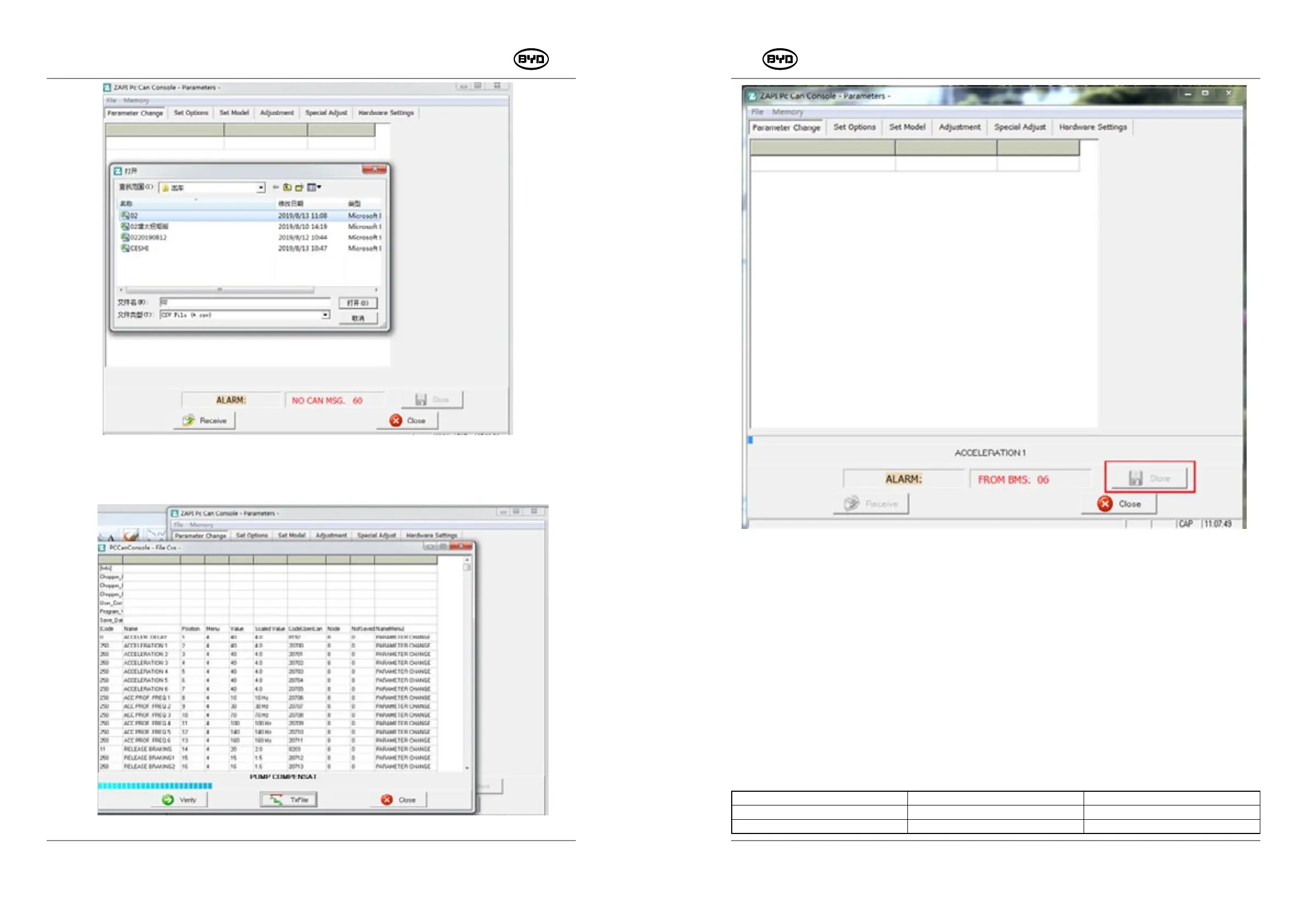

Open parameters and enter the interface. Click the button “TxFile” and start to import
parameters. After finished, click “Close”, as shown in Fig.1.3.5.
Fig.1.3.6
Note
After parameters are imported successfully, the lower right button will become clickable
where you should click “Save”, as shown in Fig.1.3.6. Otherwise, restart the software
or re-import parameters.
The above are procedures about burning procedures of the main controller and
importing parameters. The way of burning procedures is different from that of importing
parameters, which depends on the cif file. The cfi file of the steering controller is
“epsm003.cfi”, as shown in Fig.1.3.7.
Controller and its corresponding “ .cif ” file
Type of the Controller .cfi Note
COMBIACX adx_zp002(2560).cfi
EPS-DC0 epsm003.cfi
Fig.1.3.4
