2.3 ACQUIRE THE VOLTAGE INFORMATION OF THE ACCELERATOR Function: When
it alarms the fault VACC NOT OK or VACC OUT RANGE, acquire the voltage information

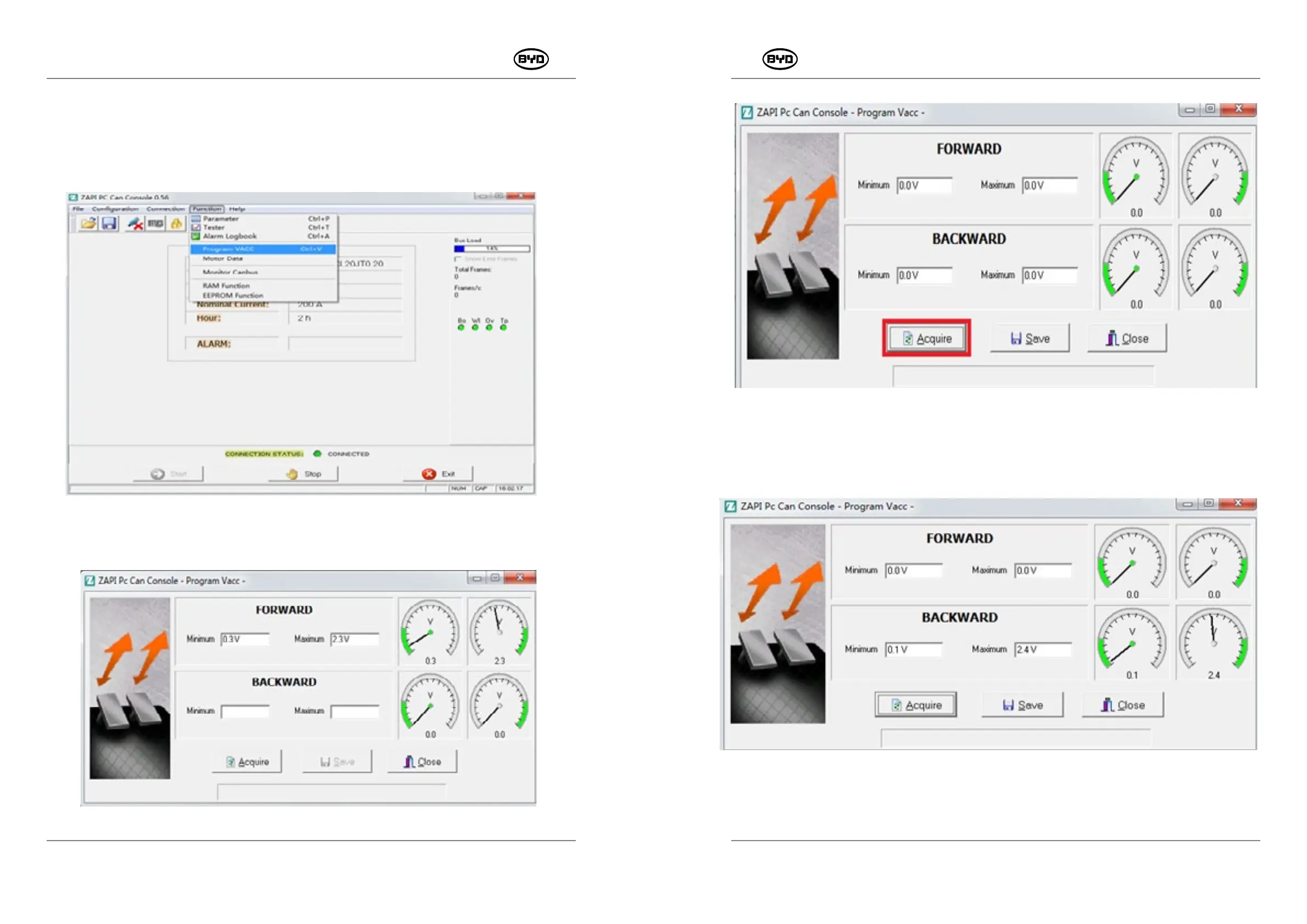

of the accelerator. Operating procedures are as follows: Connect the CAN box, input the
password, select the site and then click the option "FUNCTION → Program VACC" to
enter the acquire interface, as shown in the Fig.2.3.1.
The initial page is as shown in the Fig.2.3.2.
Fig.2.3.2
Click "Acquire", as shown in Fig.2.3.3.
Fig.2.3.3
Press the handle and operate the accelerator towards the fork, as shown in the Fig.2.3.4.
Fig.2.3.4
