34. Error ID: 02A69
Error Description:SENS MOT TEMP KO
Cause A
1)The motor temperature sensor type is set incorrectly.
2)The motor temperature sensor is out of range.
3)The motor temperature sensor wiring fault.
4)The controller is damaged.
2)The motor temperature sensor is out of range.
3)The motor temperature sensor wiring D3 and D6 fault.

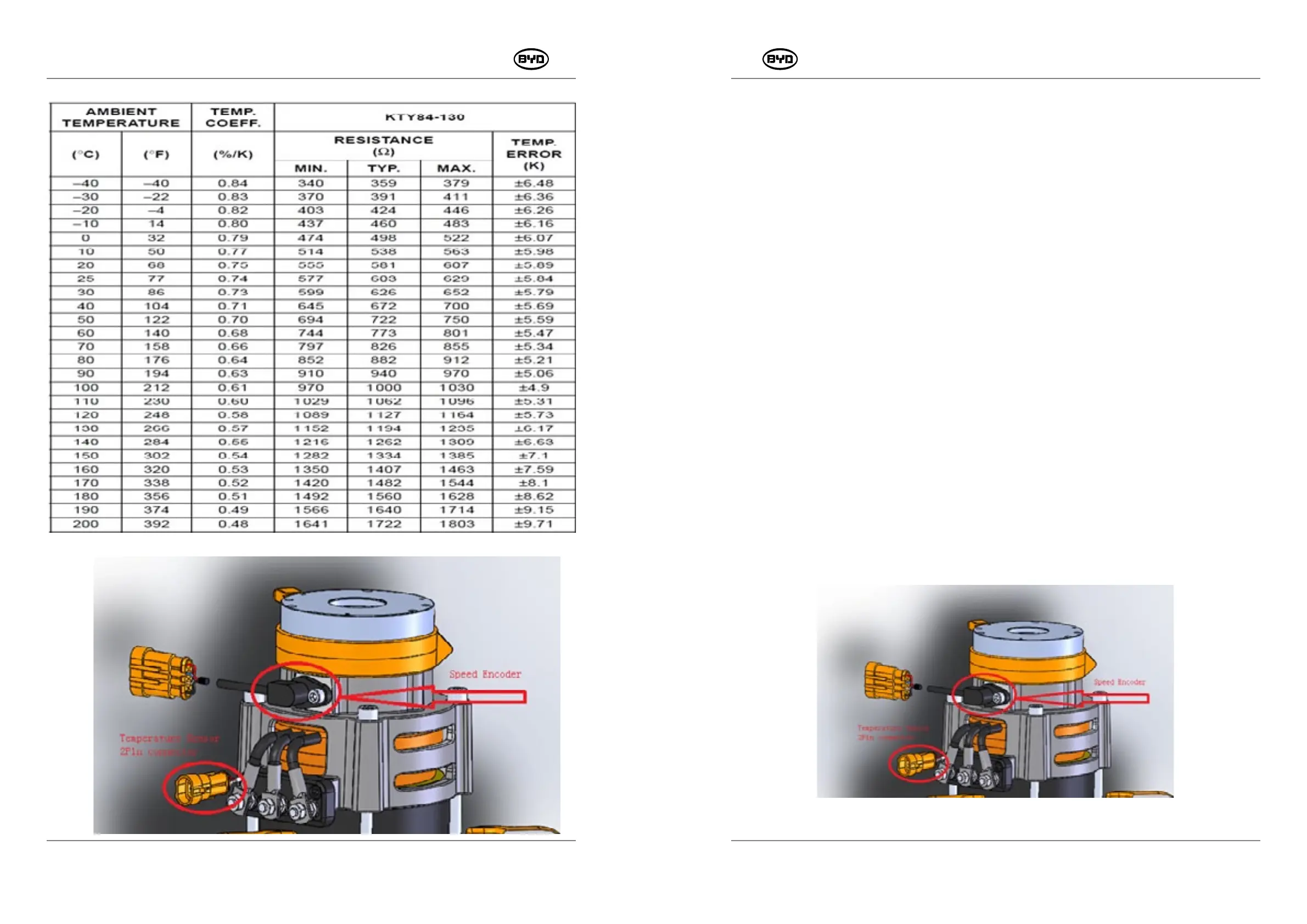

4)The controller is damaged. < Reference correspondence resistance temperaturetable>
PMW20
144
KTY84-130
SM-PMW202020001-EN
SM-PMW202020001-EN
Handling Method:
1)The motor temperature sensor type is set incorrectly. It should be set to OPTION # 1.
SET MOTOR TEMPERATURE in SET OPTION:
OPTION ＃ 1: The temperature sensor is KTY 84-130 PTC (Positive Thermal Coefficient
Resistance)
OPTION ＃ 2: The temperature sensor is KTY-83 PTC.
DIGITAL: Digital (on / off) sensor for monitoring motor temperature is connected to the
input CND # 3.
NONE: No temperature sensor connected.
To Next Page
