PMW20
182

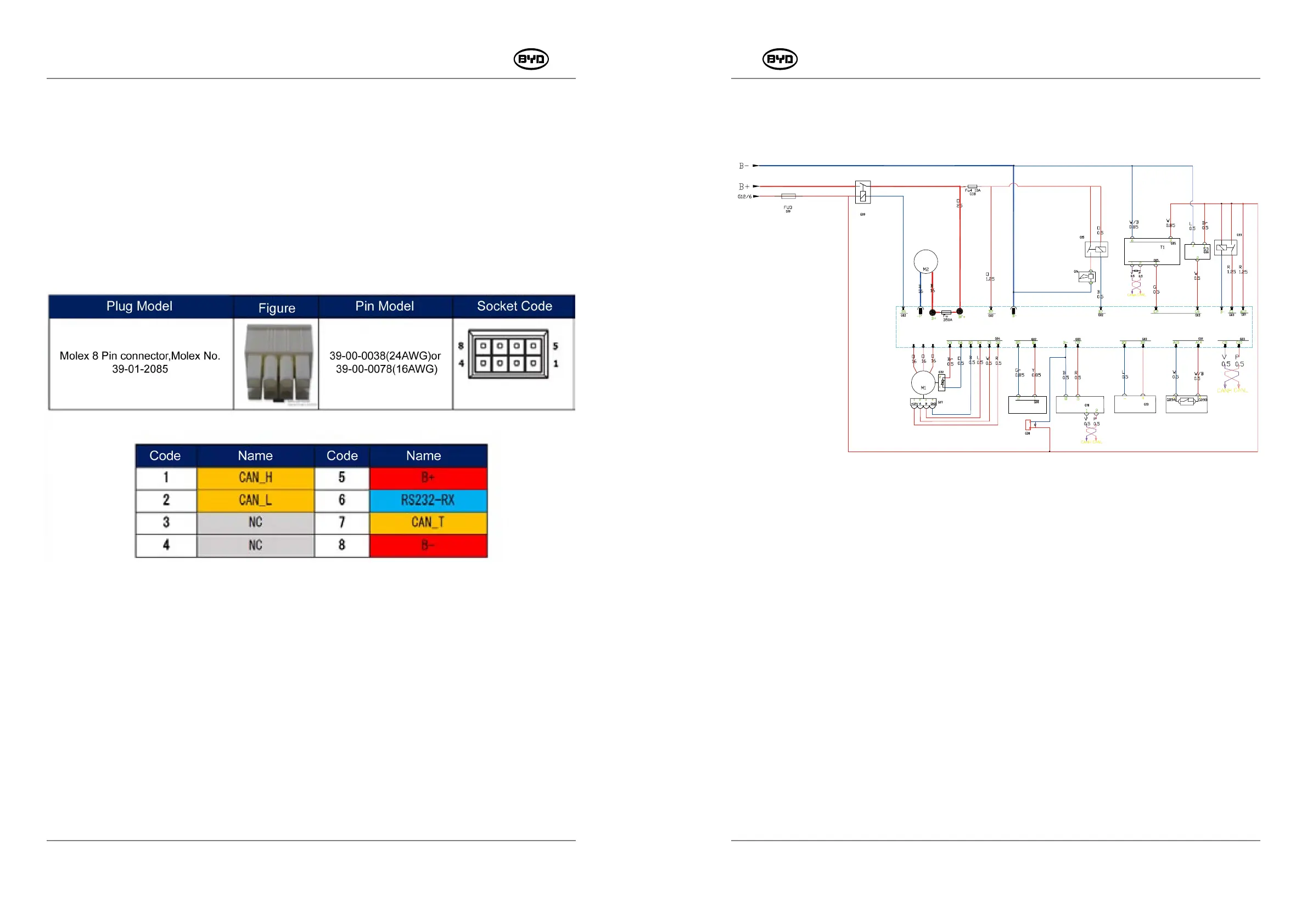

8.9.2.4 Instrument Pin Definition
SM-PMW202020001-EN
8.9.2.3 Instrument - Dashboard Low Power Alarm Function
ill
y
●When the battery power SOC is less than or equal to 10%, the master controller w
send a low power alarm to the instrument, and the instrument will alarm and displa
02A66, prompting charging and the master controller will prohibiting lifting and the
travel speed halved.
PMW20
183
8.9.2.5 Lifting System
For the CAN handle, the lift signal is sent to the main controller through the CAN
message; for the mechanical handle, the lift signal is sent to the main controller directly
through the hardware signal.
Lifting Process
The lifting motor is connected to -P and B +of the main controller. When the main
controller receives the lifting switch signal, it outputs DC power to make the lifting motor
work. When it reaches the top and triggers the lifting limit switch, the lifting limit switch is
disconnected. The signal stops the output current and the lifting motor stops.
Lowering Process
The lowering switch is closed and the main controller outputs 24V power between its
B3 hole and B+ hole. Energize the lowering valve by opening its port and lowering
down the fork.
KM3
1.37Kw
120
?
1.2Kw
24VDC
KEY Fuse
COMBIACX Main Controller CT1
U V W
解除
电机
制动
SM-PMW202020001-EN
Lift Motor
Main Contactor
Horn
Relay
Horn
Handle
Handle
Limit
Switch
Quick
Reverse
Time
-
delay
Relay
Drive Motor
Motor Brake
Display
Lowering
Solenoid
Valve
Limit Switch of the Fork
To Next Page
