3-6 Flex Max901e 1GHz Trunk and Bridger Amplifiers 1502154 Rev D

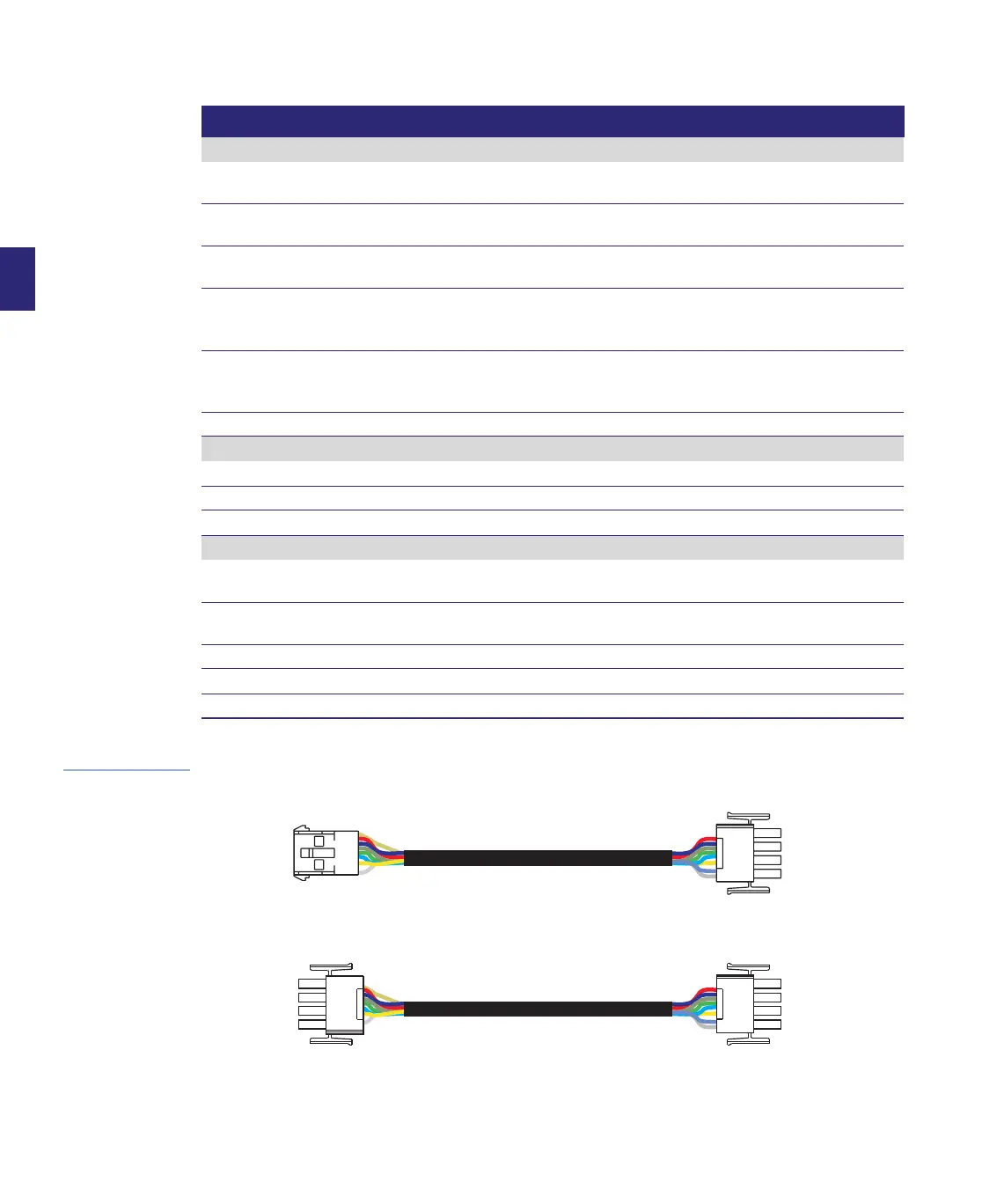

Figure 3.2
Power Supply Cables
Table 3.2 Flex Max901e Upgrade Considerations
IF you have this power supply... THEN you need...
700 Series Amplifiers
122019-10 (1.8A) New power supply (P/N 122027-05) and a detachable 14-inch
cable (P/N 174355-02)
122019-11 (1.8A) New power supply (P/N 122027-05) and a detachable 14-inch
cable (P/N 174355-02)
122021-01 (2.2A) New power supply (P/N 122027-05) and a detachable 14-inch
cable (P/N 174355-02)
122027-01 (2.3A) 9-pin to 12-pin cable adapter (P/N 173720-02)
OR new power supply (P/N 122027-05) and a detachable cable
[P/N 174355-02 (14”)]
122027-03 (2.3A) 9-pin to 12-pin cable adapter (P/N 173720-02)
OR new power supply (P/N 122027-05) and a detachable cable
[P/N 174355-02 (14”)]
122027-05 (2.3A) Detachable cable [P/N 174355-02 (14”)]
800 Series Amplifiers
122027-02 (2.3A)
1
No power supply or cable changes necessary
122027-04 (2.3A)
1
No power supply or cable changes necessary
122027-05 (2.3A) No power supply or cable changes necessary
900/901 Series Amplifiers
122028-01 (1.0A) New power supply (P/N 122027-05) and a detachable cable
[P/N 174355-02 (14”)]
122028-02 (1.0A) New power supply (P/N 122027-05) and a detachable cable
[P/N 174355-02 (14”)]
122027-02 (2.3A)
1
No power supply or cable changes necessary
122027-04 (2.3A)
1
No power supply or cable changes necessary
122027-05 (2.3A) No power supply or cable changes necessary
1. If necessary, replace with 122027-05 power supply and 174355-02 (14”) cable.
P/N 174355-02
14 inch cable
12-pin cap
to
122027-05
power supply
12-pin cap
to
FM901e
module
P/N 173720-02
10 inch cable
9-pin cap
to
700 series
power supply
12-pin cap
to
FM901e
module
9-pin to 12-pin cable adapter
12-pin to 12-pin detachable cable
