7-10 Flex Max901e 1GHz Trunk and Bridger Amplifiers 1502154 Rev D
Element Management Transponder Installation/Replacement
The Flex Max901e can be monitored and controlled through the Value Max transponder. The
transponder collects all Management Information Base (MIB) and electronic Module Architecture
Profile (eMAP) data and transmits it to the headend. A laptop can be connected to a transponder on
an individual module in order to monitor and control the module’s parameters.

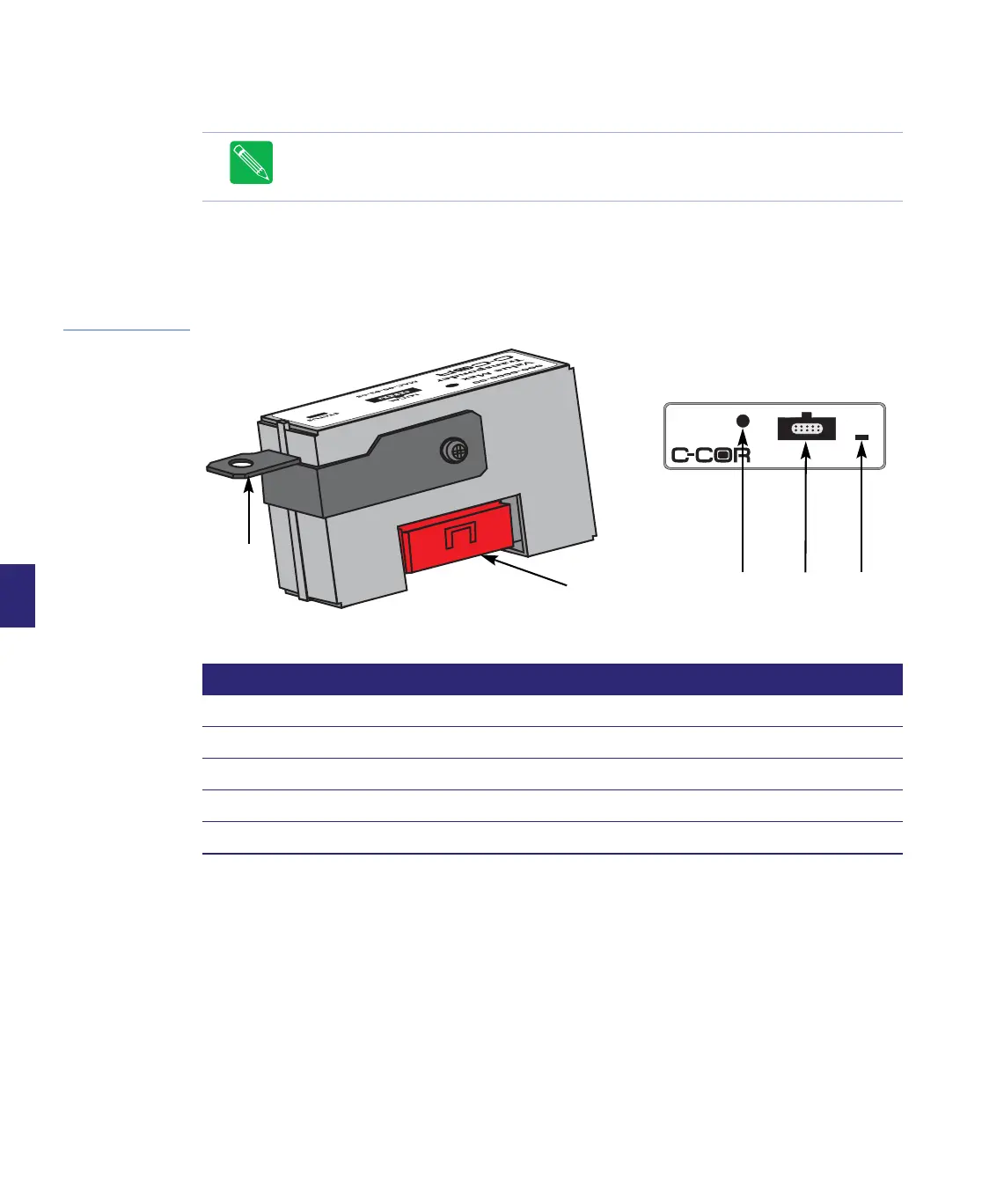

Figure 7.4
Transponder
Identification
Note Using element management software, the transponder monitors and controls
Flex Max901e functions. The element management software will automatically
recognize the transponder. Requires Windows 2000 or higher.
Table 7.2 Transponder Identification
Item Label Function
1 Grounding Bracket Connects transponder to ground
2 Interface Connector Provides connection to RF board and element management system
3 Tamper Photo Detector Detects open lid
4 LOCAL Provides local port for bench interface procedures
5 STATUS LED indicates transponder status
Value Max
Transponder
LOCAL
STATUS
MAC ADRS:
AM ADRS:
xx-xx-xx-xx-xx-xx
xxxxxx
H
2
3
4 5
1
Actual size
