3
1502154 Rev D Upgrading Legacy FlexNet Amplifiers 3-7

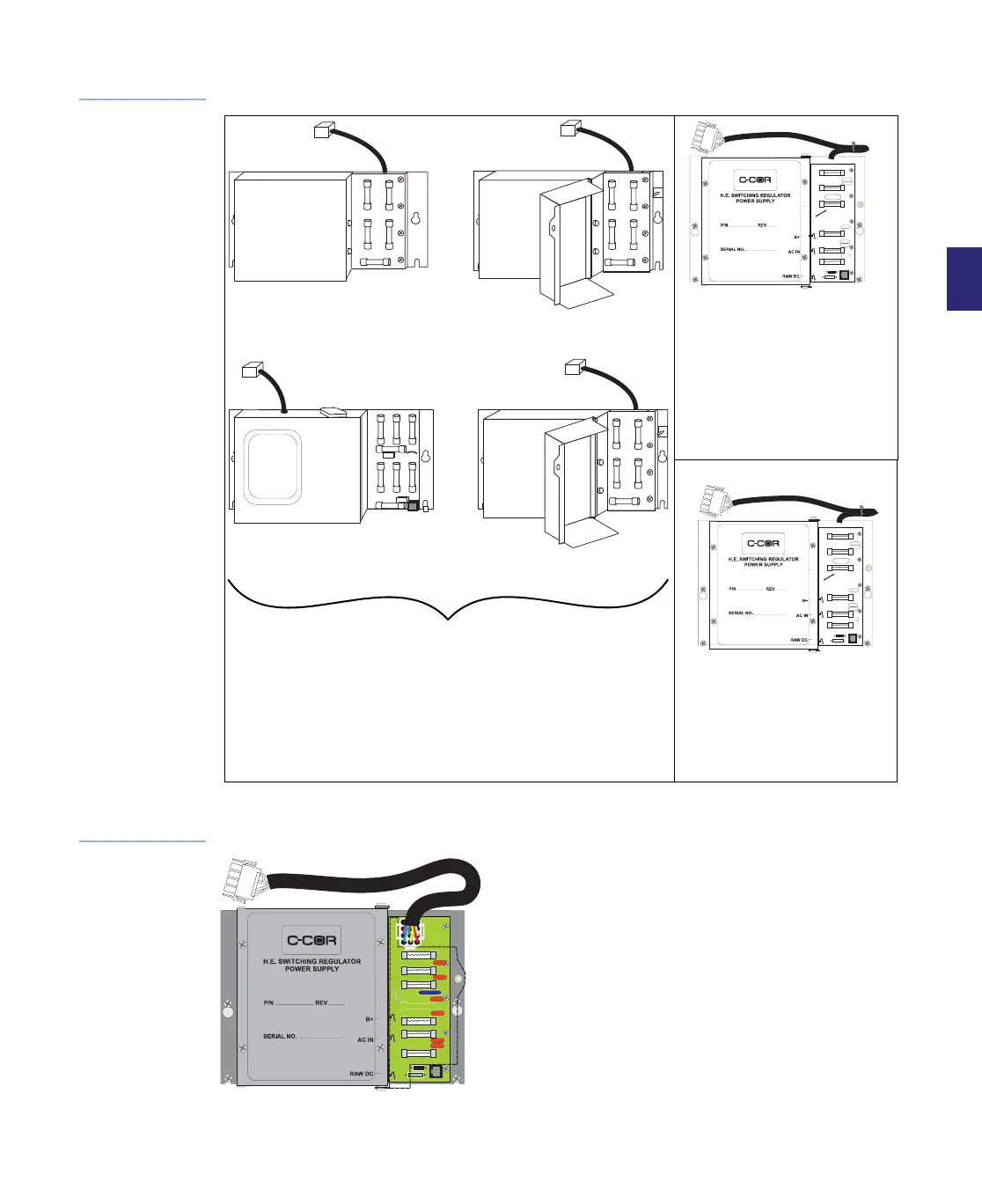

Figure 3.3
Power Supply
Upgrade
Requirements
Figure 3.4
Replacement
Power Supply
HEPS790-2.3A
122027-05 with
Detachable Cable
174355-02
HEPS790-1.8 Power Supply
HEPS700-1.8 Power Supply
SRPS700-2.2 Power Supply
#122021-01
#122019-11
#122019-10
HEPS90-1.0 Power Supply
#122028-02
HEPS790-2.3 Power Supply
#122027-01#122027-01
and
122027-03
HEPS790-2.3 Power Supply
#122027-02
and
122027-04
These four power supplies must be replaced by
a 122027-05 power supply
and a 174355-02 detachable cable
(see Figure 3.4 below) when upgrading to an FM901e 1GHz amplifier.
Refer to Table 3.2 on page 3-6 for more information
on all power supplies on this page.
These two power supplies have a
9-pin cable and require a 9-pin to
12-pin cable adapter OR replace
with a 122027-05 power supply
and 174355-02 detachable cable.
(See Figure 3.4 below.)
These two power supplies have a
12-pin cable and require no power
supply or cable changes.
DIST LINK
PORT 6
PORT 5
PORT 3
PORT 2
MAIN FUSE
PORT 4
PORT 1
B
122027-05
To Next Page
