C-COR Flex Max901e - Page 43

4
1502154 Rev D Housing Instructions 4-7

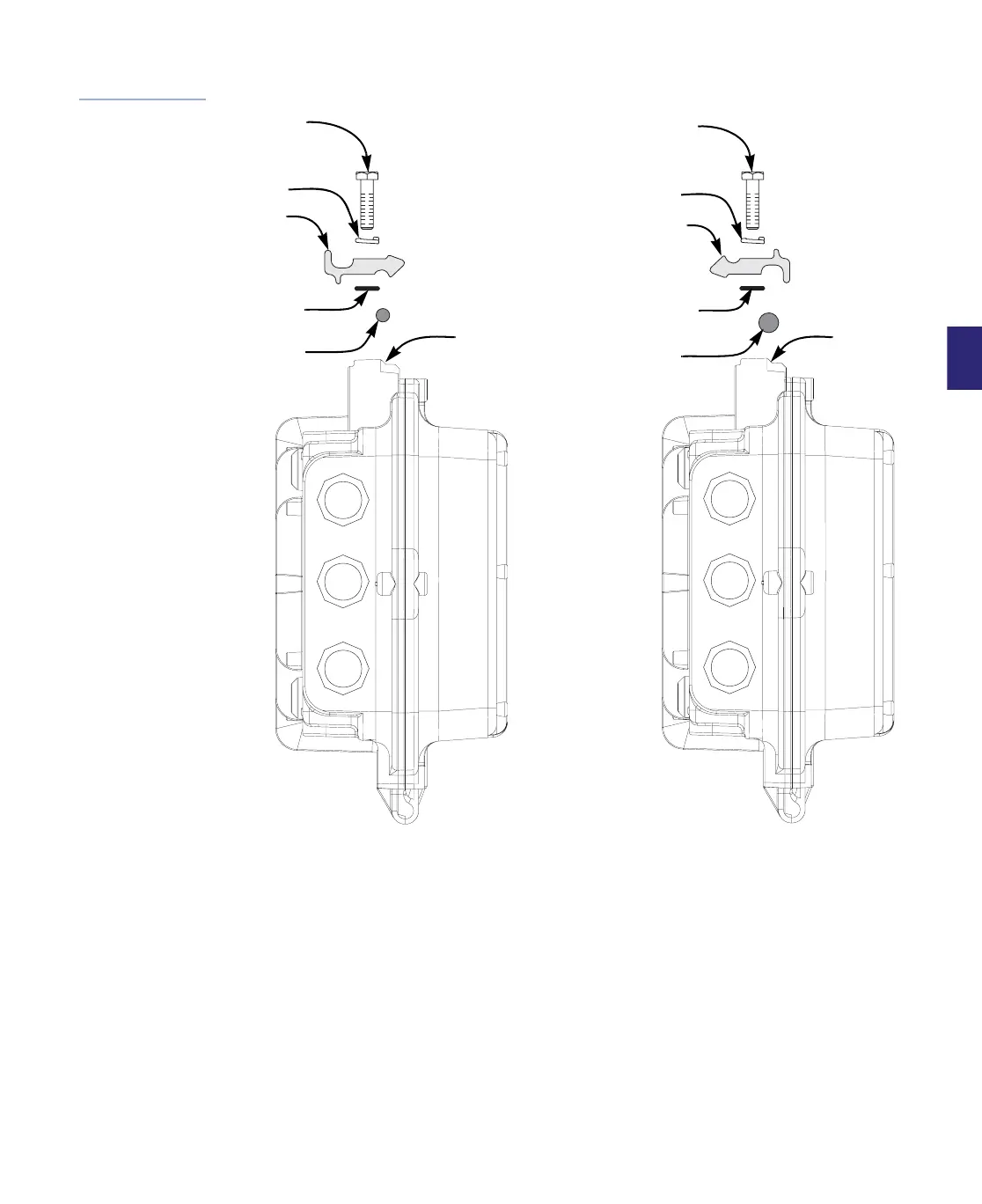

Figure 4.4
Strand/Pedestal
Mounting
Strand
Clamp
Strand Clamp Orientation
for 1/4-inch Strand or Smaller
1-inch Clamp
Bolt
Lock
Washer
O-Ring
(retaining)
Top
Strand
Clamp
Boss
Top
Strand
Clamp
Boss
Strand Clamp Orientation
for 5/16-inch Strand or Larger
1/4-inch
Strand
Strand
Clamp
1-inch Clamp
Bolt
Lock
Washer
O-Ring
(retaining)
5/16-inch
Strand
