C-COR Flex Max901e - Page 52

4
4-16 Flex Max901e 1GHz Trunk and Bridger Amplifiers 1502154 Rev D

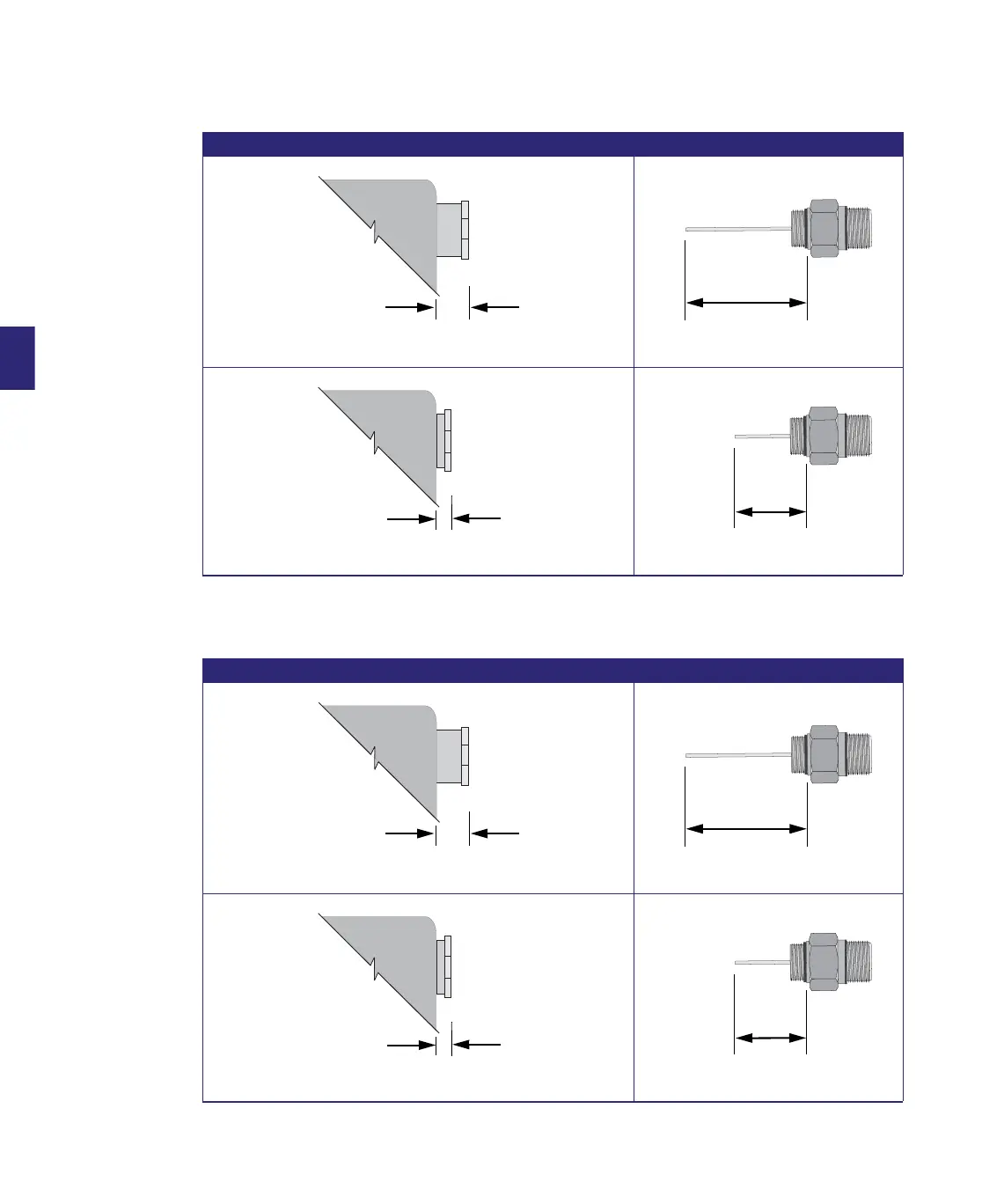

Table 4.3 STANDARD Flex Max901e Housing Center Conductor Lengths
(images not to scale)
IF you have a housing in which the port insert extends... THEN cut the center conductor to...
Table 4.4 BYPASS Housing Center Conductor Lengths
(images not to scale)
IF you have a housing where the port insert extends... THEN cut the center conductor to...
9/16in (1.43cm)
11/2in (3.81cm)
3/16in (0.48cm)
1 1/8in (2.86cm)
5/16in (0.79cm)
2 5/16in (5.87cm)
1/4in (0.64 cm)
2 1/4in (5.72cm)
