C-COR Flex Max901e - Page 67

5
1502154 Rev D Configuration 5-11
Flex Max901e Trunk Amplifier Configured for 1GHz Operation with Equal Output
Tilt on the Trunk and Bridger Legs
1. Ensure that a GEQC-1GHZ-090 (9dB) is installed in the O/P EQ location.
(17dB output tilt. See note below for optional tilts.)
2. Ensure that an NPB-020 (2dB) PAD is installed in the BRIDGER EQ/PAD location.
3. Ensure that an NPB-000 (0dB) PAD is installed in the INTERSTAGE PAD and P5/P6 FWD
PAD locations.
4. Do not remove the jumper installed in the INTERSTAGE EQ location.

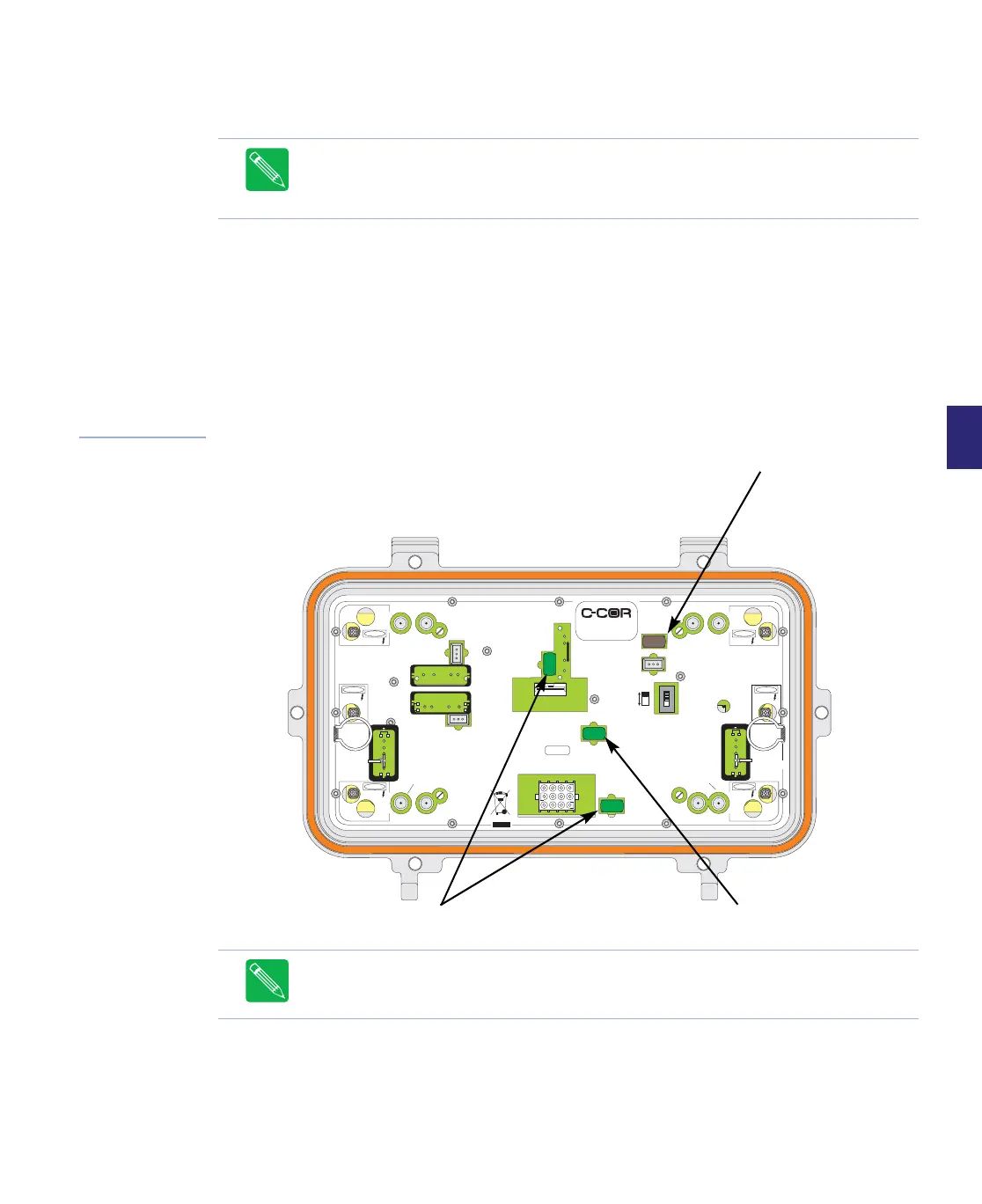

Figure 5.5
Flex Max901e trunk
amplifier configured
for 1GHz operation
with equal output tilt
on the trunk and
bridger
Note The following example is how this Flex Max901e is shipped from the factory.
Note This FM901e configuration is suitable for replacement of FNT7, FNT8, FNT9
amplifiers.
Note A GEQC-1GHZ-050 plug-in (14dB output tilt) and a GEQC-1 GHZ-070 plug-in
(15.5dB output tilt) are optional and must be ordered separately. Please contact your
C-COR sales professional.
DANGER
HIGH
VOLTAGE
DANGER
HIGH
VOLTAGE
DANGER
HIGH
VOLTAGE
DANGER
HIGH
VOLTAGE
PORT 1
PORT 3
PORT 2
PORT 6
DISTRIBUTION
PORT 5/6 FWD
O/P TP
PORT 2/3 FWD
O/P TP
PORT 5/6 REV
I/P TP
PORT 2/3 REV
I/P TP
MODULE
HOLD DOWN
MODULE
HOLD DOWN
P5/P6 FWD
PAD
POWER
PLUG
UNPLUG POWER SUPPLY
CONNECTOR BEFORE
REMOVING RF MODULE
BRIDGER
EQ/PAD
ALC PAD
ALC
SENSITIVITY
TRANSPONDER
PORT 5
PORT 4
PORT 1
FWD
I/P TP
PORT 4
FWD
O/P TP
STATION
FWD PAD
STATION
REV PAD
STATION
FWD EQ
STATION
REV EQ
EQ
PORT 1 REV
O/P TP
PORT 4 REV
I/P TP
MODULE
HOLD DOWN
MODULE
HOLD DOWN
15
AMPS
15
AMPS
15
AMPS
15
AMPS
DANGER
HIGH
VOLTAGE
DANGER
HIGH
VOLTAGE
CAUTION
ALC
MAN
FLEX MAX
FM901e AMPLIFIER
DISTRIBUTION
PAD
O/P EQ
INTERSTAGE
A
SLOT
B
B
SLOT
A
2
0JMP
EQ 90
0JMP
NPB-000 PAD NPB-020 PAD
GEQC-1GHz-090
