Label/ Tag Media Specifications
Label and tag media to be used for the Hermes can be found in the table
below. Note this information before ordering your labels.

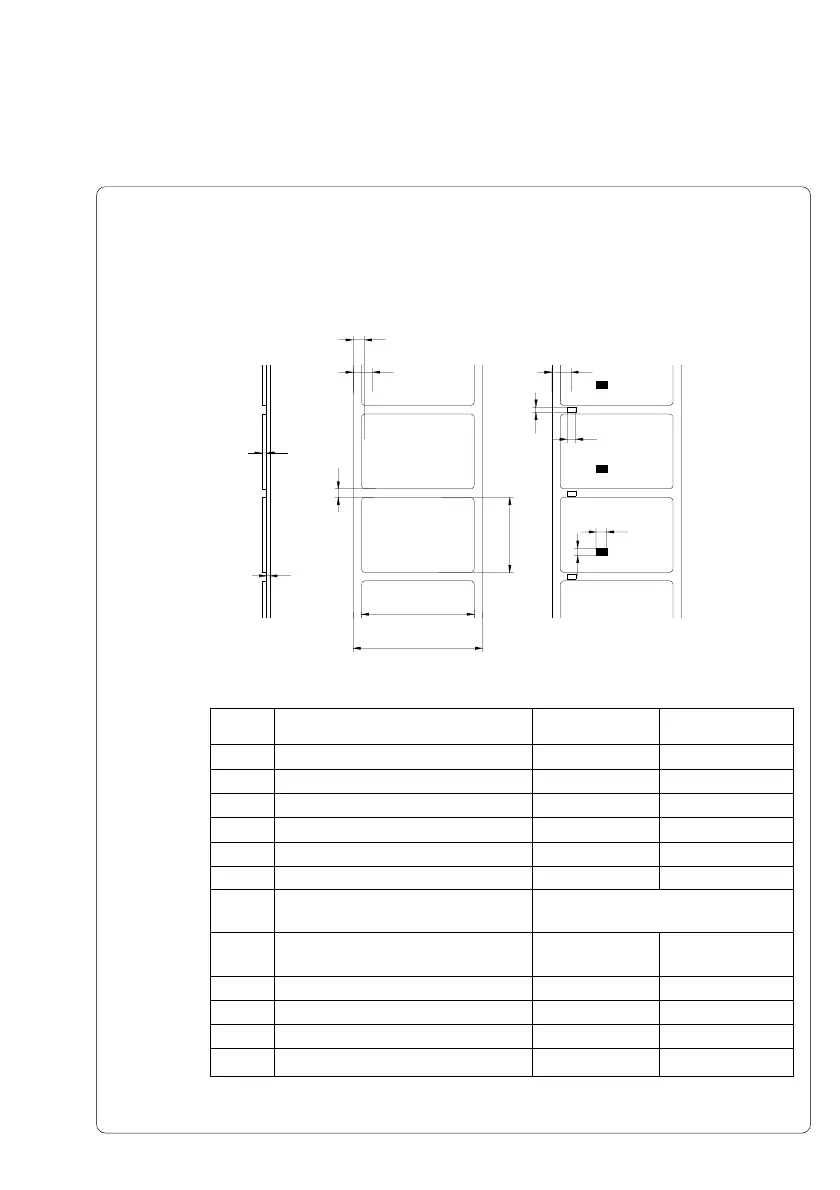

Fig. 1 Label formats
Table 1 Label formats in inches (figures in brackets are in mm)
E
F
D
A
B
K
I
C
G
H
L
M
H
Item MIN. MAX.
A Label width .4(10) 4.6(116)
B Width of the silicon liner .4(10) 4.7(120)
C Label length .2(5) 21.5(546)
D Gap between labels .08(2) 21.5(546)
E Label thickness .0024(.06) .01(.25)
F Thickness of silicon liner .002(.05) .004(.1)
G Distance of the first printing point
from the edge of silicon liner 0
H Distance of the label sensor
from the edge of silicon liner .08(2) 1.85(47)
I Width of punch hole .2(5) -
K Height of punch hole .08(2) .2(5)
L Width of reflective mark .2(5) -
M Height of reflective mark .08(2) .2(5)

CAB Hermes Series Specifications

General

Display	LCD with backlight
Cutter	Optional
Dispenser	Optional
Print Technology	Thermal Transfer
Resolution	203 dpi, 300 dpi, 600 dpi (depending on the model)
Interfaces	USB, Ethernet, Serial
Memory	64 MB RAM, 128 MB Flash
Media Types	Labels, continuous media
Supported Barcode Types	Data Matrix, QR Code
Max Print Width	4.09 inches (104 mm)
