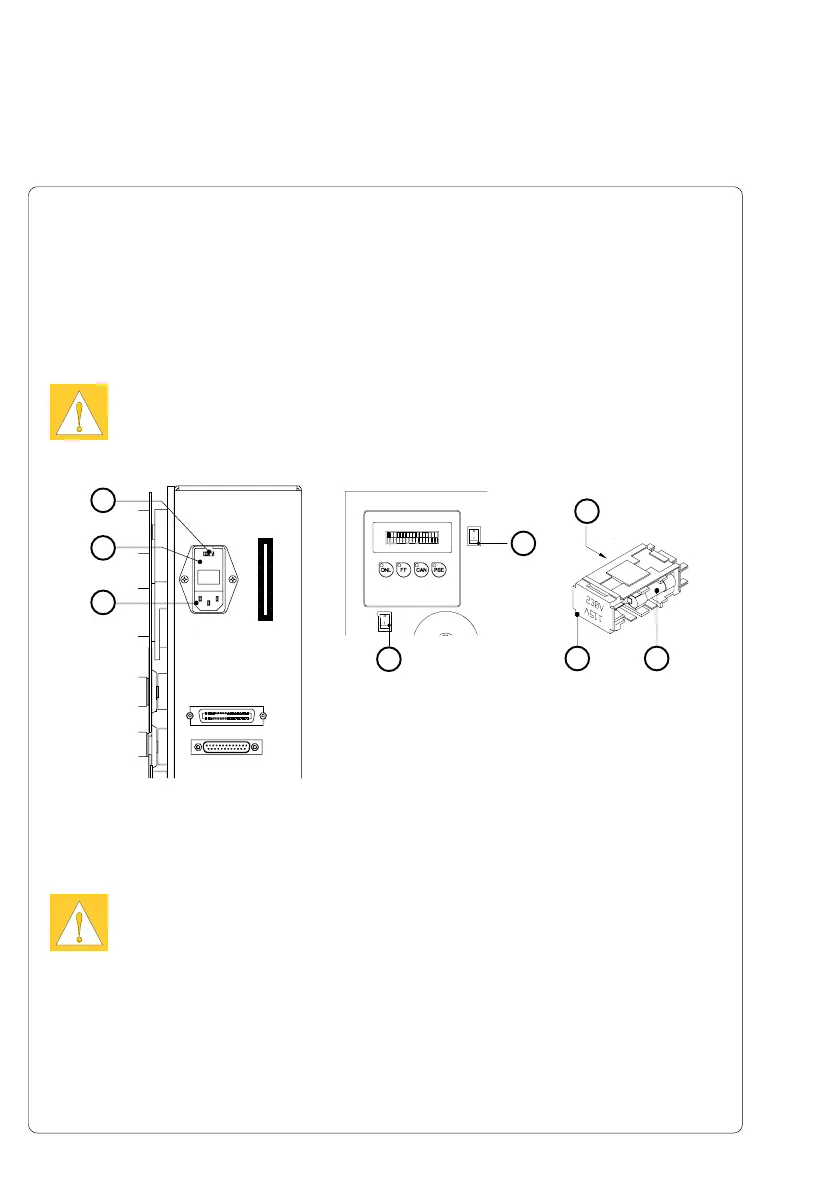

Fig. 5a Power supply module / power switch
5 Connecting the printer
Connection to Power Supply
The Hermes is designed for use with 230V A.C/50 Hz (standard) or 115V A.C/
60 Hz.
CAUTION !
Before connecting the printer to the power supply, make sure that the
voltage selected on the power supply module of the printer is the same as
your main power supply ! Pay attention that the power switch (4/5) is in
position "
O
" (OFF).
To change the voltage setting, open the cover (2) and remove the voltage
selector (1) from the power unit.
CAUTION !
If you have changed the operating voltage of your printer the fuses (6)
need replacing as stated below !
230V - 2 x T 4A 115V - 2 x T 6,3A
When delivered, the correct fuses for the pre-selected operative voltage are
installed. You will find the necessary fuses for the other voltage in the
accessories package. Slide the voltage selector back into the power supply
module so that the correct voltage is visible in the lid window of the cover (2).
Connect the printer to a grounded outlet using the power cable supplied in the
accessories package.
1 - Voltage selector
2 - Cover
3 - Power supply connector
4 - Power switch Hermes 4N/4F
5 - Power switch Hermes 5N/5F
6 - Fuses
