7 Adjustments Concerning the Labels
Adjustment of the Label Edge Sensor

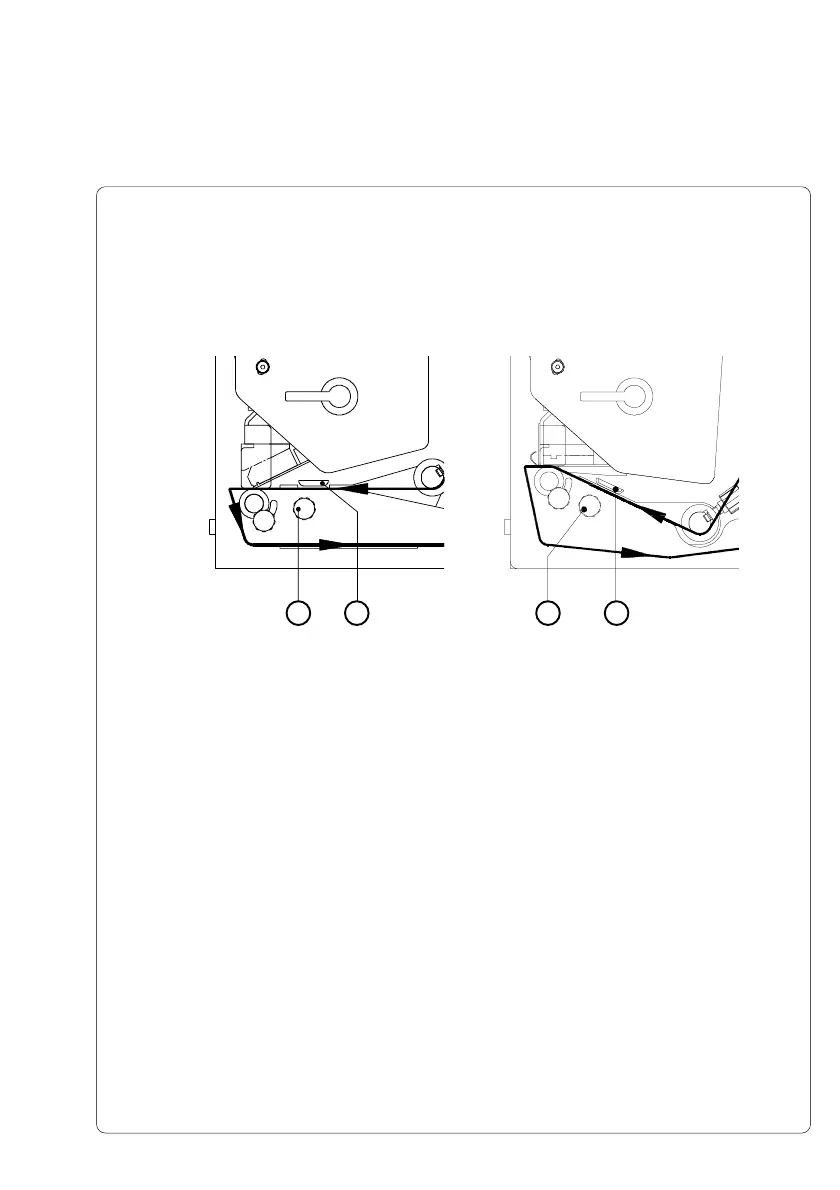

Fig. 7a Adjustment of the label edge sensor
To accommodate a variety of print jobs, the position of the label edge sensor
(2) can be adjusted cross to the path of the paper feed. This setting is
particullary usefull if the required labels are either narrow, or have punch holes
or reflective markings, or deviate from the square or rectangular shape.
It is important to ensure that the sensor is positioned in a way that the gaps
between the labels or the markings can be recognized by the photocell. (The
position of the sensor is marked by a notch in the sensor holder.)
If using labels with an unconventional shape (i.e. round or curved) the sensor
should be positioned at the front edge of the label.
Adjust the sensor position using the knurled knob (1).
By turning the knob clockwise the sensor moves outward, and by rotating the
knob anticlockwise it moves inwards.
21 2 1
Hermes 4N/5N Hermes 4F/5F

CAB Hermes Series Specifications

General

Display	LCD with backlight
Cutter	Optional
Dispenser	Optional
Print Technology	Thermal Transfer
Resolution	203 dpi, 300 dpi, 600 dpi (depending on the model)
Interfaces	USB, Ethernet, Serial
Memory	64 MB RAM, 128 MB Flash
Media Types	Labels, continuous media
Supported Barcode Types	Data Matrix, QR Code
Max Print Width	4.09 inches (104 mm)
