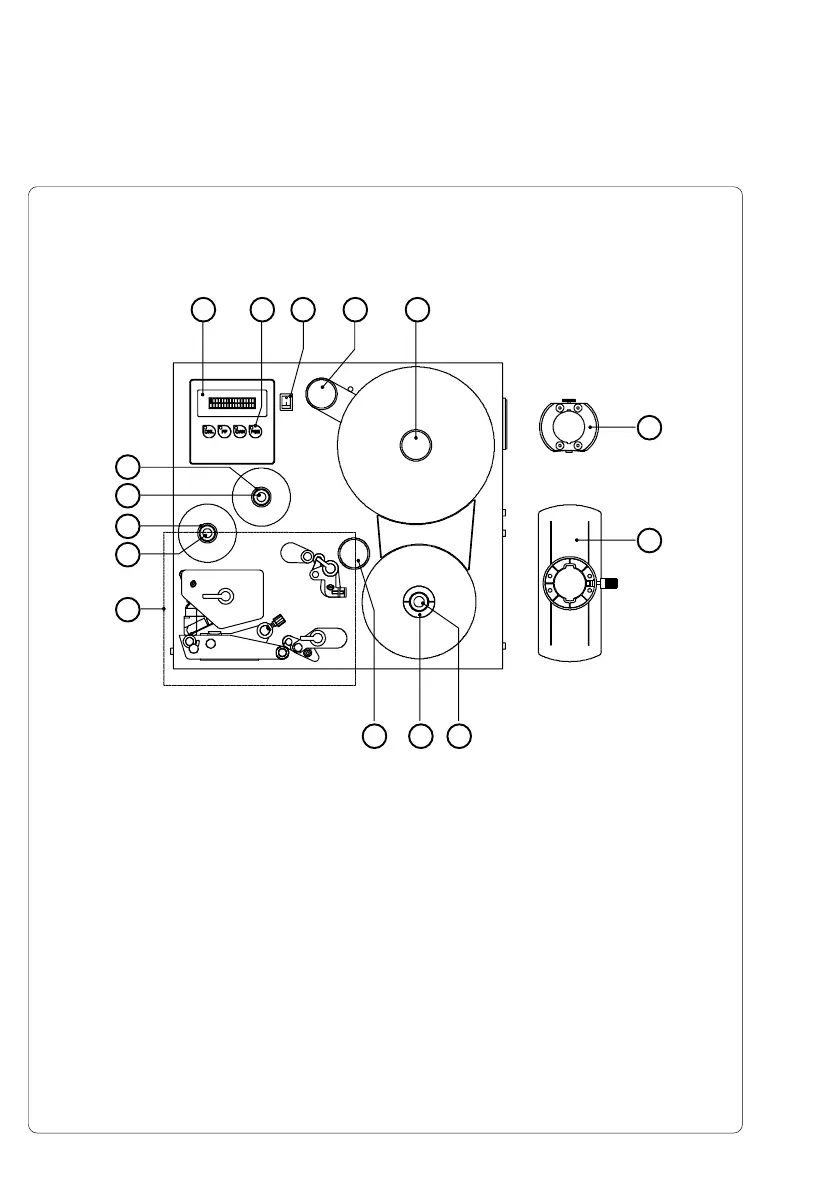

Fig. 4a Side view Hermes 4N
4 Printer Component Location
1 - Display
2 - Function keys with indicator LEDs
3 - Power switch
4 - Swing arm with guide roller
5 - Media supply hub
6 - Adapter
7 - Flange
8 - Knurled knob
9 - Media rewind hub
10 - Guide roller
11 - Print mechanism (Fig. 4e)
12 - Knurled knob
13 - Ribbon take up hub
14 - Knurled knob
15 - Ribbon supply hub
1 2 3 4
6
8910
11
12
15
13
14
5
7

CAB Hermes Series Specifications

General

Display	LCD with backlight
Cutter	Optional
Dispenser	Optional
Print Technology	Thermal Transfer
Resolution	203 dpi, 300 dpi, 600 dpi (depending on the model)
Interfaces	USB, Ethernet, Serial
Memory	64 MB RAM, 128 MB Flash
Media Types	Labels, continuous media
Supported Barcode Types	Data Matrix, QR Code
Max Print Width	4.09 inches (104 mm)
