CAB Hermes Series User Manual

cab - Produkttechnik GmbH B-1
Pin 1Pin 13
Pin 14Pin 25
Pin Signal Function
1 CG Protective Ground
2 TxD Transmit Data (RS-232)
3 RxD Receive Data (RS-232)
4 RTS Request to send
5 CTS Clear to send
7 GND Logic Ground
9 TDATA+ Transmit Data (RS-422, RS-485)
10 TDATA- Transmit Data (RS-422, RS-485)
18 RDATA+ Receive Data (RS-422, RS-485)
19 RDATA- Receive Data (RS-422, RS-485)
20 DTR Data Terminal Ready

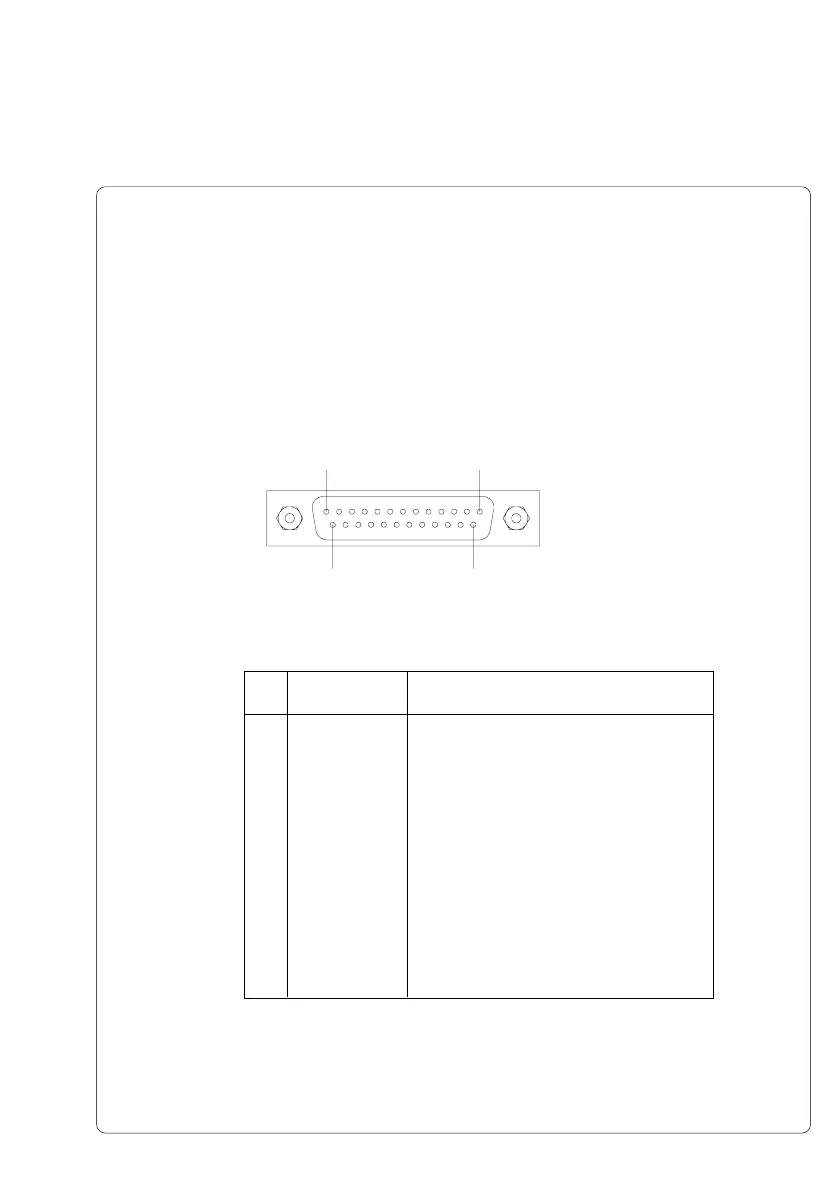

Appendix B - Pin Assignment of the Interface Connectors
Pin Assignment of the Serial Interface Connectors
Hermes provides a 25 pin SUB-D connector for the serial interfaces which are
internally available, i.e. RS-232, RS-422 and RS-485.
Table B-1 Signals of the serial interface connector
Fig. B-1 Connector of the serial interface (rear of the printer)

CAB Hermes Series Specifications

General

Display	LCD with backlight
Cutter	Optional
Dispenser	Optional
Print Technology	Thermal Transfer
Resolution	203 dpi, 300 dpi, 600 dpi (depending on the model)
Interfaces	USB, Ethernet, Serial
Memory	64 MB RAM, 128 MB Flash
Media Types	Labels, continuous media
Supported Barcode Types	Data Matrix, QR Code
Max Print Width	4.09 inches (104 mm)
