CAB Hermes Series User Manual

cab - Produkttechnik GmbH B-3

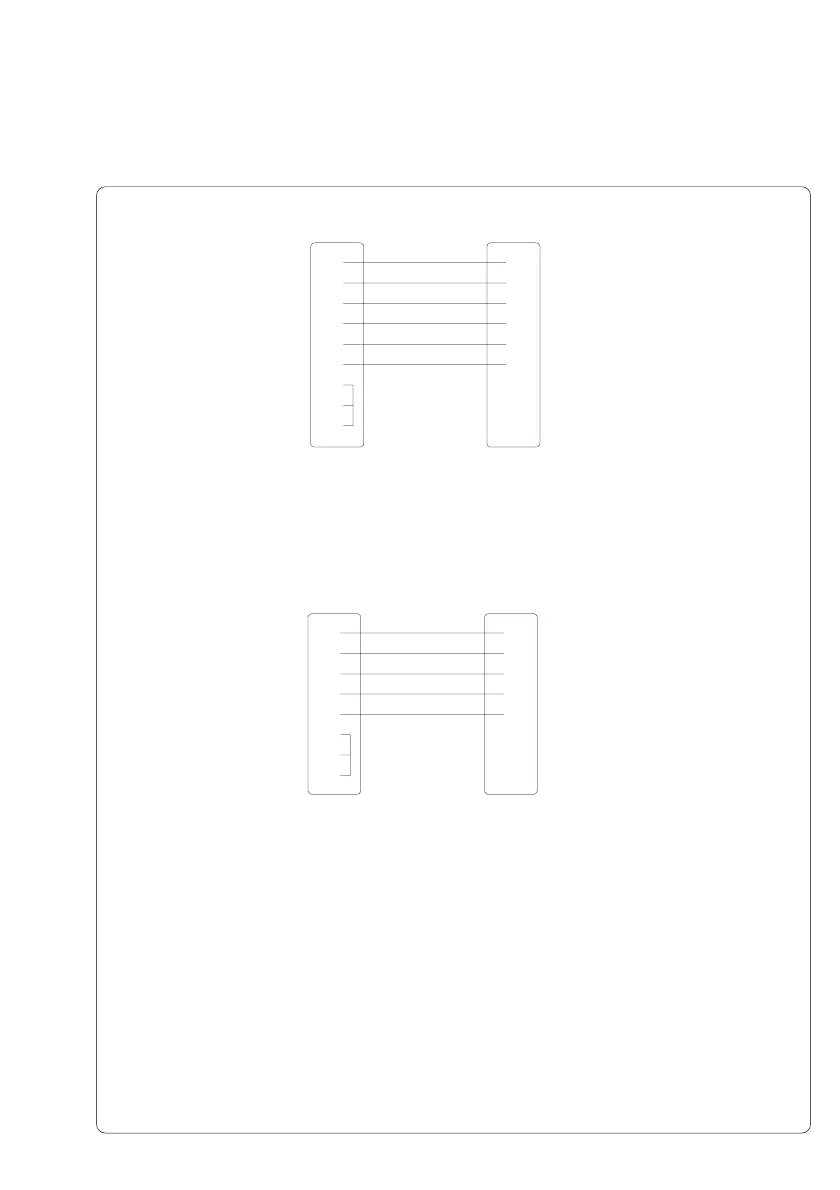

Fig. B-5 Interface cable with 9 pin computer connector
for RS-232 with protocol "RTS/CTS" or "XON/XOFF"
Fig. B-4 Interface cable with 25 pin computer connector
for RS-232 with protocol " RTS/CTS" or "XON/XOFF"
Interface Cable for RS-422 / RS-485
To control the Hermes by RS-422/ RS-485 interface, only the signals TDATA+,
TDATA-, RDATA+, and RDATA- are necessary.
Check the pin assignment for the interface of your computer, and use the pin
assignment of the printer as shown in table B-1 to obtain a suitable cable. The
connectors of TDATA+ and RDATA+ as well as TDATA- and RDATA- at the
plug-in-connection of the cable must be united. If there is a very large transfer
distance a termination of the cables is recommended.
PC Hermes
25 pin connector 25 pin plug
11
23
32
45
54
77
6
8
20
PC Hermes
9 pin connector 25 pin plug
22
33
57
75
84
1
4
6

CAB Hermes Series Specifications

General

Display	LCD with backlight
Cutter	Optional
Dispenser	Optional
Print Technology	Thermal Transfer
Resolution	203 dpi, 300 dpi, 600 dpi (depending on the model)
Interfaces	USB, Ethernet, Serial
Memory	64 MB RAM, 128 MB Flash
Media Types	Labels, continuous media
Supported Barcode Types	Data Matrix, QR Code
Max Print Width	4.09 inches (104 mm)
