102 APOLLO Digital Broadcast Production Console Panel Options
DK MSD600
++
METER - MU5799
The MU5799 console up-stand panel
is fitted with a DK Audio MSD600++
surround meter, providing a visual
surround field representation along
with comprehensive surround phase
monitoring and other features such as
loudness metering.
The MSD600++ has 4 I/O slots that can
be fitted with various formats of card:
• AES & Analogue - Each card has 1
x digital stereo input and a pair of
analogue inputs. Fully populating the
meter with this card type provides 4
stereo digital and 8 analogue inputs.
• AES only - Each card having 4 stereo
digital inputs.
• Analogue only - Each card having 8
analogue inputs.
DK's digital inputs are available either
as AES3id unbalanced 75 Ohm on BNC
connectors, or AES3 balanced 110 Ohms
on D-type connectors.
Card types required should be specified at
the time of order as it affects the internal
wiring and rear interface plate layout of
the console. Multiple RTW meters can
be fitted in the same control surface if
required.
This meter does not access Calrec meter
data, it requires dedicated audio feeds.
If it is to be fed directly from console
outputs, these should be provisioned for in
the quantity of Hydra2 output ports being
ordered.
Being 195mm [7.68'] wide, this panel is
often located next to the RT5707 reset
/ facilities panel, the two panels having a
combined width of 250mm [9.84'] - the
same as standard panels such as faders,
assignable's and up-stand TFT panels.
Connections
Analogue inputs are on a 25 pin female
D-Type, AES I/O is either on a 25 pin
female D-Type if balanced, or on BNC's
if unbalanced, depending on the type
ordered. See the Surface Rear Connector
Interface Pin-Outs section for wiring
detail.
The DK meter is powered from a single
DK PSU located within the control surface
and fed from the ancillary AC mains input
on the rear connector interface.

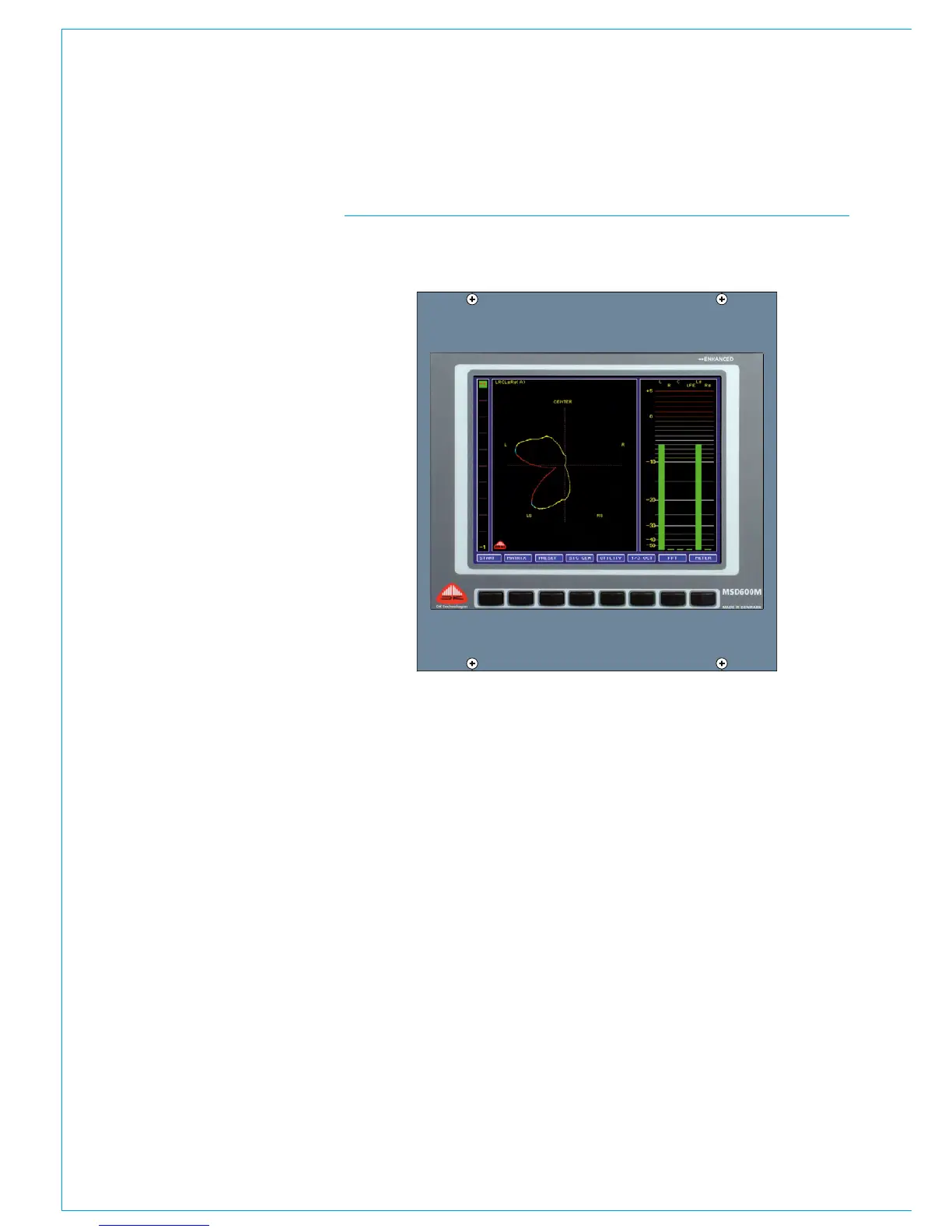

MU5799 - EXAMPLE OF DK MSD600++ METER
