TFT METER PANEL - MD5702
A number of TFT meter panels
can be fitted in the control surface
upstand to display input and output
audio metering and dynamics gain
reduction.
Each up-stand meter panel requires a
fader panel to carry out its processing
and therefore the maximum number of
up-stand meter panels fitted in a console
is the same as the number of fader panels
fitted.

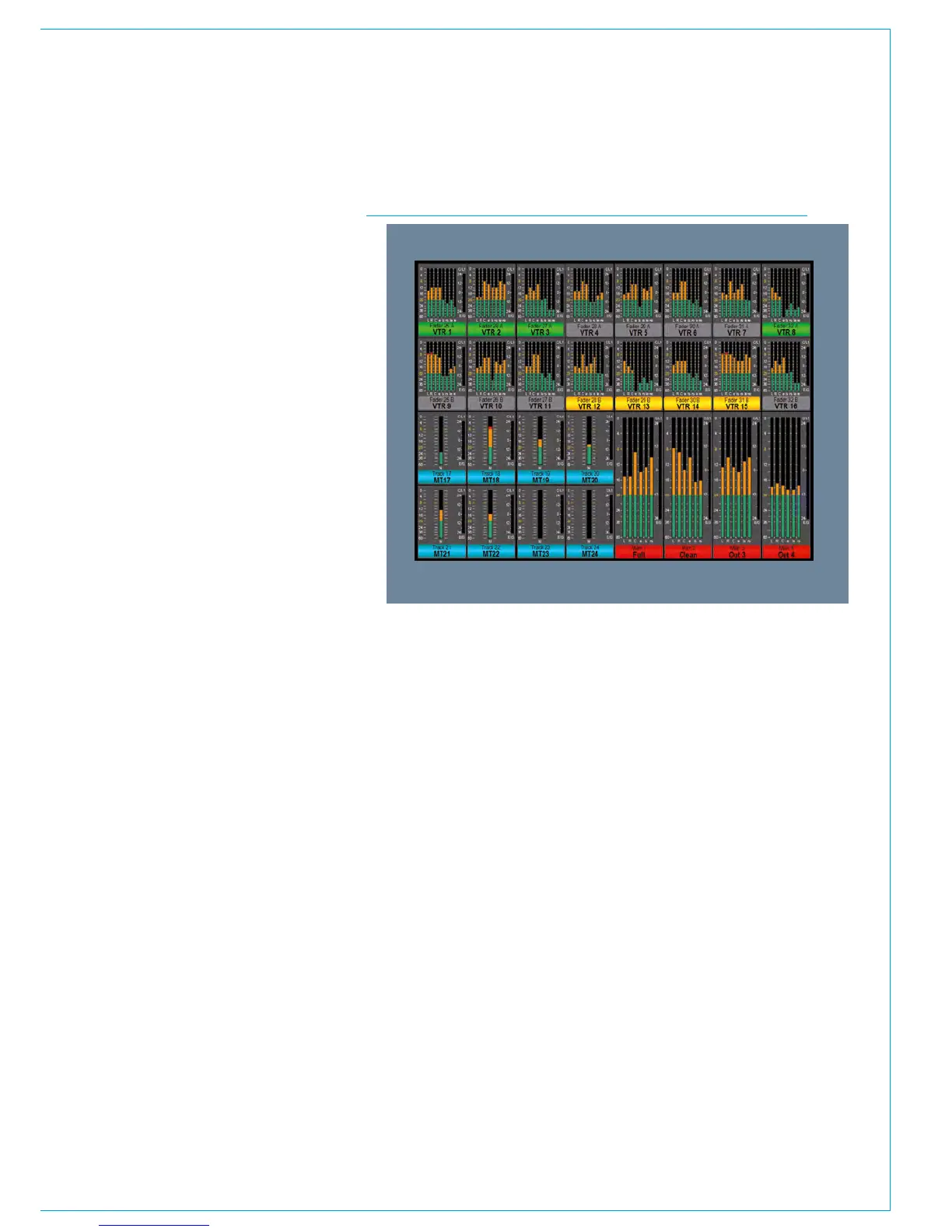

Each panel can display numerous meters,
the size and sources displayed are user
configurable from the Main Application.
TFT meter panels are the same width as
fader and assignable panels, and as such
are often configured to display 8 meters
across the width in the bottom row, to line
up with the faders beneath them and to
display fader input signals.
As well as all fader inputs and all bus
outputs, meters can be set to follow
monitoring, console meter selectors and
external inputs.
Connections
Each TFT meter panel receives its
data and power via a single (*NOT) DVI
connection, direct from a fader panel.
*Note, the connector type is DVI, but the
format is not DVI - This should not be
connected to anything other than Calrec
fader panels, doing so may damage the
equipment.
MD5702 - TFT METER PANEL
