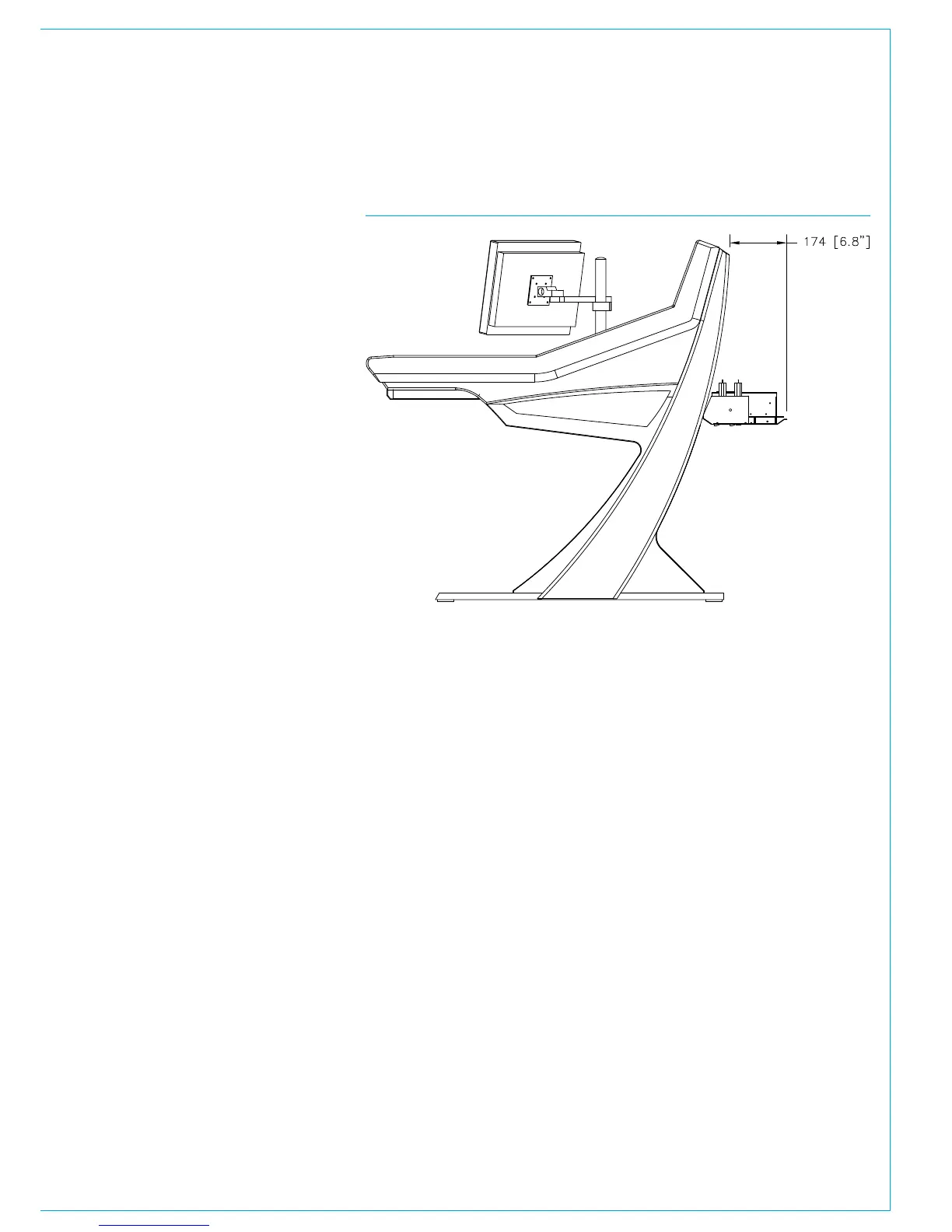

FIGURE 2 - ACCESS SPACE REQUIRED BEHIND SURFACEAccess to internal surface
components
The rear cover of the surface is hinged
to provide access to internal surface
components. The hinged panels are
fixed by screws along their upper edges
as shown above right. Once unscrewed
they can be carefully lowered. They will
support their own weight at the end of
their travel and require a certain amount of
space at the rear of the surface for access
as shown on the right. Alternatively, the
internal components can be accessed
from the front by removing control surface
panels.
