10 APOLLO Digital Broadcast Production Console Control Surface
SURFACE DIMENSIONS AND ASSEMBLY
The Apollo control surface can be
customised in terms of width and
fader count and can be provided with
various stand and trim options.
Desk-top mounting
The control surface can be supplied
without a floor stand to allow for desktop
mounting, or for mounting into a custom
stand or control room furniture. Figure 1
shows the end elevation with no stand
fitted.
Floor stand options
The standard height stand sits the surface
of the fader panels at a height of 740mm
[29.13'] above the floor. A reduced height
stand is also available, positioning the
surface of the fader panels at 700mm
[27.56'], the overall height being reduced
by 40mm [1.57']. Both versions of the
stand have inline fixing holes to allow
the stand to be secured to the floor
without affecting the footprint, typically
when being used in mobile or 'Outside
Broadcast' units. The standard height
stand fixing holes are 10mm in diameter.
The reduced height fixing holes are
8.5mm, designed to be used with M10
tapping screws, or alternatively adjustable
feet can be added here to bring the fader
height up to 720mm [28.35']

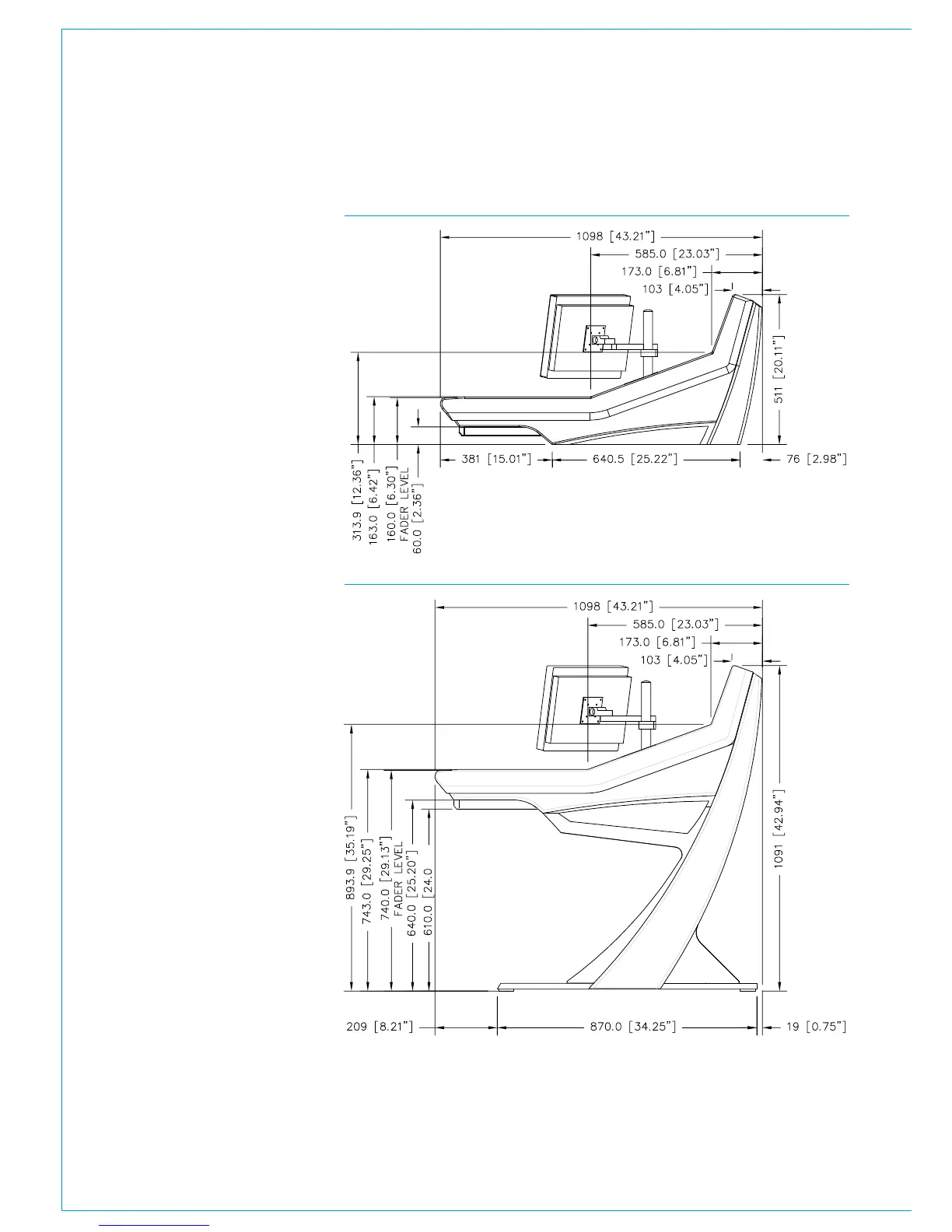

FIGURE 1 - END ELEVATION, NO FLOOR STAND FITTED
FIGURE 2 - END ELEVATION, STANDARD HEIGHT FLOOR STAND FITTED
