CALREC Putting Sound in the Picture 49

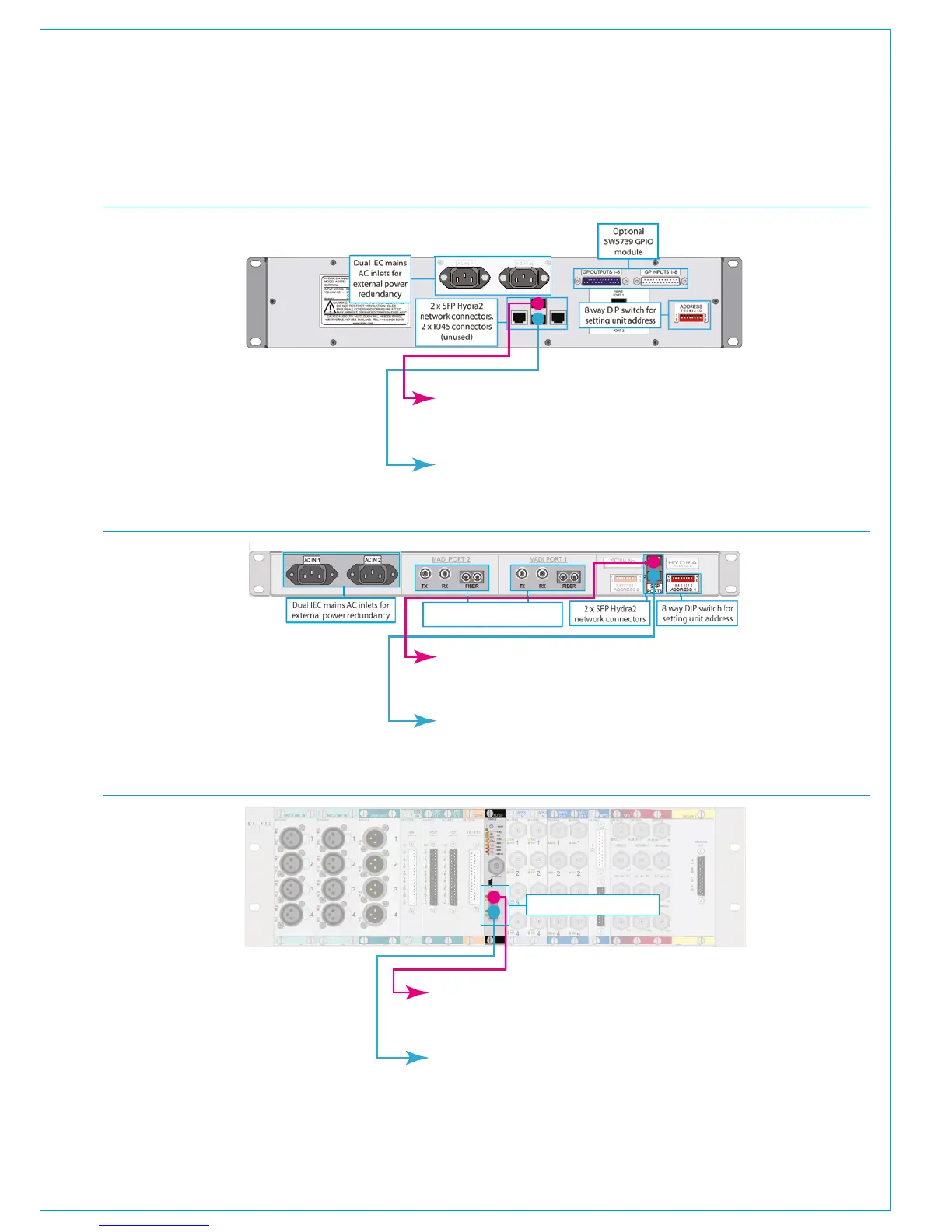

FIXED FORMAT (NON-MADI) HYDRA2 I/O, REAR INTERFACE
Fixed format I/O box port 1 to primary main or
expansion router port 1-16
Fixed format I/O box port 2 to secondary main
or expansion router port 1-16
2
1
Modular I/O box port 1 to primary main or
expansion router port 1-16
Modular I/O box port 2 to secondary main or
expansion router port 1-16
1
2 x SFP Hydra2 network connections
2
MODULAR HYDRA2 I/O, CONTROLLER CARD FRONT INTERFACE
2 x 64/56 channel MADI audio inputs &
outputs, copper and fiber
Fixed format MADI I/O box port 1 to primary
main or expansion router port 1-16
Fixed format MADI I/O box port 2 to
secondary main or expansion router port 1-16
2
1
FIXED FORMAT MADI HYDRA2 I/O, REAR INTERFACE
