Calrec Apollo - APOLLO GETTING SIGNALS INTO APOLLO

CALREC Putting Sound in the Picture 53
Function Pin
GPI 1
+ 1
- 34
GPI 2
+ 18
- 2
GPI 3
+ 35
- 19
GPI 4
+ 3
- 36
GPI 5
+ 20
- 4
GPI 6
+ 37
- 21
GPI 7
+ 5
- 38
GPI 8
+ 22
- 6
Supply +5 V 17
Supply 0 V 50
50 Pin Male D-Type - Wiring side of connecting cable
5034
18 33
171

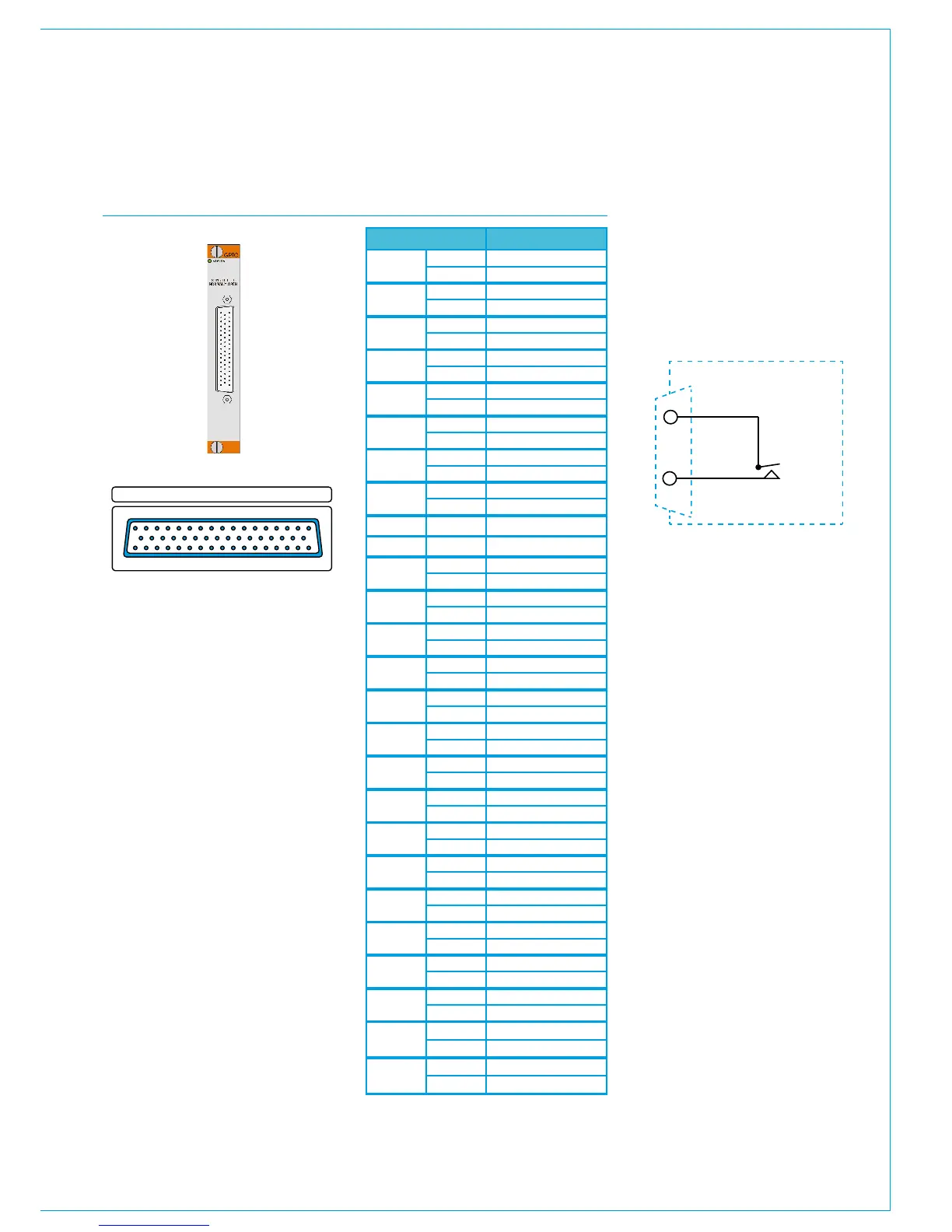

WY5859 - MODULAR GPIO, 8 IN + 16 CLOSURE OUTPUT
Normally Open
relay
Calrec GPIO card
NO+
NO-
• Closes when activated
Function Pin
GPI 1
+ 1
- 34
GPI 2
+ 18
- 2
GPI 3
+ 35
- 19
GPI 4
+ 3
- 36
GPI 5
+ 20
- 4
GPI 6
+ 37
- 21
GPI 7
+ 5
- 38
GPI 8
+ 22
- 6
Supply +5V 17
Supply 0V 50
GPO 1
NO+ 39
NO- 23
GPO 2
NO+ 7
NO- 40
GPO 3
NO+ 24
NO- 8
GPO 4
NO+ 41
NO- 25
GPO 5
NO+ 9
NO- 42
GPO 6
NO+ 26
NO- 10
GPO 7
NO+ 43
NO- 27
GPO 8
NO+ 11
NO- 44
GPO 9
NO+ 28
NO- 12
GPO 10
NO+ 45
NO- 29
GPO 11
NO+ 13
NO- 46
GPO 12
NO+ 30
NO- 14
GPO 13
NO+ 47
NO- 31
GPO 14
NO+ 15
NO- 48
GPO 15 NO+ 32
NO- 16
GPO 16 NO+ 49
NO- 33
