EPMP 2000 ACCESS POINT WITH INTELLIGENT FILTERING AND SYNC
INTERFACES

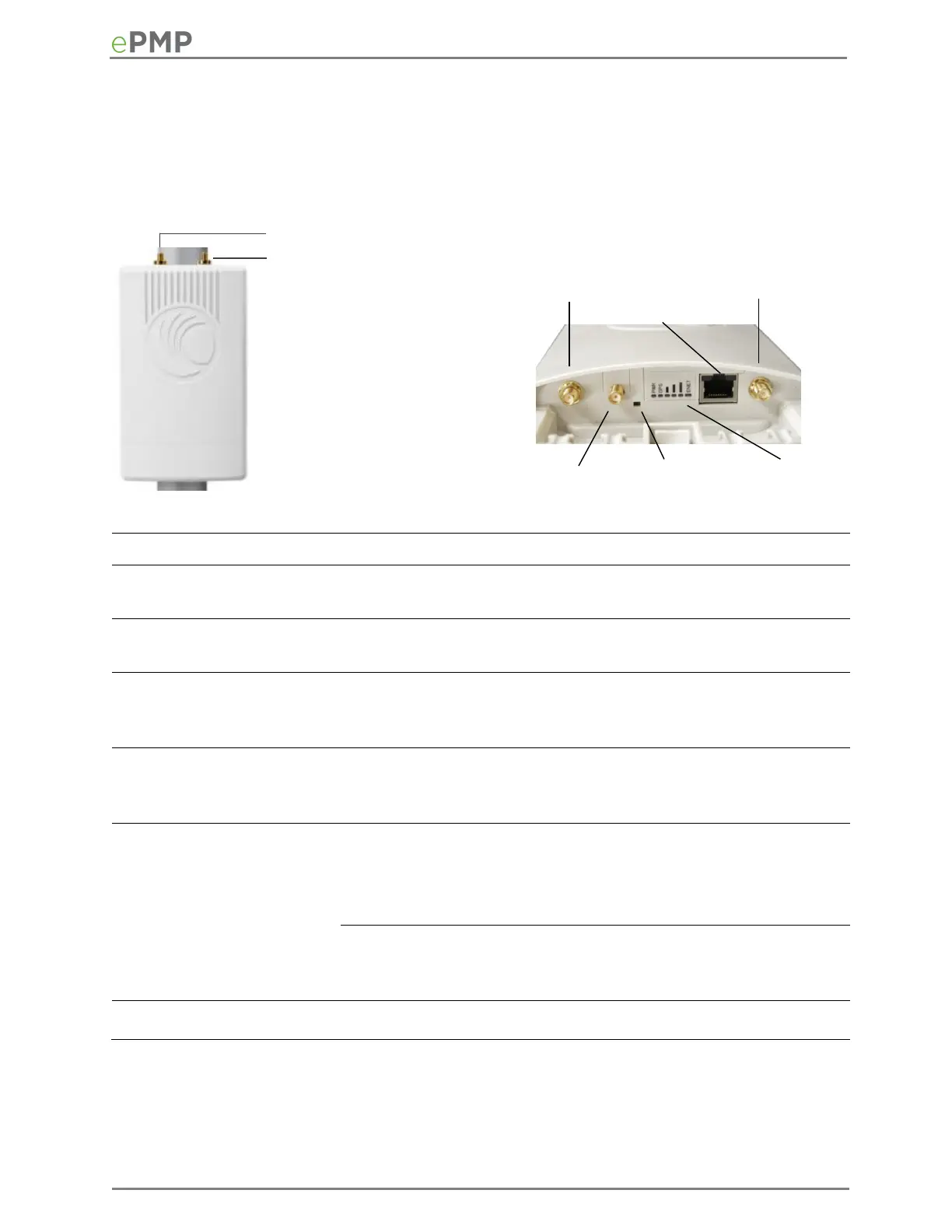

The ePMP 2000 Access Point with Intelligent Filtering and Sync interfaces are illustrated in Figure
9 and described in Table 4.
Figure 9 Connectorized Radio with Sync interfaces
Table 4 ePMP 2000 Access Point with Intelligent Filtering and Sync interfaces
Name
Connector
Interface
Description
Antenna
port H
RP-SMA,
female
Antenna,
H polarization
To/from H polarized antenna port
Antenna
port V
RP-SMA,
female
Antenna,
V polarization
To/from V polarized antenna port
Smart
Antenna
port H
RP-SMA,
female
Smart
Antenna, H
polarization
To/from H polarized Smart Antenna port
Smart
Antenna
port V
RP-SMA,
female
Smart
Antenna, V
polarization
To/from V polarized Smart Antenna port
Ethernet
RJ45
PoE input
802.3at-compliant
Please note: A non-802.3at-compliant power
supply may also be used to power the device.
The power supply must supply at least 20 Watts.
10/100/1000
Base-TX
Ethernet
Management and data
GPS
SMA, female
Antenna, GPS
To/from GPS antenna
Antenna port H
Smart
Antenna port
V
Antenna port V
Smart
Antenna port
H
Status LEDs
Reset Button
GPS
Ethernet
