CAMBIUM 600SSH DETAILS
Note
For connectorized module installations
requiring Gigabit (1000 Mbit/sec) Ethernet
surge suppression, utilize the following:
Mfr
Part
Description
L-COM
AL-CAT6JW
Outdoor 10/100/1000
Base-T CAT6 PoE
Compatible Lightning
Protector
L-COM
AL-
CAT6HPJW
Outdoor 10/100/1000
Base-T CAT6 PoE
Compatible Lightning
Protector – High
Power (protection
comparable to
600SSH)

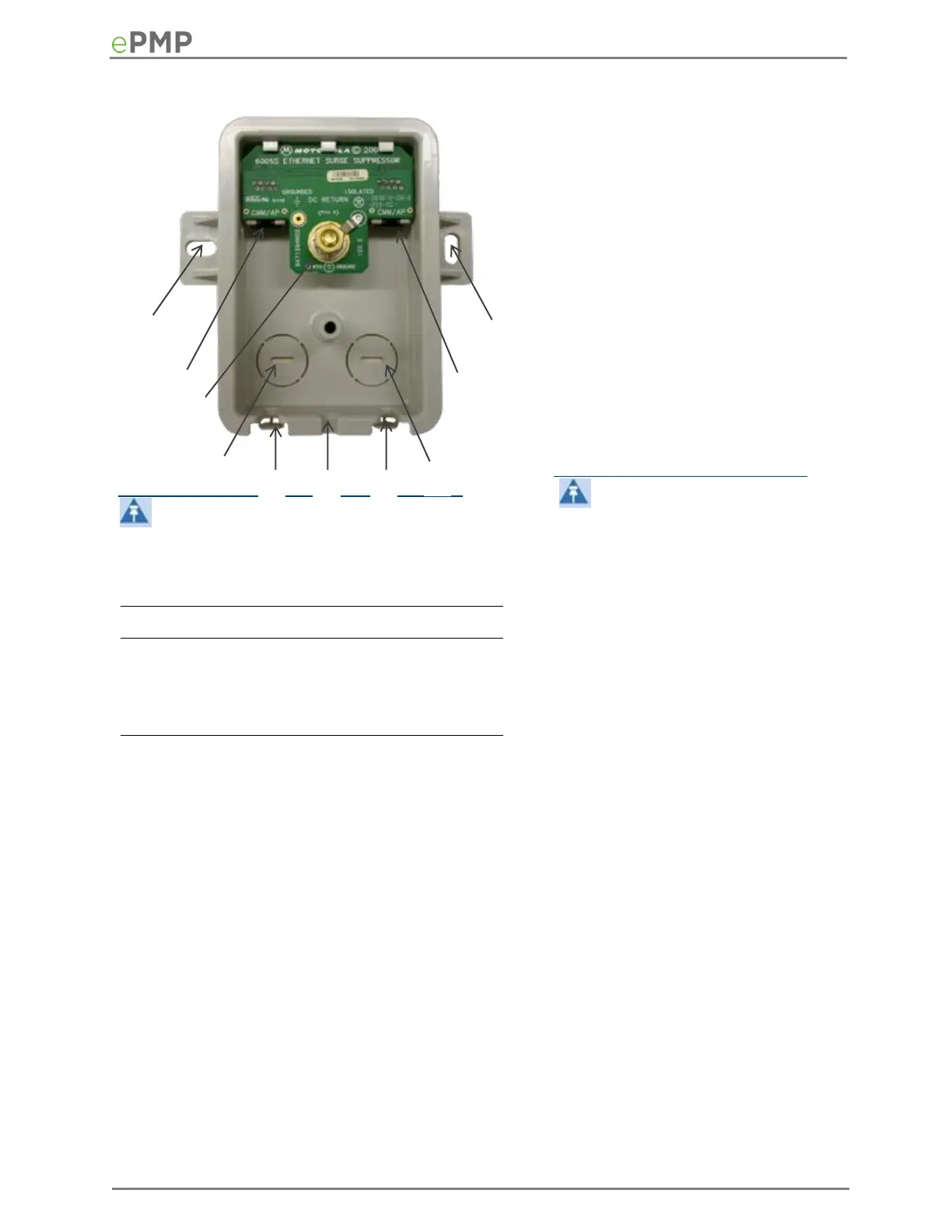

1
Holes—for mounting the Surge
Suppressor to a flat surface (such as an
outside wall). The distance between
centers is 4.25 inches (108 mm).
2
RJ-45 connectors—One side (neither
side is better than the other for this
purpose) connects to the product (AP,
SM, or cluster management module).
The other connects to the AC adaptor’s
Ethernet connector.
3
Ground post and washer—use heavy
gauge (10 AWG or 6 mm
2
) copper wire
for connection. Refer to local electrical
codes for exact specifications.
Note
The 600SSH surge suppressor is
shipped in the “isolated” position
(pin 4 isolated by 68V from protective
earth). If packet error issues occur
over the Ethernet link (verify by
pinging the device through the
600SSH), configure the 600SSH to
“grounded” position (by moving the
600SSH switch from “isolated” to
“ground”) to avoid ground loops that
may be present in the system.
4
Ground Cable Opening—route the 10
AWG (6 mm
2
) ground cable through
this opening.
5
CAT-5 Cable Knockouts—route the two
CAT-5 cables through these openings,
or alternatively through the Conduit
Knockouts.
6
Conduit Knockouts—on the back of the
case, near the bottom. Available for
installations where cable is routed
through building conduit.
1
2
3
6
5
4
5
6
2
1
