EPMP 1000 CONNECTORIZED RADIO INTERFACES

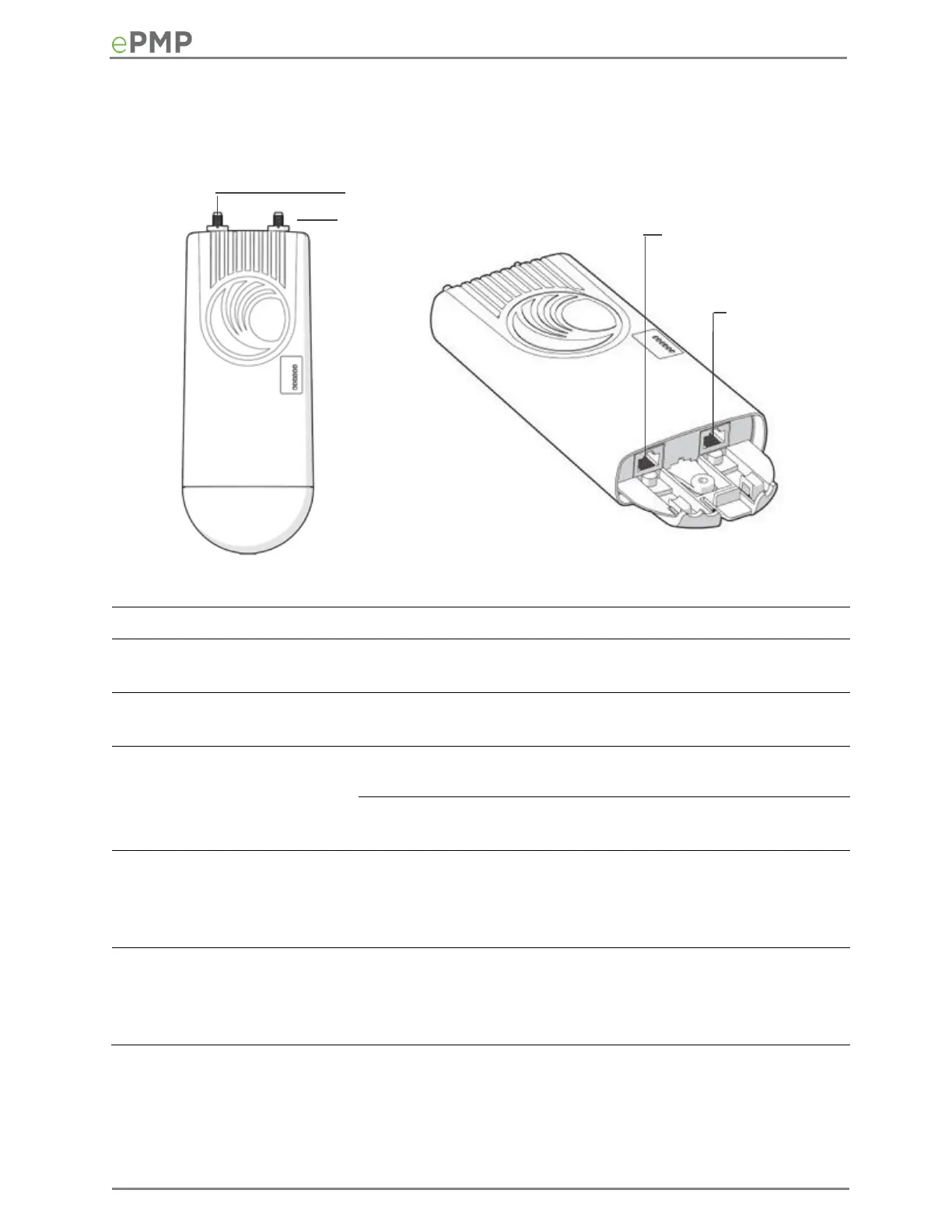

The connectorized radio with interfaces are illustrated in Figure 18 and described in Table 30.
Figure 18 Connectorized radio interfaces
Table 30 ePMP 1000 Connectorized radio interfaces
Name
Connector
Interface
Description
Antenna
port H
RP-SMA, female
Antenna,
H polarization
To/from H polarized antenna port
Antenna
port V
RP-SMA, female
Antenna,
V polarization
To/from V polarized antenna port
Primary
Ethernet
RJ45
PoE input
Proprietary power over Ethernet (PoE) twisted
pair (for powering via CMM3/CMM4)
10/100 Base-
TX Ethernet
Management and data
Auxiliary
Ethernet
(future
release)
RJ45
Cambium
propriety PoE
output, data
bridging
Propriety 30V PoE output for auxiliary devices
(not 802 3af standard Poe)
Reset
Button
Physical button
N/A
For resetting the radio and for resetting the
radio back to its factory default configuration,
see Using the device external reset button on
page 300.
Antenna port V
Antenna port H
AUXILLARY
ETHERNET
PRIMARY
ETHERNET
