Camus ProtoNode Start-up Guide

Page 16 of 87

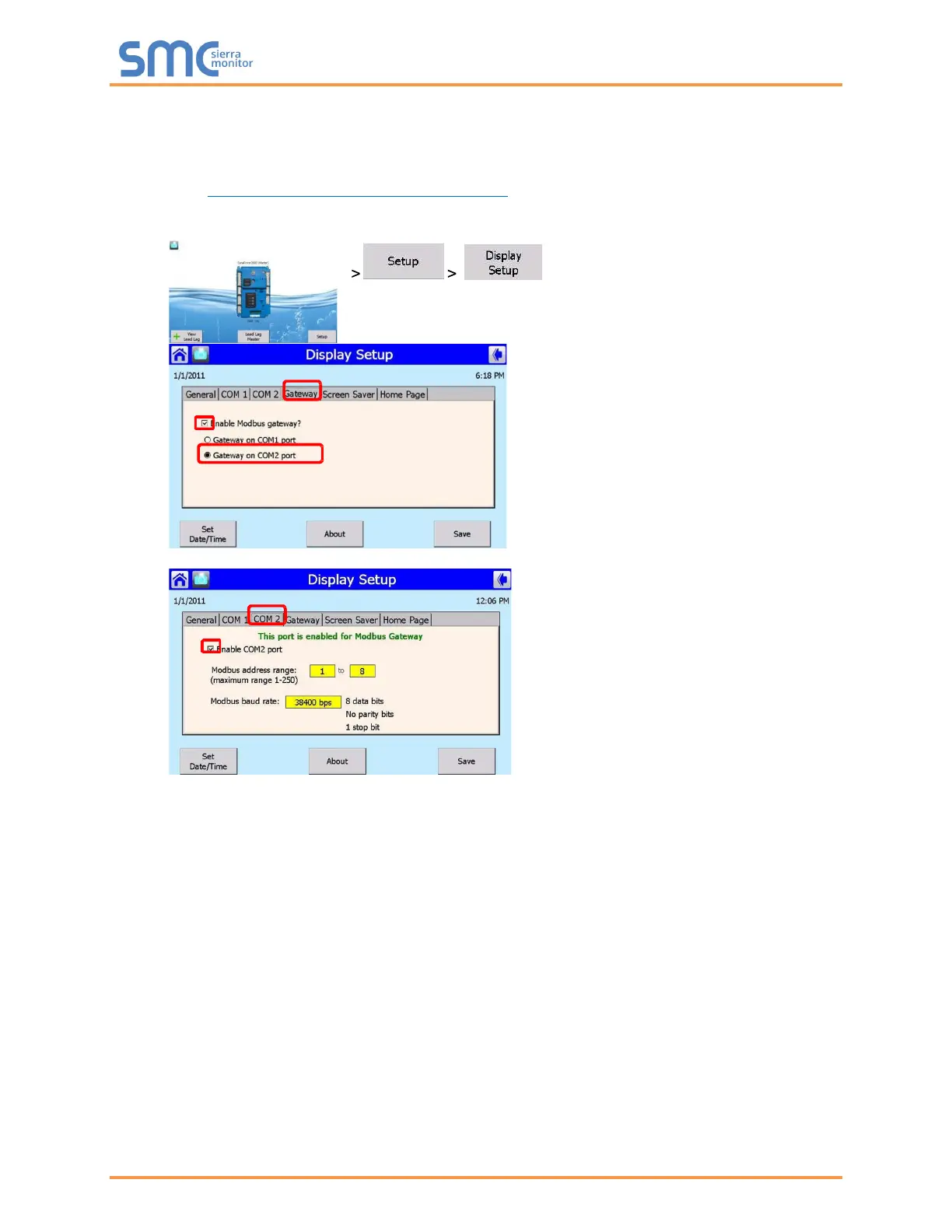

Activating Comm. Port 2 on Sola Display

> Select Gateway tab

Select Gateway tab

Check Enable Modbus

gateway

Select Gateway on COM2

port

Select COM2 tab

Check Enable COM2 port
