Camus ProtoNode Start-up Guide

Page 34 of 87

5.5 Ethernet Network: Setting IP Address for the Field Network

• Follow the steps outlined in Section 5.1 to access the ProtoNode Web Configurator.

• To access the FS-GUI, click on the “Diagnostics & Debugging” button in the bottom right corner of

the page.

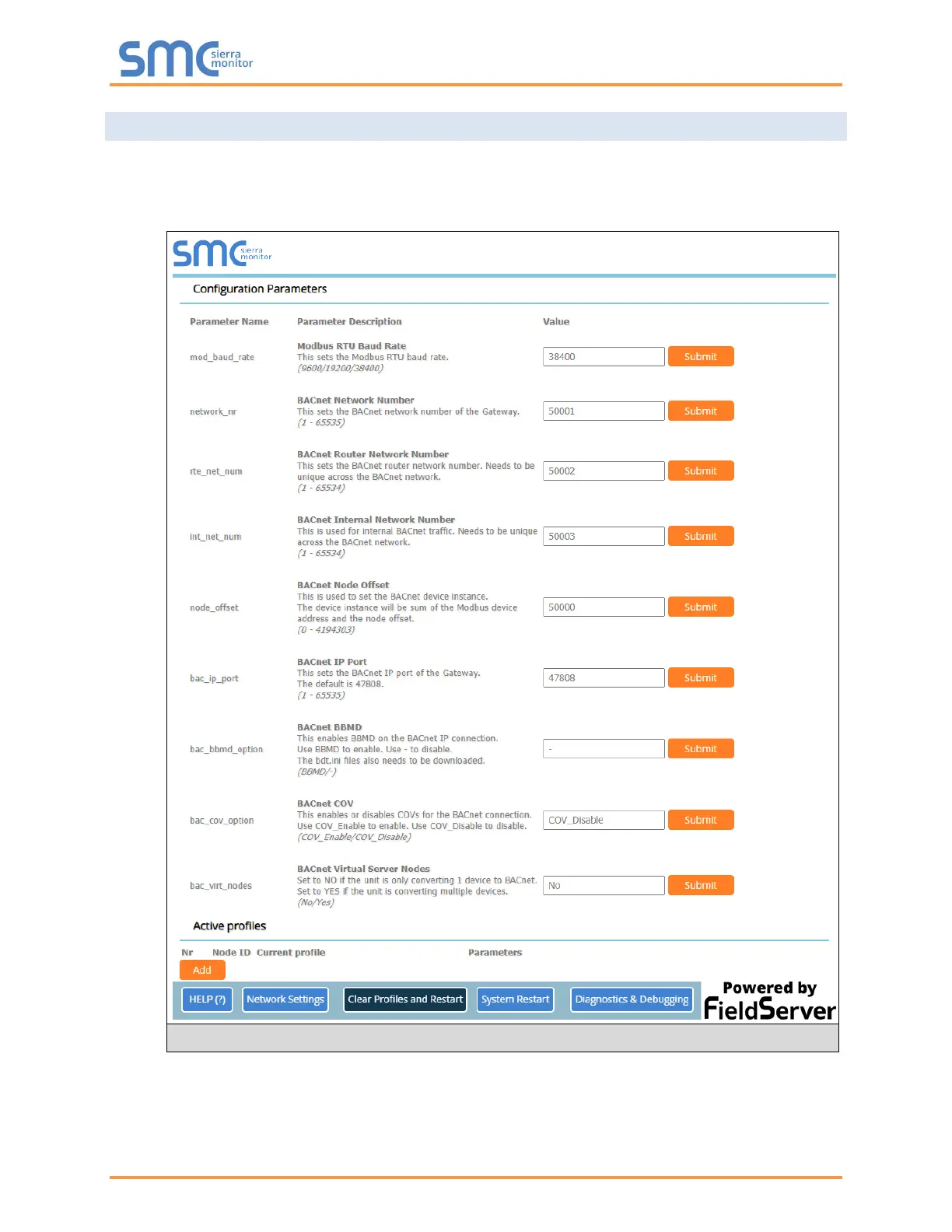

Figure 22: Web Configurator Screen with Active Profiles
