Camus ProtoNode Start-up Guide

Page 19 of 87

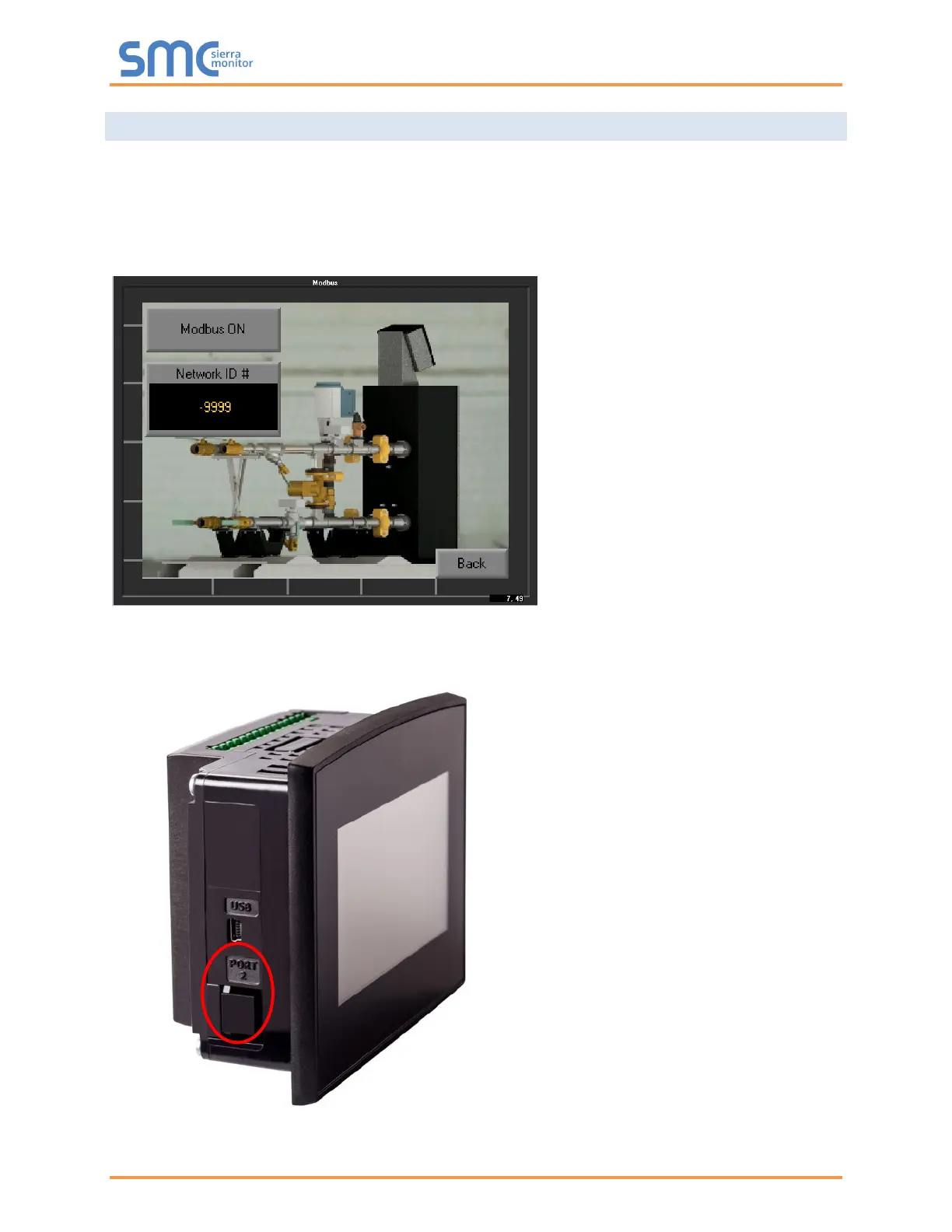

4.3 Connection from DynaFLO to ProtoNode

Start-up screen > Setup (password:3232) > Modbus:

Assign a network ID or slave address to DynaFLO’s controller by pressing <Network ID #> and

inserting a number. Make sure the <Modbus ON> is switched to “Modbus ON”.

When <Modbus ON/OFF> switch turns ON, it opens Port 2 on DynaFLO’s controller and sets

the controller as a Modbus Slave.
