4.8 LonWorks (FPC-N35): Wiring LonWorks Devices to the LonWorks Terminal

• Wire the LonWorks device network to the ProtoNode LonWorks Terminal.

o Use approved cable per the FT-10 installation guidelines

o LonWorks has no polarity.

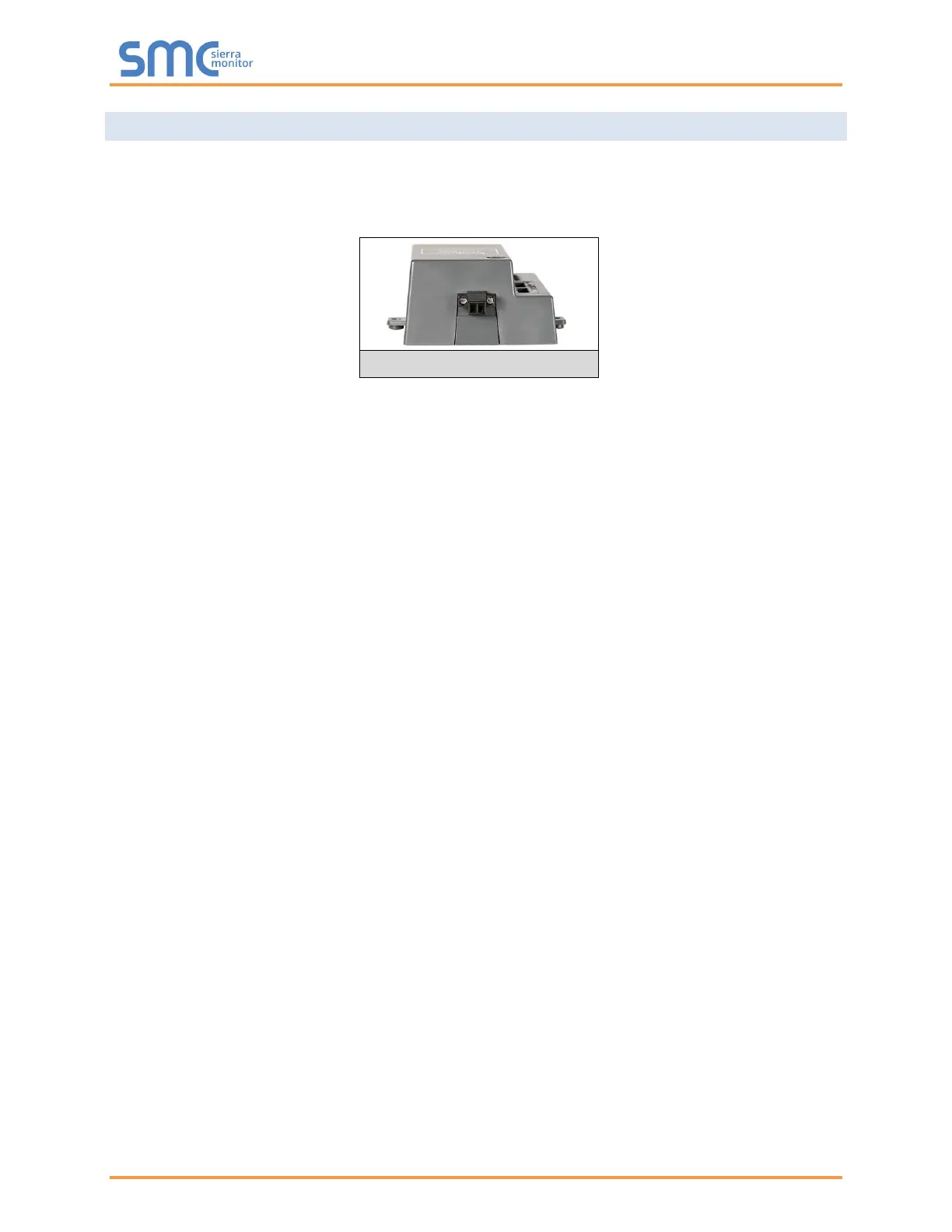

Figure 15: LonWorks Terminal
