Camus ProtoNode Start-up Guide

Page 24 of 87

4.6 Serial Device Connections to the ProtoNode

ProtoNode 6 Pin Phoenix connector:

• The 6 pin Phoenix connector is the same for ProtoNode FPC-N34 and FPC-N35 (LonWorks).

• Pins 1 through 3 are for RS-485 devices.

o Use standard grounding principles for RS-485 GND

• Pins 4 through 6 are for power. Do not connect power until Section 4.5.

Device Pins

ProtoNode Pin

Assignment

Pin RS-485 +

Pin 1

RS-485 +

Pin RS-485 -

Pin 2

RS-485 -

Pin GND

Pin 3

RS-485 GND

Power In (+)

Pin 4

V +

Power In (-)

Pin 5

V -

Frame Ground

Pin 6

FRAME GND

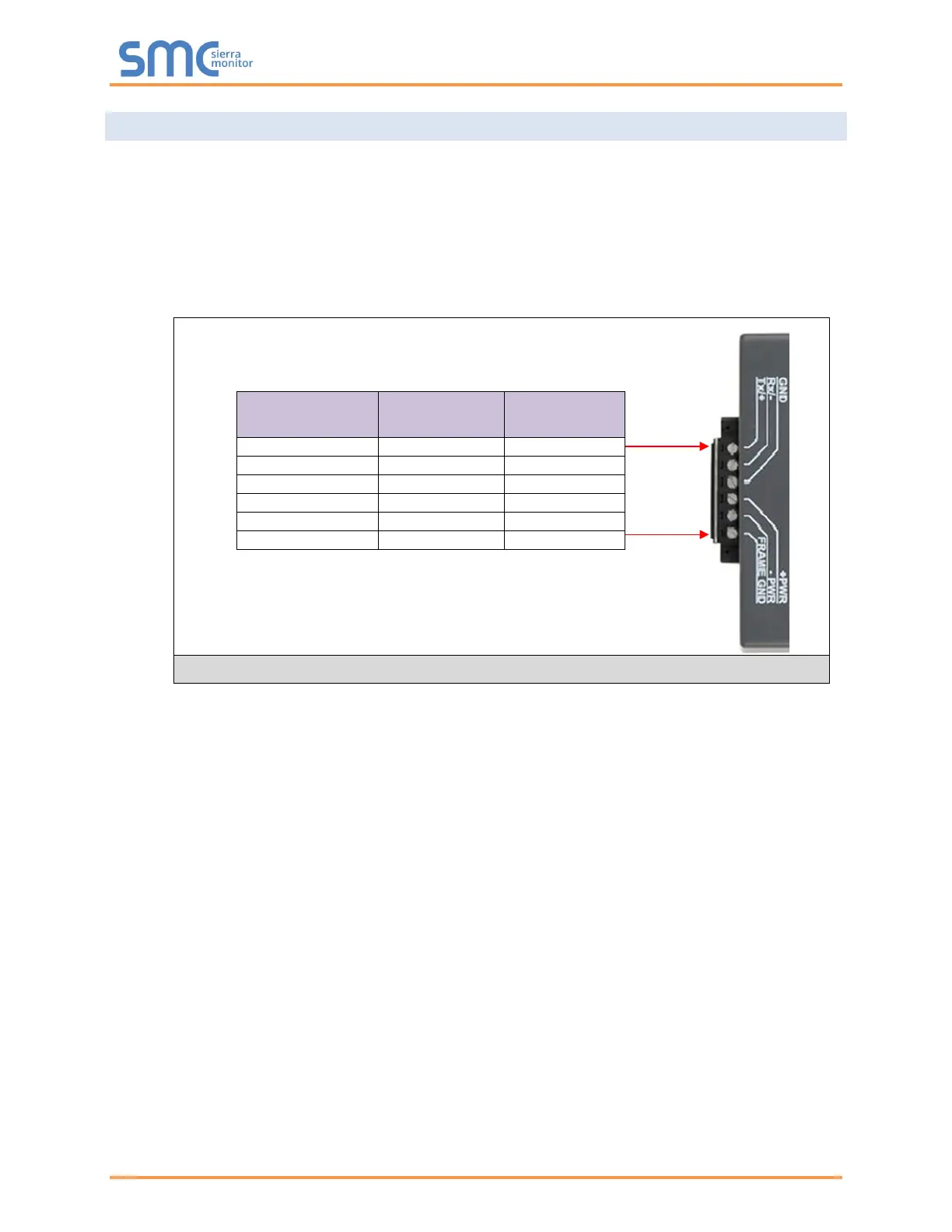

Figure 10: Device and Power Connections

. . .
