Camus ProtoNode Start-up Guide
Page 8 of 87
2 INTRODUCTION
2.1 ProtoNode Gateway
The ProtoNode is an external, high performance building automation multi-protocol gateway that is
preconfigured to communicate between Camus’ products (hereafter called “device”) connected to the
ProtoNode and configure them for BACnet MS/TP, BACnet/IP, Metasys
®2
N2 by JCI, Modbus TCP/IP or
LonWorks
®3
.
It is not necessary to download any configuration files to support the required applications. The ProtoNode
is pre-loaded with tested profiles/configurations for the supported devices.
WARNING: Only use screws supplied by MSA Safety in the holes found on the back of the unit
when attaching the optional DIN rail bracket. Use of any other screws may damage the unit.

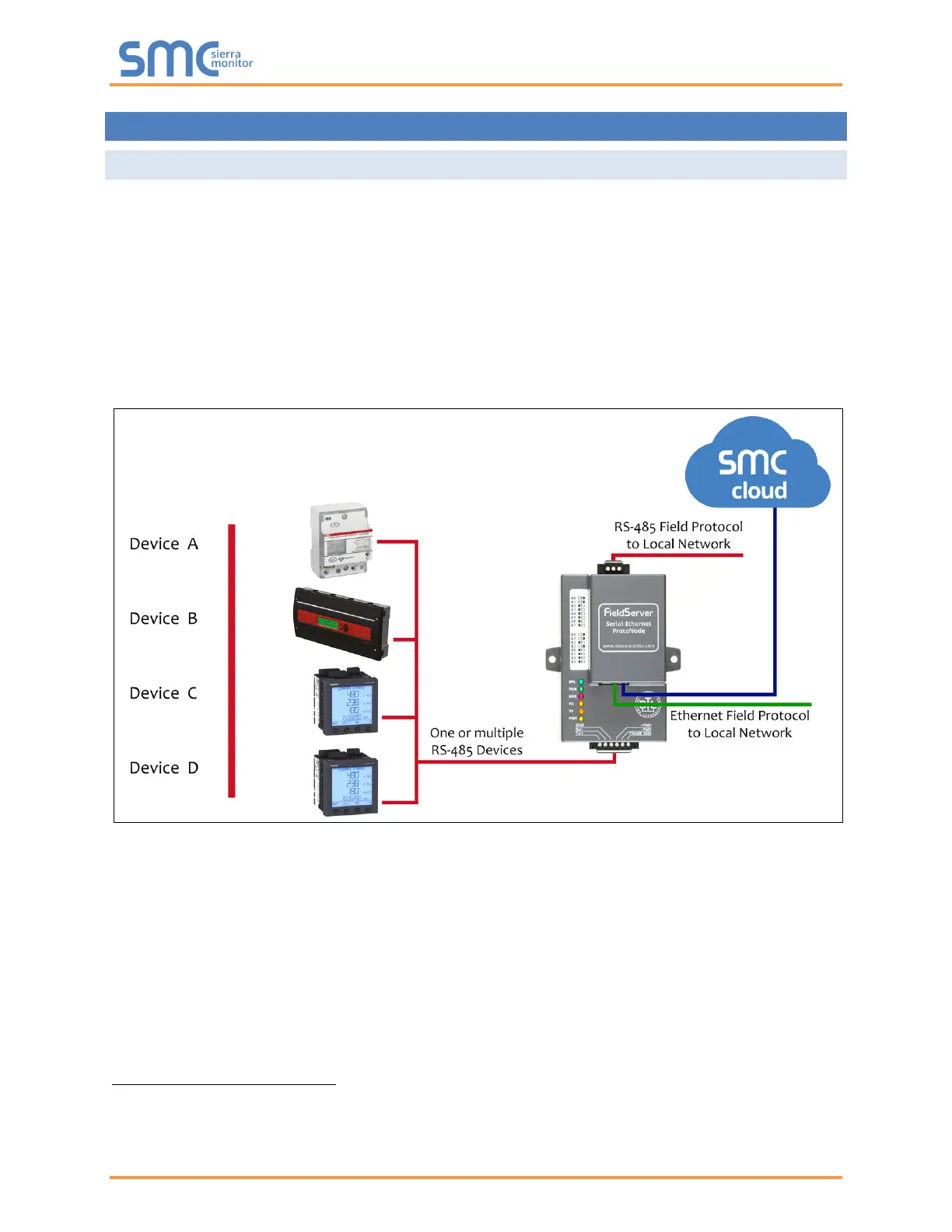

FPC-N34 Connectivity Diagram:
2
Metasys is a registered trademark of Johnson Controls Inc.
3
LonWorks is a registered trademark of Echelon Corporation
